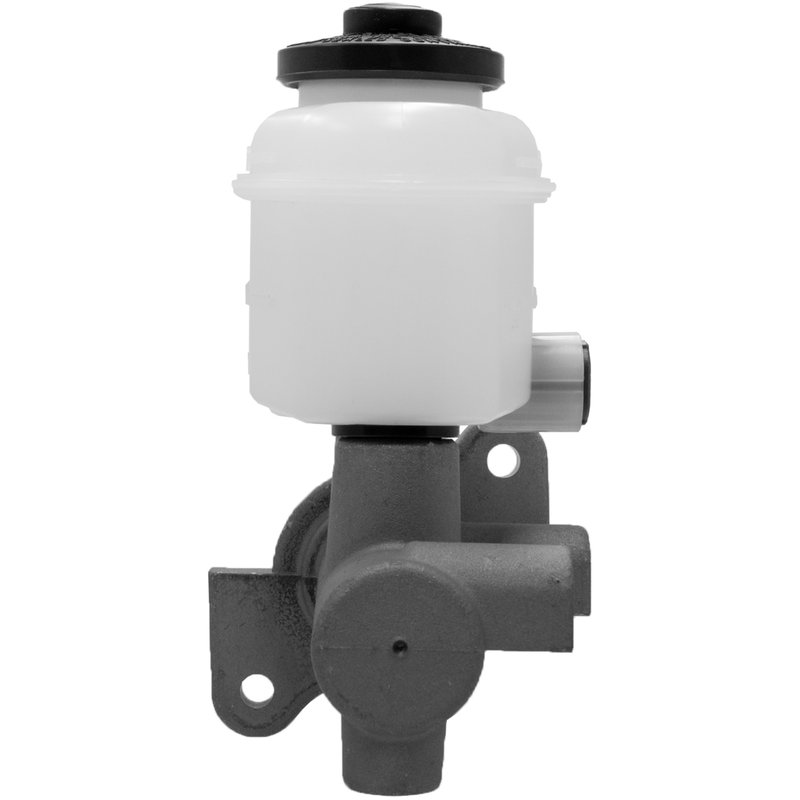

MPA Electrical NM55247 Brake Master Cylinder

Brake Master Cylinder for Toyota Sequoia

Restore consistent brake pedal feel with this new brake master cylinder from MPA Electrical. Built for 2001-2007 Toyota Sequoia models with front disc brakes, Part Number NM55247 is a standard replacement unit engineered to match OE specifications for dependable hydraulic performance.

MPA Electrical’s New with front disc brakes product line focuses on direct-fit brake hydraulic replacements that are tested against OE references for proper operation and consistent output. This brake master cylinder includes a reservoir, cap, and gasket/seal, and uses DOT 3 brake fluid.

Key Features

• Fits 2001-2007 Toyota Sequoia, N/A
• Part Number: NM55247
• Standard replacement brake master cylinder
• Aluminum master cylinder construction
• 0.9375 in. bore diameter
• 2 mounting holes with 0.355 in. mounting hole diameter
• Reservoir, cap, and gasket/seal included
• DOT 3 fluid type
• Brake booster, push rod, sensor, and pressure switch not included

Detailed Description

This brake master cylinder is built for Toyota Sequoia applications from 2001 through 2007 and is intended for vehicles with front disc brakes. The aluminum body helps provide a durable OE-style hydraulic replacement, while the 0.9375-inch bore diameter supports proper brake system pressure for normal pedal response. If you are replacing a leaking, worn, or internally bypassing master cylinder on a Toyota Sequoia, NM55247 provides the core hydraulic components needed for service.

This part cross-references Toyota OE numbers 472010C030 and 472010C031 for the same application.

What It Helps Address

• Low or inconsistent brake pedal feel
• External brake fluid leakage at the master cylinder
• Internal seal wear that affects hydraulic pressure
• Brake warning symptoms caused by master cylinder failure
• Restoration of braking performance after hydraulic wear

Installation Notes and Tips

Before installation, confirm the vehicle is a 2001-2007 Toyota Sequoia with front disc brakes and verify the master cylinder bore and mounting configuration match the original unit. Bench bleed the master cylinder before connecting brake lines, then bleed the full brake system with fresh DOT 3 fluid to remove trapped air. Inspect the brake booster, lines, and fittings for wear or contamination during replacement.

Quality Assurance

MPA Electrical tests each brake master cylinder against OE specifications using controlled processes and sample-based validation to support consistent braking performance out of the box. Part Number NM55247 is a new, standard replacement brake hydraulic component for Toyota Sequoia service.
