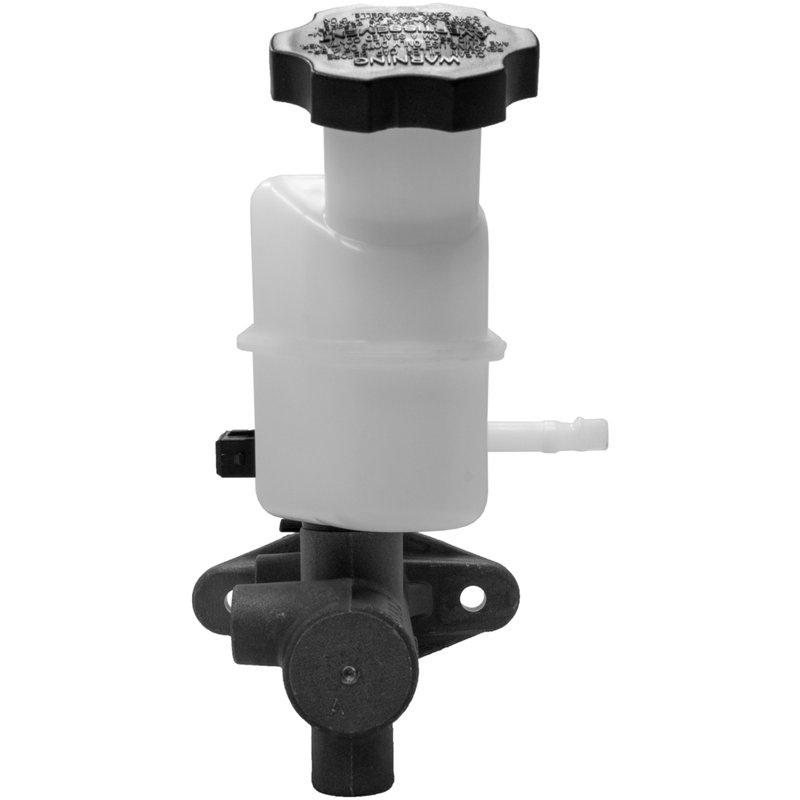

MPA Electrical NM55384 Brake Master Cylinder
Brake Master Cylinder for Hyundai Tucson and Kia Sportage
Restore hydraulic braking performance with this MPA Electrical brake master cylinder, part number NM55384. Built as a standard replacement for vehicles with front disc brakes, it is engineered for direct-fit service on select Hyundai Tucson and Kia Sportage applications.
Key Features
- Aluminum master cylinder body with a plastic reservoir
- 1-inch bore diameter for consistent brake pressure delivery
- Reservoir and cap included
- Uses DOT 3 or DOT 4 brake fluid
- Two mounting holes with 0.342-inch mounting hole diameter
- New condition, standard replacement grade
- Brake booster, push rod, sensor, gasket, seal, and mounting hardware not included
Product Details
MPA Electrical NM55384 is a brake master cylinder designed to restore braking response by replacing a worn or leaking hydraulic unit. The aluminum housing and integrated plastic reservoir support dependable fluid management, while the 1-inch bore helps maintain proper pedal feel and brake system pressure. This part number NM55384 is listed for 2005-2008 Hyundai Tucson and 2005-2007 Kia Sportage models with front disc brakes.
MPA Electrical’s New with front disc brakes product line focuses on OE-style replacement coverage for vehicles that use this brake configuration. Each unit is tested against OE specifications using controlled inspection and validation processes to help deliver consistent performance out of the box.
This part cross-references 585102E500 for the same application.
What It Helps Fix
- Low or spongy brake pedal feel
- Brake fluid leakage from the master cylinder
- Uneven hydraulic pressure in the brake system
- Delayed brake response during normal driving
- Internal master cylinder wear affecting braking performance
Installation Notes
Verify vehicle fitment by year, make, model, and front disc brake configuration before installation. Bench bleeding the master cylinder before mounting helps reduce trapped air in the hydraulic system. Use DOT 3 or DOT 4 brake fluid only, and confirm the brake lines, reservoir connections, and mounting points are clean and free of damage before final assembly.
Quality Assurance
MPA Electrical tests each brake master cylinder against OE specifications using proprietary processes and strict protocols to support consistent braking performance after installation.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM55384 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.342 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Fluid Type | Dot 3 or dot 4 |
| Product Condition | New |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Hyundai | Tucson | N/A | New with front disc brakes |
| 2007 | Hyundai | Tucson | N/A | New with front disc brakes |
| 2007 | Kia | Sportage | N/A | New with front disc brakes |
| 2006 | Hyundai | Tucson | N/A | New with front disc brakes |
| 2006 | Kia | Sportage | N/A | New with front disc brakes |
| 2005 | Hyundai | Tucson | N/A | New with front disc brakes |
| 2005 | Kia | Sportage | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
