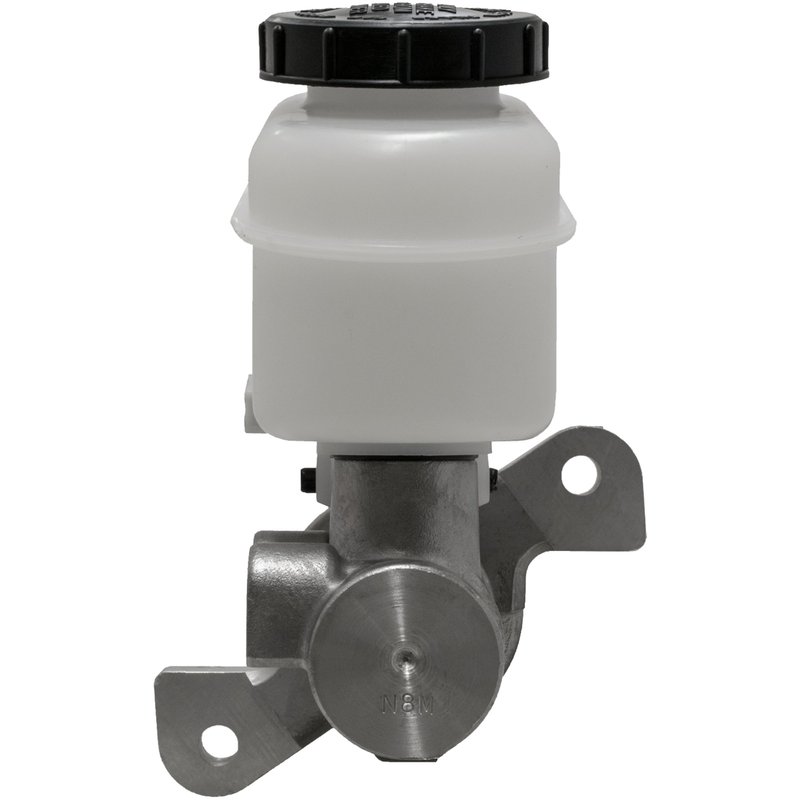

MPA Electrical NM55470 Brake Master Cylinder
Brake Master Cylinder for Subaru Legacy and Outback
Restore consistent brake pedal response with this MPA Electrical brake master cylinder, part number NM55470. It is a standard replacement unit for 2010-2014 Subaru Legacy and 2010-2014 Subaru Outback models with front disc brakes.
Built with an aluminum master cylinder body, plastic reservoir, and included cap, this replacement brake master cylinder is engineered to match OE specifications for dependable hydraulic performance. The bore diameter measures 0.937, and the unit uses a 2-hole mounting pattern with a 0.342 mounting hole diameter.
Key Features
- Fits 2010-2014 Subaru Legacy, front disc brakes
- Fits 2010-2014 Subaru Outback, front disc brakes
- Standard replacement brake master cylinder
- Aluminum master cylinder construction
- Plastic reservoir with reservoir included
- Master cylinder cap included
- 0.937 bore diameter
- 2 mounting holes with 0.342 mounting hole diameter
- New condition
Product Details
MPA Electrical NM55470 is a brake master cylinder for Subaru Legacy and Subaru Outback applications that require front disc brakes. MPA Electrical uses OE sample data and testing protocols to verify dimensional and performance consistency against original specifications, helping ensure proper hydraulic operation after installation. This part cross-references Monroe Shocks & Struts (e.g., 26401-AJ002) for the same application.
Common Issues This Part Can Address
- Low or inconsistent brake pedal feel
- Internal hydraulic leakage in the master cylinder
- Brake fluid loss at the master cylinder assembly
- Uneven or delayed brake pressure delivery
- Brake warning symptoms related to master cylinder wear
Installation Notes
Verify vehicle fitment by year, make, model, and brake configuration before installation. This unit does not include mounting hardware, gasket or seal, push rod, brake booster, sensor, or brake pressure switch. Bleed the brake system thoroughly after installation and inspect all hydraulic connections for leaks.
Quality Assurance
This MPA Electrical brake master cylinder is tested against OE specifications using controlled inspection and validation processes to support consistent braking performance out of the box.
| Brand | MPA Electrical |
|---|---|
| Part Number | NM55470 |
| Position | New with front disc brakes |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 0.937 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Sensor Included | No |
| Mounting Hole Diameter | 0.342 |
| Mounting Bracket Included | No |
| Brake Pressure Switch(s) Included | No |
| Product Condition | New |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Subaru | Legacy | N/A | New with front disc brakes | ||
| 2014 | Subaru | Outback | 3.6L | H6 | N/A | New with front disc brakes |
| 2013 | Subaru | Legacy | N/A | New with front disc brakes | ||
| 2013 | Subaru | Outback | N/A | New with front disc brakes | ||
| 2012 | Subaru | Legacy | N/A | New with front disc brakes | ||
| 2012 | Subaru | Outback | N/A | New with front disc brakes | ||
| 2011 | Subaru | Legacy | N/A | New with front disc brakes | ||
| 2011 | Subaru | Outback | N/A | New with front disc brakes | ||
| 2010 | Subaru | Legacy | N/A | New with front disc brakes | ||
| 2010 | Subaru | Outback | N/A | New with front disc brakes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
