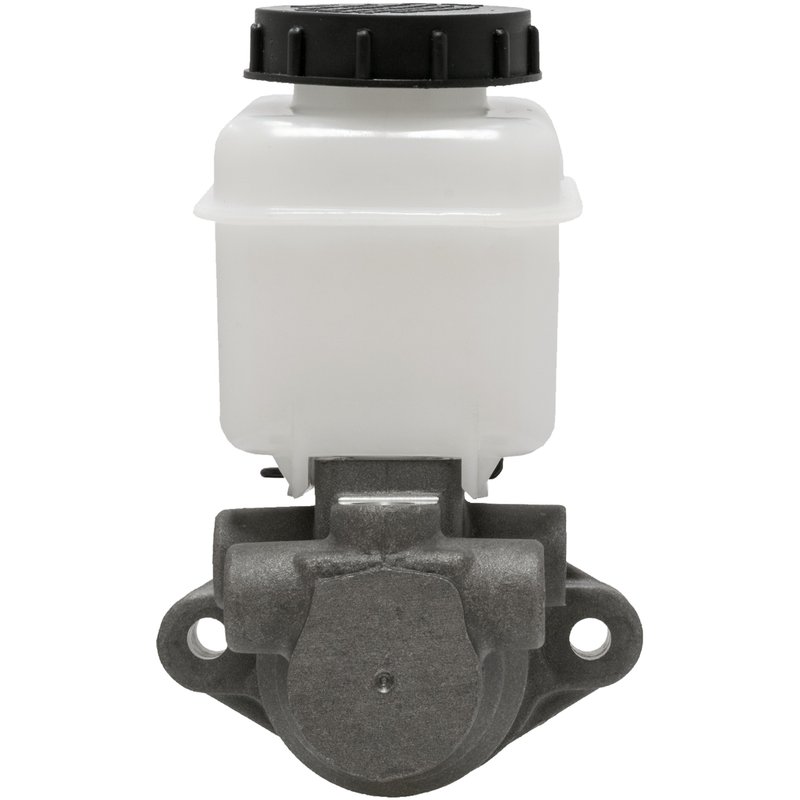

MPA Electrical NM55519 Brake Master Cylinder

Brake Master Cylinder for Suzuki XL-7 and Grand Vitara

Restore consistent brake pedal response with this new brake master cylinder from MPA Electrical. Built as a standard replacement for front disc brake applications, it is engineered for direct service on select Suzuki models and uses a 1.0 bore diameter with an aluminum body, plastic reservoir, and included cap and gasket/seal.

Fits 2002-2006 Suzuki XL-7, new with front disc brakes. Fits 2001 Suzuki Grand Vitara, new with front disc brakes. Part number NM55519 is a direct-fit brake hydraulic replacement for these applications.

Key Features

• Brand: MPA Electrical
• Part number: NM55519
• Brake master cylinder for brake hydraulic service
• Standard replacement grade
• Aluminum master cylinder construction
• Plastic reservoir included
• 1.0 bore diameter
• Uses DOT 3 brake fluid
• Master cylinder cap included
• Gasket or seal included
• New condition

Product Details

MPA Electrical NM55519 is a brake master cylinder built to restore hydraulic braking performance on select Suzuki vehicles with front disc brakes. The unit is tested against OE specifications using controlled inspection and validation processes based on OE sample references, helping ensure consistent brake feel and proper hydraulic operation out of the box. This part cross-references 5110052D30 for the same application.

The MPA Electrical New with front disc brakes product line focuses on replacement brake hydraulics for vehicles that need OE-style fit and function. For Suzuki XL-7 and Suzuki Grand Vitara applications, NM55519 provides the correct master cylinder configuration for service work where the original hydraulic unit has worn, leaked, or lost pedal firmness.

Common Issues This Part Can Address

• Low or sinking brake pedal
• External brake fluid leakage at the master cylinder
• Uneven or inconsistent hydraulic pressure
• Brake warning concerns related to master cylinder wear
• Reduced braking response after hydraulic component failure

Installation Notes and Tips

Verify vehicle fitment by year, make, model, and brake configuration before installation. This master cylinder includes the reservoir, cap, and gasket/seal, but does not include mounting hardware, brake booster, push rod, mounting bracket, or brake pressure switch. Use DOT 3 brake fluid and bleed the brake system thoroughly after installation to remove trapped air and restore pedal feel.

Quality Assurance

MPA Electrical manufactures this master cylinder as a new standard replacement part and validates it against OE specifications using proprietary testing protocols. That process supports consistent hydraulic performance for service on 2001 Suzuki Grand Vitara and 2002-2006 Suzuki XL-7 front disc brake applications.
