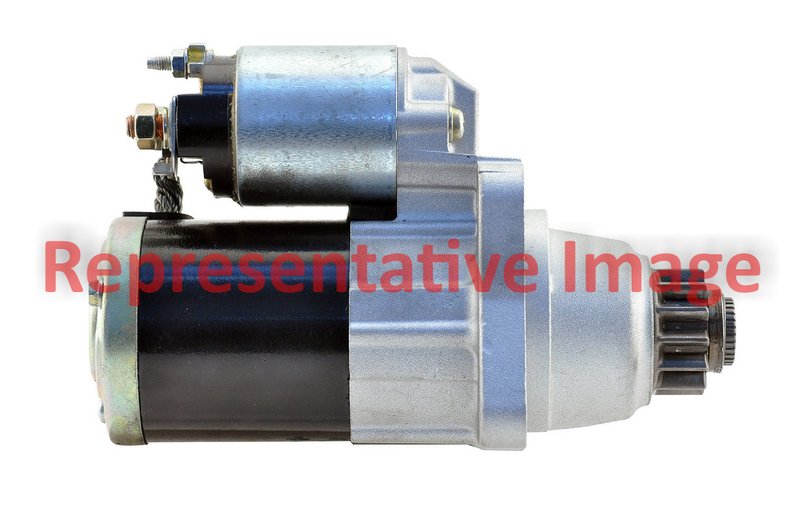

MPA Electrical S-80138 Starter

Remanufactured 24V Starter

This remanufactured MPA Electrical starter, part number S-80138, is built for heavy-duty charging and starting applications that require a 24V, 8.0kW unit with a 12-tooth clockwise pinion. It is a direct-fit replacement for a wide range of vocational trucks and older commercial platforms.

• Remanufactured starter for heavy-duty electrical starting systems
• 24V, 8.0kW output with 12-tooth clockwise pinion design
• Compatible with numerous Peterbilt, Mack, Western Star, White/GMC, Autocar, Ford, and Freightliner applications
• Fits applications noted as remanufactured OE-style replacements

Fitment Details

Compatible with Peterbilt 367, 2008-2011; Peterbilt 379, 1987-2007; Peterbilt 357, 1987-1999; Peterbilt 362, 1981-1999; Peterbilt 376, 1988-1999; Peterbilt 377, 1987-1999; Peterbilt 378, 1988-1999; Peterbilt 372, 1989-1994; Peterbilt 320, 1990; Peterbilt 375, 1987-1988; Peterbilt 349, 1986-1987; Peterbilt 352, 1981; Mack MR, 1981-2005; Mack RB, 1989-2005; Mack RD, 1981-2004; Mack CL, 1992-2003; Mack LE, 1995-2003; Mack FDM, 1993-1998; Mack MH, 1983-1993; Mack RM, 1984-1993; Mack RW, 1985-1993; Mack DM, 1981-1992; Mack DMM, 1981-1992; Mack R, 1981-1991; Mack RS, 1981-1989; Mack U, 1981-1989; Mack RL, 1984-1987; Mack WS, 1981-1985; Mack RWL, 1981-1984; Mack RWS, 1981-1984; Mack WL, 1982-1983; Mack F, 1981-1982; Western Star 3800, 1990-2001; Western Star 4800, 1981-2001; Western Star 4900, 1981-2001; Western Star 5900, 1989-2001; Western Star 5800, 1997-2000; White/GMC ACL, 1988-1995; White/GMC WCA, 1988-1995; White/GMC WCM, 1988-1995; White/GMC WHL, 1988-1995; White/GMC WIA, 1988-1995; White/GMC WHEB, 1991-1994; White/GMC WHR, 1989-1994; White/GMC WIM, 1988-1994; White/GMC ACM, 1988-1992; White/GMC WCL, 1988-1992; White/GMC WIL, 1988-1992; White/GMC WCS, 1988-1991; White/GMC WHM, 1991; White/GMC WHS, 1988-1990; White/GMC J9C0, 1988-1989; White/GMC WXLL, 1988-1989; White/GMC WHLB, 1992-1993; White/GMC WX, 1988-1993; White WCA, 1988; White WCL, 1983-1988; White WCM, 1981-1988; White WCS, 1981-1988; White WHS, 1981-1988; White WIA, 1988; White WIL, 1984-1988; White WIM, 1984-1988; White WX, 1981-1988; White WXLL, 1987-1988; White WHL, 1981-1987; White WIS, 1984-1986; White WHM, 1985; Autocar ACL, 1981-1988; Autocar AT, 1983-1988; Autocar DK, 1983-1988; Autocar DS, 1986; Autocar C / DC, 1981-1984; Autocar S, 1981; Freightliner FLC120, 1981; Freightliner FLT086, 1981; Ford A9513, 1996-1998; Ford AT9513, 1996-1998; Ford AT9522, 1997-1998.

Common Uses

• Restores cranking performance when the starter no longer engages reliably
• Addresses slow or weak engine starts in 24V systems
• Replaces a worn pinion or internal starter wear that causes starting failure
• Helps correct intermittent no-crank conditions in heavy-duty trucks

Installation Notes

Verify the 24V electrical system, 8.0kW rating, 12-tooth clockwise pinion, and application notes before installation. Confirm the vehicle model and year against the fitment list, especially on older commercial platforms with multiple starter configurations. Part number S-80138 should be matched to the existing unit or service information before replacement.

Quality Assurance

MPA Electrical supplies this unit as a remanufactured starter, and part number S-80138 is listed for a broad range of heavy-duty applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
