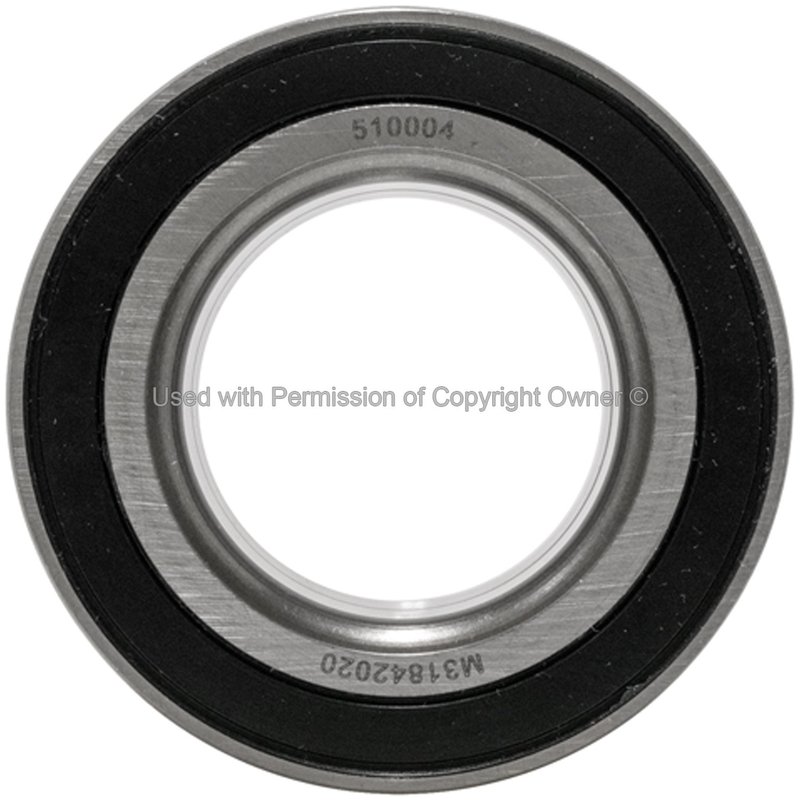

MPA Electrical WH510004 Wheel Bearing - Front

Front Wheel Bearing for Volkswagen Applications

MPA Electrical WH510004 is a new steel front wheel bearing built for select Volkswagen models from 1988-2009. It is a direct replacement for front-end service on Volkswagen Golf, Jetta, Passat, Corrado, Cabrio, Polo, and Derby applications where precise wheel support and smooth rotation are required.

Key Features

• New wheel bearing for front axle service
• Steel construction for durable bearing support
• Hub pilot diameter: 2.834 inch
• No gasket or seal included
• Not greaseable
• Quality-Built Hubs & Bearings product line
• Part number: WH510004

Detailed Description

WH510004 is engineered as a front wheel bearing for Volkswagen driveline and axle repair. It is listed for a wide range of Volkswagen Golf and Jetta models, along with Passat, Corrado, Cabrio, Polo, and Derby front applications. The steel bearing design supports consistent wheel rotation and proper hub fitment, while the 2.834-inch hub pilot diameter helps match the specified front hub interface. This part cross-references 2WF10004 and 19241132 for the same application.

What This Part Helps Address

• Front wheel noise caused by worn bearing surfaces
• Excessive wheel play or looseness at the hub
• Rough or uneven wheel rotation
• Vibration or humming from the front end
• Service replacement for worn Volkswagen front wheel bearings

Installation Notes and Fitment

Compatible with front wheel bearing service on Volkswagen models listed below. Follow the specified axle nut torque procedure for the exact vehicle application, since several fitments require staged tightening and re-torque steps.

• Fits 1995-2009 Volkswagen Derby, front. Wheel Bearing; Axle Nut Torque Spec: 195 ft-lbs / 265Nm.
• Fits 2003-2007 Volkswagen Polo, front. Wheel Bearing; Axle Nut Torque Spec: 195 ft-lbs / 265Nm.
• Fits 1995-2002 Volkswagen Cabrio, front. Wheel Bearing; Axle Nut Torque Spec: 195 ft-lbs / 265Nm.
• Fits 1999 Volkswagen Golf, front. Wheel Bearing; Axle Nut Torque Spec: 148 ft-lbs / 200Nm, loose and re-tighten to 37 ft-lbs, then turn additional 60 degrees.
• Fits 1989-1999 Volkswagen Jetta, front. Wheel Bearing; Axle Nut Torque Spec: Base Suspension 195 ft-lbs / 256Nm; Plus Suspension 148 ft-lbs / 200Nm, loosen, re-tighten to 37 ft-lbs / 50Nm and turn additional 30 degrees.
• Fits 1989-1998 Volkswagen Golf, front. Wheel Bearing; Axle Nut Torque Spec: Base Suspension 195 ft-lbs / 256Nm; Plus Suspension 148 ft-lbs / 200Nm, loosen, re-tighten to 37 ft-lbs / 50Nm and turn additional 30 degrees.
• Fits 1995-1997 Volkswagen Passat, front. Wheel Bearing; Axle Nut Torque Spec: Base Suspension 195 ft-lbs / 256Nm; Plus Suspension 66 ft-lbs / 90Nm, turn additional 45 degrees.
• Fits 1990-1995 Volkswagen Corrado, front. Wheel Bearing; Axle Nut Torque Spec: 195 ft-lbs / 265Nm.
• Fits 1990-1994 Volkswagen Passat, front. Wheel Bearing; Axle Nut Torque Spec: 195 ft-lbs / 265Nm.
• Fits 1988 Volkswagen Golf, front. From Chassis # 171J013201; Wheel Bearing; Axle Nut Torque Spec: Base Suspension 195 ft-lbs / 256Nm; Plus Suspension 148 ft-lbs / 200Nm, loosen, re-tighten to 37 ft-lbs / 50Nm and turn additional 30 degrees.
• Fits 1988 Volkswagen Jetta, front. From Chassis # 171J013201; Wheel Bearing; Axle Nut Torque Spec: Base Suspension 195 ft-lbs / 256Nm; Plus Suspension 148 ft-lbs / 200Nm, loosen, re-tighten to 37 ft-lbs / 50Nm and turn additional 30 degrees.

Quality Assurance

MPA Electrical supplies this wheel bearing as a new replacement component under its Quality-Built Hubs & Bearings line. Use the listed fitment, chassis notes, and torque specifications to confirm correct installation on Volkswagen Golf, Jetta, and related front-wheel applications.
