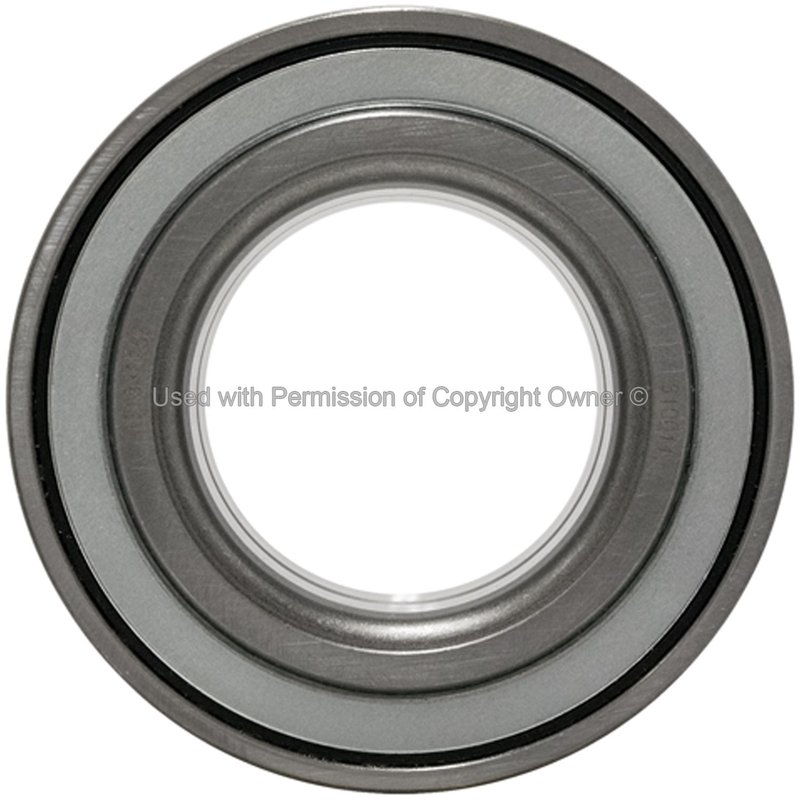

MPA Electrical WH510011 Wheel Bearing - Front or Rear

Brand MPA Electrical WH510011
Position Front and Rear
Gasket or Seal Included No
Greaseable No
Hub Pilot Diameter Inch 3.502
Material Steel
Product Condition New
Fits Acura, Honda, Lexus, and Toyota · 41 vehicles

New steel construction. Built for dependable wheel bearing performance.

Quality-built hub and bearing. Engineered for consistent driveline support.

Cross-references 2WR10011 and 19241136 for the same application. See all 2.

$47.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $47.32
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing options

Wheel Bearing for Lexus, Toyota, Acura, and Honda

MPA Electrical WH510011 is a new steel wheel bearing built for rear and front applications across select Lexus, Toyota, Acura, and Honda vehicles. It is a Quality-Built Hubs & Bearings component with a 3.502-inch hub pilot diameter and no greaseable fitting or seal included.

Key Features

  • New wheel bearing for driveline and axle service
  • Steel construction for durable hub support
  • 3.502-inch hub pilot diameter
  • No greaseable fitting
  • No gasket or seal included
  • Cross-references Monroe Shocks & Struts 172286 and 182286 for the same application

Fitment and Application Details

Compatible with rear wheel bearing service on 1998-2007 Lexus LX470 and 1998-2007 Toyota Land Cruiser. Fits 1996-2004 Acura RL, front; 2003-2004 Honda Pilot, front; 2001-2002 Acura MDX, front; 1996-1998 Acura TL, front; 1992-1995 Acura Legend, front; and 1991 Acura Legend, front. MPA Electrical WH510011 is listed for both front and rear positions depending on vehicle application.

What This Wheel Bearing Helps Address

  • Wheel bearing noise from worn internal rolling surfaces
  • Excess hub play or looseness at the wheel assembly
  • Rough rotation or vibration from a failing bearing
  • Service replacement for front or rear hub-bearing maintenance
  • Restoration of proper wheel support on Lexus LX470, Toyota Land Cruiser, Acura, and Honda applications

Installation Notes and Tips

Verify the vehicle position before installation, since WH510011 is used on both front and rear applications. Follow the listed axle nut torque specification for the exact vehicle, including 181 ft-lbs / 245Nm on several Acura and Honda front applications and 242 ft-lbs / 328Nm or 180 ft-lbs / 244Nm on Acura Legend front applications. Inspect related hub and axle components during service, and confirm the hub pilot diameter matches the application.

Quality Assurance

MPA Electrical supplies this part as a new Quality-Built Hubs & Bearings wheel bearing. The steel construction and application-specific fitment support accurate replacement service for the listed Lexus, Toyota, Acura, and Honda models.

Related reading

This part fits 41 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2007LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2007ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2006LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2006ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2005LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2005ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2004AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2004HondaPilot3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2004LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2004ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2003AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2003HondaPilot3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2003LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2003ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2002AcuraMDX3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2002AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2002LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2002ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2001AcuraMDX3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2001AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2001LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2001ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2000AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
2000LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
2000ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
1999AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1999LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
1999ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
1998AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1998AcuraTL3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1998LexusLX4704.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
1998ToyotaLand Cruiser4.7LV8RearWheel Bearing; Axle Nut Torque Spec: N/R
1997AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1997AcuraTL3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1996AcuraRL3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1996AcuraTL3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm
1995AcuraLegend3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 242 ft-lbs / 328Nm
1994AcuraLegend3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 242 ft-lbs / 328Nm
1993AcuraLegend3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 242 ft-lbs / 328Nm
1992AcuraLegend3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 242 ft-lbs / 328Nm
1991AcuraLegend3.2LV6FrontWheel Bearing; Axle Nut Torque Spec: 180 ft-lbs / 244Nm
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
2WR1001119241136
