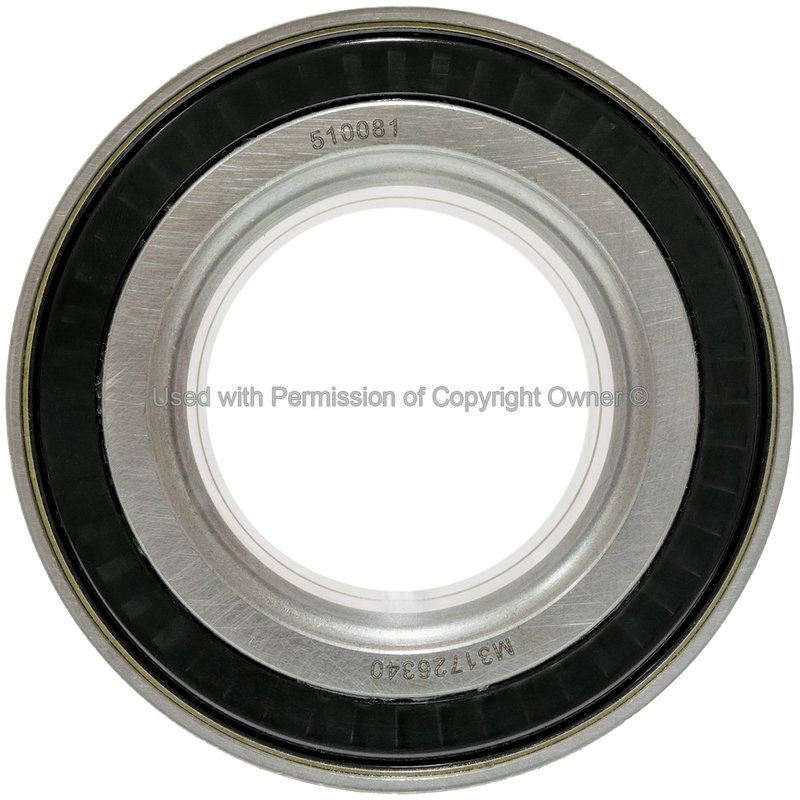

MPA Electrical WH510081 Wheel Bearing - Front

OE Quality 60-Day Returns

MPA Electrical WH510081 Wheel Bearing - Front

Brand	MPA Electrical WH510081
Position	Front
Anti Lock Braking System Type	Tone ring
Gasket or Seal Included	No
Greaseable	No
Hub Pilot Diameter Inch	3.545
Material	Steel
Product Condition	New
Fits	BMW · 57 vehicles

Quality-built hub and bearing. New steel construction for dependable wheel support.

Tone ring included. Supports ABS sensing in the bearing assembly.

Wheel bearing replacement for driveline and axle applications.

Cross-references 31 20 3 450 600, 31 21 3 413 946 and 31 22 6 751 978 for the same application. See all 5.

$45.66Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Wheel Bearing options

Front Wheel Bearing for BMW xDrive Applications

MPA Electrical WH510081 is a new front wheel bearing built for BMW xDrive driveline applications that use a tone ring ABS setup. It is a steel hub-and-bearing assembly from the Quality-Built Hubs & Bearings line, made for direct replacement service on select BMW 3 Series, 5 Series, X3, and X5 models.

Compatible With BMW 328i xDrive, 335i xDrive, 528i xDrive, 535i xDrive, 328xi, 335xi, 528xi, 535xi, 525xi, 530xi, 325xi, 330xi, X3, and X5 front applications. Part number WH510081 is also referenced by OE-style interchange numbers used on the same front wheel bearing applications.

Key Features

New front wheel bearing assembly
Steel construction for strength and durability
Integrated tone ring ABS type
Hub pilot diameter: 3.545 inch
No gasket or seal included
Non-greaseable design
Built for BMW xDrive front axle service

Product Details

WH510081 is a front wheel bearing for BMW vehicles that require a tone ring ABS configuration. The steel construction supports consistent hub and bearing service in front-wheel driveline applications, including BMW 328i xDrive and 335i xDrive, as well as 528i xDrive, 535i xDrive, X3, and X5 models. This part number, WH510081, is intended for direct replacement use where the original front bearing assembly matches the listed fitment and hub pilot diameter.

This part cross-references OE-style numbers 31 20 3 450 600 and 31 21 3 413 946 for the same application.

Common Problems This Part Can Address

Front wheel bearing noise or growling
Excessive front hub play or looseness
ABS tone ring-related wheel speed signal issues
Vibration from a worn front bearing assembly
Uneven wheel rotation caused by bearing wear

Installation Notes and Tips

Fits 2012-2013 BMW 328i xDrive, front.
Fits 2012-2013 BMW 335i xDrive, front.
Fits 2009-2011 BMW 328i xDrive, front.
Fits 2009-2011 BMW 335i xDrive, front.
Fits 2009-2010 BMW 528i xDrive, front.
Fits 2009-2010 BMW 535i xDrive, front.
Fits 2004-2010 BMW X3, front.
Fits 2007-2008 BMW 328xi, front.
Fits 2007-2008 BMW 335xi, front.
Fits 2008 BMW 528xi, front.
Fits 2008 BMW 535xi, front.
Fits 2006-2007 BMW 525xi, front.
Fits 2006-2007 BMW 530xi, front.
Fits 2006 BMW 325xi, front.
Fits 2006 BMW 330xi, front.
Fits 2001-2006 BMW X5, front.
Follow the OE service manual for axle nut torque specifications during installation.
Verify ABS tone ring and hub dimensions against the original part before installation.

Quality Assurance

MPA Electrical supplies this part as a new Quality-Built Hubs & Bearings component for BMW front wheel bearing replacement service. The WH510081 part number is listed with OE-style interchange references to support accurate matching for the specified BMW 3 Series, 5 Series, X3, and X5 applications.

This part fits 57 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Body Type	Liters	Cylinders	Position	Notes
2013	BMW	328i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013	BMW	335i xDrive	Coupe	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012	BMW	328i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012	BMW	335i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2011	BMW	328i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2011	BMW	335i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	328i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	335i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	528i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	535i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2010	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	328i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	335i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	528i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	535i xDrive	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2009	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2008	BMW	328xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2008	BMW	335xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2008	BMW	528xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2008	BMW	535xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: N/R
2008	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2008	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	328xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	335xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	525xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	530xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2007	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	325xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	330xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	525xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	530xi	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	X5	—	4.8L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2006	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2005	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2005	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2005	BMW	X5	—	4.8L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2005	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2005	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2004	BMW	X3	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2004	BMW	X3	—	2.5L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2004	BMW	X5	—	4.8L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2004	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2004	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2003	BMW	X5	—	4.6L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2003	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2003	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2002	BMW	X5	—	4.6L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2002	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2002	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2001	BMW	X5	—	4.4L	V8	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
2001	BMW	X5	—	3.0L	L6	Front	Wheel Bearing; Axle Nut Torque Spec: 310 ft-lbs / 420Nm
No rows match your filter.

Directly replaces or cross-references 5 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

31 20 3 450 60031 21 3 413 94631 22 6 751 97831 22 6 758 23331 22 6 783 913
