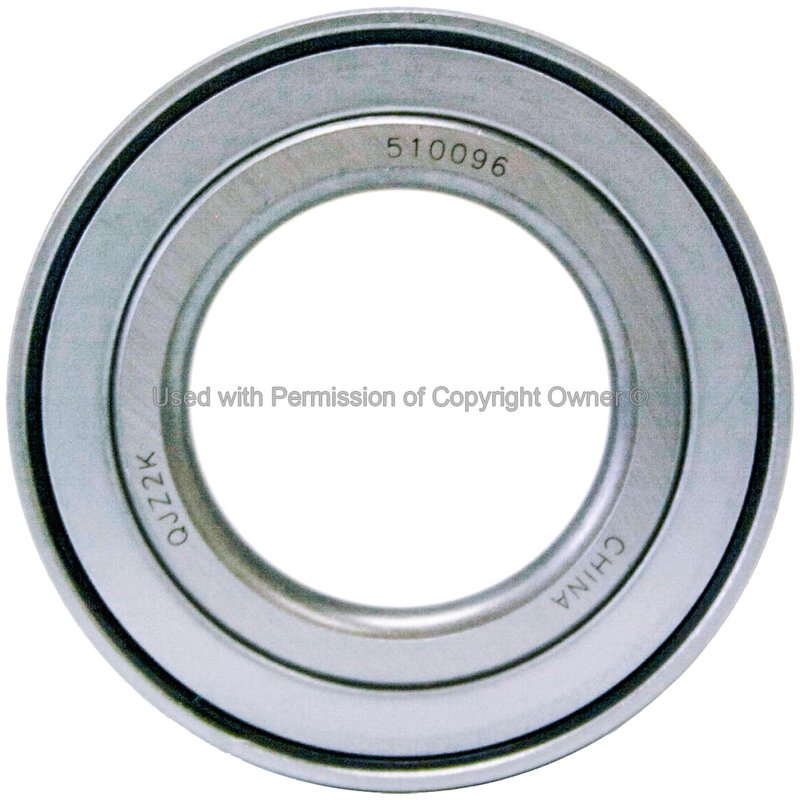

MPA Electrical WH510096 Wheel Bearing - Front

Front Wheel Bearing for Mazda 3 and Mazda 5

MPA Electrical WH510096 is a new front wheel bearing built with a steel housing and encoder-style ABS sensing. It is listed for select Mazda 3, Mazda 3 Sport, and Mazda 5 front applications, making it a direct-match option for common driveline repair needs. The WH510096 part number is also referenced for cross-checking during catalog lookup.

Key Features

• Front wheel bearing assembly for select Mazda applications
• Encoder-type ABS sensor interface
• Steel construction
• New product condition
• Hub pilot diameter: 3.15 inch
• No grease fitting and no seal included

Detailed Product Information

MPA Electrical WH510096 is a Quality-Built Hubs & Bearings wheel bearing for the front position on select Mazda vehicles. It is listed for 2012-2015 Mazda 5 front, 2012-2013 Mazda 3 front, 2012-2013 Mazda 3 Sport front, 2006-2011 Mazda 3 front, and 2006-2010 Mazda 5 front. For 2006 Mazda 5 front applications, axle nut torque is listed at 188 ft-lbs / 255 Nm; for 2007-2010 Mazda 5 front and 2006-2011 Mazda 3 front applications, axle nut torque is listed at 202 ft-lbs / 274 Nm. The WH510096 part number is useful when verifying the correct front wheel bearing for Mazda 3 and Mazda 5 service work.

This part cross-references BBM2-33-047 for the same application.

Common Repair Uses

• Front wheel bearing noise on Mazda 3 and Mazda 5 models
• ABS warning light concerns related to encoder-equipped hub sensing
• Wheel play or looseness at the front hub
• Rough or noisy front-end rotation during driving
• Service replacement for worn steel hub-bearing assemblies

Installation Notes

Confirm year, model, and front position before ordering. Follow OE service manual procedures for axle nut torque where noted, and verify ABS sensor alignment and connector condition during installation. Inspect the mating surfaces, axle hardware, and surrounding suspension components before final assembly.

Quality Assurance

MPA Electrical supplies this part as a new, steel wheel bearing assembly under its Quality-Built Hubs & Bearings line. Use OE service information for final torque and installation specifications.
