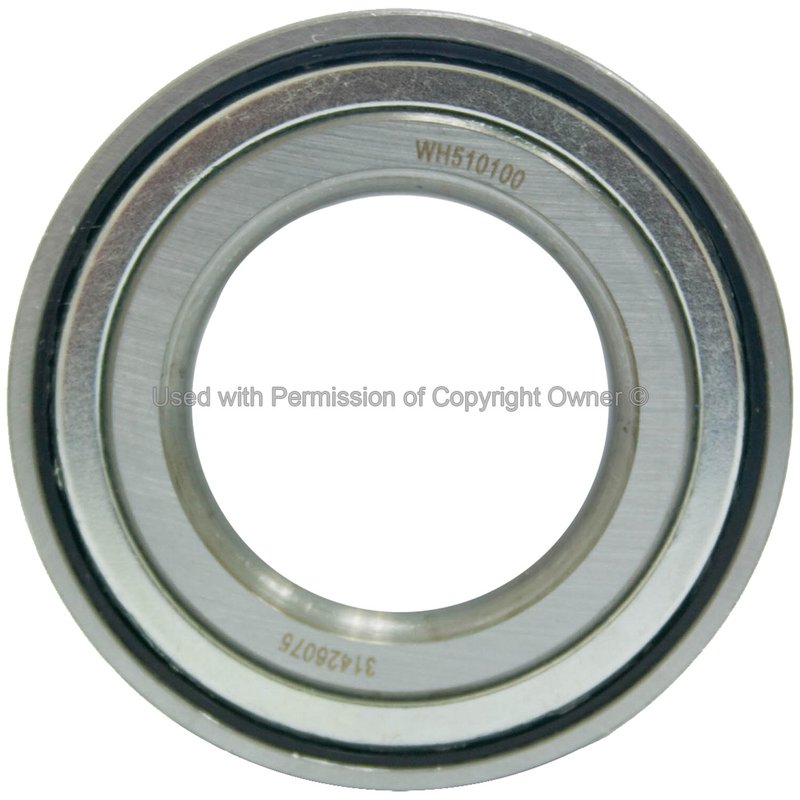

MPA Electrical WH510100 Wheel Bearing - Front
OE Quality 60-Day Returns
MPA Electrical

MPA Electrical WH510100 Wheel Bearing - Front

Brand MPA Electrical WH510100
Position Front
Gasket or Seal Included No
Greaseable No
Hub Pilot Diameter Inch 3.385
Material Steel
Product Condition New
Fits Lexus and Toyota · 51 vehicles

Steel construction. Built for dependable wheel bearing performance.

New part. Quality-built hub and bearing assembly.

Cross-references 90369-A0002 for the same application. See all 1.

$48.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $48.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing options

Front Wheel Bearing for Toyota and Lexus

MPA Electrical WH510100 is a new front wheel bearing built with a steel construction for select Toyota and Lexus applications. It is listed for front-wheel service on the Toyota Sienna, Toyota Highlander, Lexus RX350, and Lexus RX450h, with fitment spanning model years from 2008 through 2020.

Key Features

  • New wheel bearing assembly for front axle service
  • Steel construction for durable driveline support
  • Hub pilot diameter: 3.385 inch
  • No gasket or seal included
  • Not greaseable
  • Quality-Built Hubs & Bearings product line
  • Part number WH510100

Detailed Product Description

WH510100 is a front wheel bearing for Toyota Sienna, Toyota Highlander, Lexus RX350, and Lexus RX450h applications that require a direct replacement bearing with OE-style fitment. The steel design and 3.385-inch hub pilot diameter support proper wheel hub location and front-end service on the listed vehicles. This part cross-references 90369-A0002 for the same application. Use WH510100 when replacing a worn or noisy front wheel bearing on compatible Toyota and Lexus models.

Common Problems This Part Can Address

  • Front wheel bearing noise such as humming, growling, or rumbling
  • Excessive wheel play or looseness at the hub
  • Rough rotation or vibration from a worn front bearing
  • Service replacement for a damaged or fatigued bearing assembly
  • Restoration of proper front hub support on Toyota Sienna, Highlander, RX350, and RX450h

Installation Notes and Tips

  • Fits 2012-2020 Toyota Sienna, front; axle nut torque spec: refer to OE service manual
  • Fits 2013-2019 Toyota Highlander, front; axle nut torque spec: refer to OE service manual
  • Fits 2012-2015 Lexus RX350, front; axle nut torque spec: refer to OE service manual
  • Fits 2012-2015 Lexus RX450h, front; axle nut torque spec: refer to OE service manual
  • Verify hub pilot diameter and OE service information before installation
  • Follow the vehicle-specific axle nut torque procedure for the exact model year

Quality Assurance

MPA Electrical WH510100 is a new Quality-Built Hubs & Bearings component made for the listed Toyota and Lexus front-wheel applications. For 2012 Toyota Highlander, the notes specify an initial axle nut torque of 148 ft-lbs / 200 Nm followed by 251 ft-lbs / 340 Nm; other listed applications direct the installer to the OE service manual.

Related reading

This part fits 51 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2020ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2019ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2019ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2019ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2018ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2018ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2018ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2017ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2017ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2017ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2016ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2016ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2016ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2015LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2015LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2015ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2015ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2015ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2014LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2014LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2014ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2014ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2014ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2013ToyotaSienna2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: First - 148 ft-lbs / 200Nm. Then 251 ft-lbs / 340Nm
2012ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: First - 148 ft-lbs / 200Nm. Then 251 ft-lbs / 340Nm
2012ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2012ToyotaSienna2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: Refer to OE service manual
2011LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs / 294Nm
2011LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs / 294Nm
2011ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2011ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2011ToyotaSienna3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2011ToyotaSienna2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2010LexusRX3503.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs / 294Nm
2010LexusRX450h3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs / 294Nm
2010ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2010ToyotaHighlander3.3LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2010ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2009ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2009ToyotaHighlander3.3LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2009ToyotaHighlander2.7LL4FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2008ToyotaHighlander3.5LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
2008ToyotaHighlander3.3LV6FrontWheel Bearing; Axle Nut Torque Spec: 217 ft-lbs/ 294Nm
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
90369-A0002
