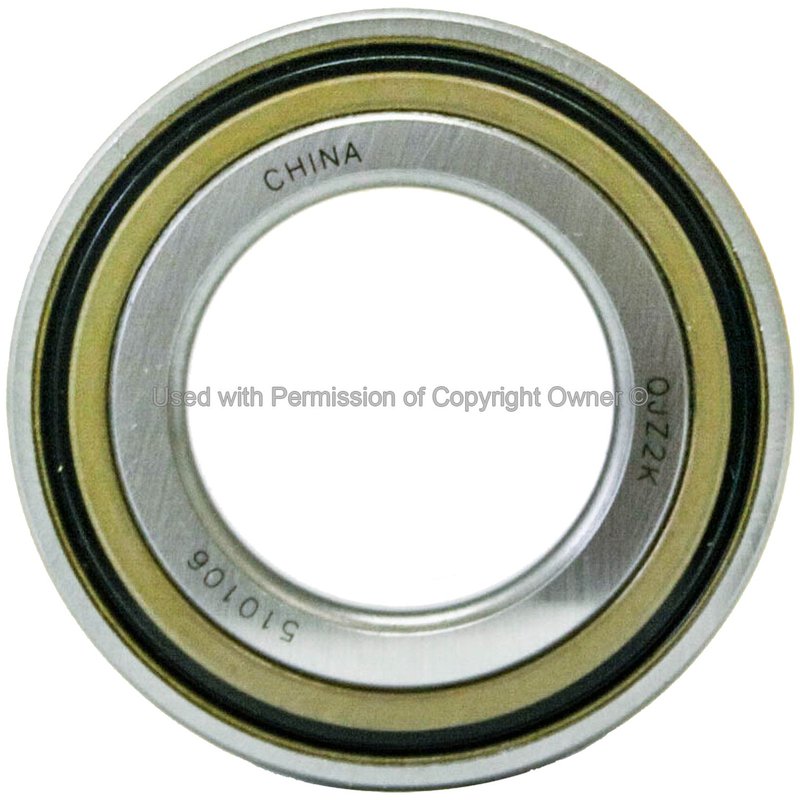

MPA Electrical WH510106 Wheel Bearing - Front
| Brand | MPA Electrical WH510106 |
|---|---|
| Position | Front |
| Anti Lock Braking System Type | Encoder |
| Gasket or Seal Included | No |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.913 |
| Material | Steel |
| Product Condition | New |
| Fits | Ford · 6 vehicles |
Quality-built hubs and bearings. Engineered for dependable wheel bearing performance.
Steel construction. Provides durable support in a new replacement part.
Encoder ABS type. Integrated encoder design for compatible ABS operation.
Cross-references 2T1Z1215C for the same application. See all 1.
Front Wheel Bearing for Transit Connect
MPA Electrical WH510106 is a new front wheel bearing built for 2010-2013 Ford Transit Connect applications. It uses an encoder-style ABS setup and a steel construction to support proper wheel speed signal operation and dependable hub service.
Key Features
- Front wheel bearing for Ford Transit Connect
- Encoder ABS type for wheel speed sensor signal integration
- Steel construction
- New condition
- Hub pilot diameter: 2.913 inch
- No grease fitting and no seal included
Detailed Description
WH510106 is a Quality-Built Hubs & Bearings wheel bearing from MPA Electrical for the front axle of the Ford Transit Connect. It is listed for 2010-2011 Ford Transit Connect, front, and 2012-2013 Ford Transit Connect, front. This part number, WH510106, is a direct replacement option for owners servicing a front wheel bearing on a Ford Transit Connect with encoder ABS requirements. This part cross-references 2T1Z1215C for the same application.
The encoder-style ABS design supports the vehicle’s wheel speed sensing function, while the steel bearing construction provides the structural base needed for hub service. The hub pilot diameter measures 2.913 inch, and the unit is supplied without a gasket or seal. WH510106 is a practical choice when replacing a worn front wheel bearing on a Transit Connect and restoring smooth wheel rotation and ABS signal consistency.
Common Problems This Part Can Address
- Front wheel noise or growling from a worn bearing
- Wheel play or looseness at the hub
- ABS warning light caused by encoder-related wheel speed signal issues
- Rough rotation or vibration from bearing wear
- Service replacement for a damaged front hub bearing assembly
Installation Notes and Tips
Fits 2010-2011 Ford Transit Connect, front. Fits 2012-2013 Ford Transit Connect, front. For 2010-2011 Ford Transit Connect, the axle nut torque spec is 207 ft-lbs / 281 Nm and a new nut is required. For 2012-2013 Ford Transit Connect, refer to the OE service manual for the axle nut torque specification. Verify encoder ABS orientation and confirm all mating surfaces are clean before installation. WH510106 should be installed using the correct service procedure for the vehicle.
Quality Assurance
MPA Electrical supplies this wheel bearing as a new replacement part under its Quality-Built Hubs & Bearings line, with specifications matched to the listed Ford Transit Connect front applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Ford | Transit Connect | 2.0L | L4 | Front | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Ford | Transit Connect | 2.0L | L4 | Front | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Ford | Transit Connect | -L | -- | Front | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Ford | Transit Connect | 2.0L | L4 | Front | Wheel Bearing; Axle Nut Torque Spec: 207 ft-lbs / 281Nm, use new nut |
| 2011 | Ford | Transit Connect | -L | -- | Front | Wheel Bearing; Axle Nut Torque Spec: 207 ft-lbs / 281Nm, use new nut |
| 2010 | Ford | Transit Connect | 2.0L | L4 | Front | Wheel Bearing; Axle Nut Torque Spec: 207 ft-lbs / 281Nm, use new nut |
| No rows match your filter. | ||||||
