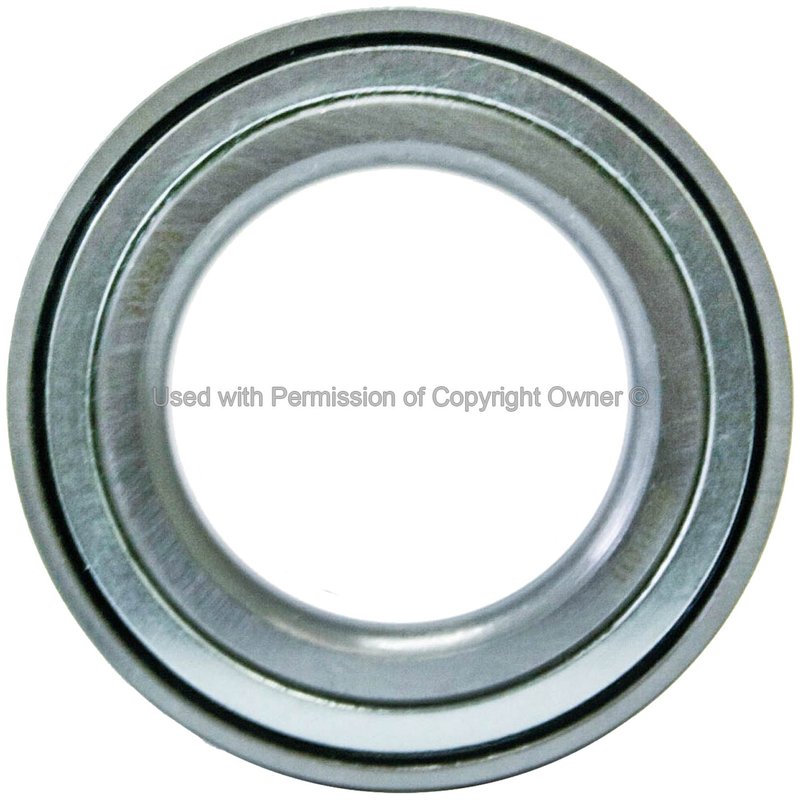

MPA Electrical WH511033 Wheel Bearing - Rear
| Brand | MPA Electrical WH511033 |
|---|---|
| Position | Rear |
| Anti Lock Braking System Type | Encoder |
| Gasket or Seal Included | No |
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.504 |
| Material | Steel |
| Product Condition | New |
| Fits | Honda · 9 vehicles |
Quality-built hub and bearing. New steel construction for dependable wheel support.
ABS encoder type. Integrated encoder supports wheel speed sensing.
Grease-free design with no seal included.
Cross-references 42200-SJC-A01 for the same application. See all 1.
Rear Wheel Bearing for Honda Ridgeline
MPA Electrical WH511033 is a new rear wheel bearing built with a steel construction and an encoder-style ABS interface. It is listed for 2006-2014 Honda Ridgeline rear applications and follows OE-style fitment requirements for the vehicle’s hub and bearing assembly.
Key Features
- New wheel bearing for rear Honda Ridgeline applications
- Steel construction for durable service in driveline and axle use
- Encoder ABS type for vehicles equipped with wheel speed sensing at the hub
- Hub pilot diameter: 3.504 inch
- No greaseable fitting and no gasket or seal included
- Cross-reference: 42200-SJC-A01
- Part number: WH511033
Product Details
This MPA Electrical wheel bearing is part of the Quality-Built Hubs & Bearings line and is made for rear installation on the Honda Ridgeline. The encoder ABS design supports the wheel speed signal used by the vehicle’s anti-lock braking system, while the steel bearing construction provides the structural support needed at the hub. If you are replacing a worn rear wheel bearing on a Honda Ridgeline, WH511033 is the direct application to review against OE specifications.
What This Part Helps Address
- Rear wheel bearing noise or growling from the hub area
- Excessive wheel play or looseness at the rear wheel
- ABS warning concerns related to a hub-mounted encoder style sensor interface
- Uneven hub rotation caused by bearing wear
- Service replacement for OE part number 42200-SJC-A01
Installation Notes
Fits 2006-2011 Honda Ridgeline, rear. Fits 2012-2014 Honda Ridgeline, rear. For 2006-2011 Honda Ridgeline rear applications, axle nut torque spec is 181 ft-lbs / 245 Nm. For 2012-2014 Honda Ridgeline rear applications, refer to the OE service manual for axle nut torque specification. Verify hub pilot diameter and ABS encoder requirements before installation. Part number WH511033 should be matched to the vehicle’s rear hub configuration before service begins.
Quality Assurance
MPA Electrical supplies this wheel bearing as a new replacement component under its Quality-Built Hubs & Bearings product line. The steel construction and encoder ABS design reflect OE-style service requirements for the Honda Ridgeline rear hub assembly.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
| 2010 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
| 2009 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
| 2008 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
| 2007 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
| 2006 | Honda | Ridgeline | 3.5L | V6 | Rear | Wheel Bearing; Axle Nut Torque Spec: 181 ft-lbs / 245Nm |
