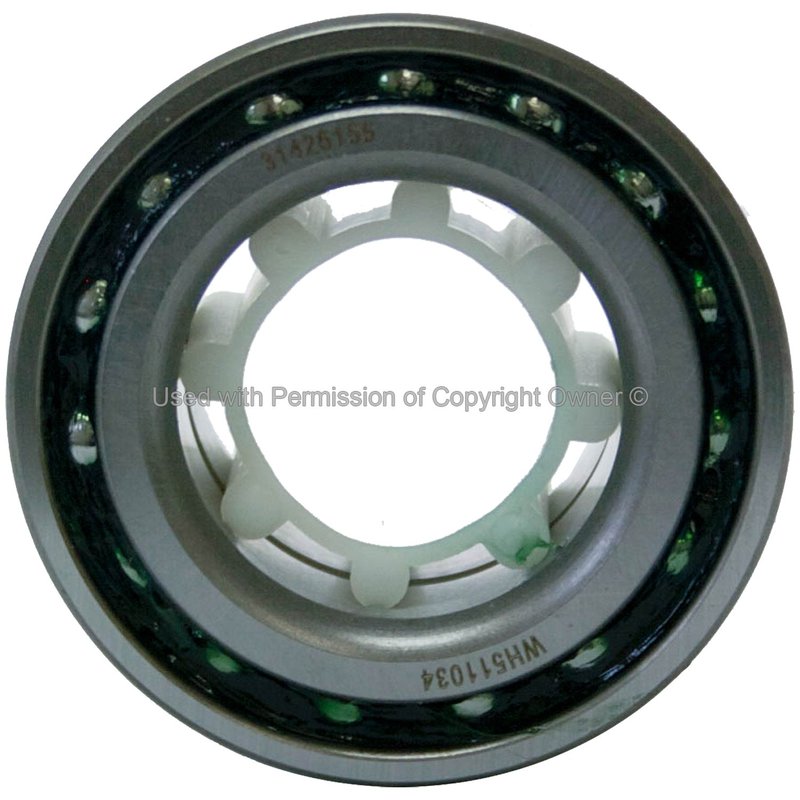

MPA Electrical WH511034 Wheel Bearing - Rear Inner

OE Quality 60-Day Returns

MPA Electrical WH511034 Wheel Bearing - Rear Inner

Brand	MPA Electrical WH511034
Position	Rear Inner
Gasket or Seal Included	No
Greaseable	Yes
Hub Pilot Diameter Inch	2.432
Material	Steel
Product Condition	New
Fits	Suzuki · 3 vehicles

Quality-built hubs and bearings. Engineered for dependable wheel bearing performance.

Steel construction. Built for strength and long service life.

Greaseable design. Allows easier maintenance and smoother operation.

Cross-references 09267-35003 for the same application. See all 1.

$43.01Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Wheel Bearing options

Rear Inner Wheel Bearing for Suzuki SX4

MPA Electrical WH511034 is a new steel wheel bearing built for rear inner service on the 2007-2009 Suzuki SX4. It features a greaseable design and a 2.432-inch hub pilot diameter for applications that require a precise driveline and axle fit.

Key Features

Brand: MPA Electrical
Part number: WH511034
New wheel bearing for driveline and axle service
Steel construction
Greaseable design
Hub pilot diameter: 2.432 inches
Gasket or seal not included

Product Details

WH511034 is a Quality-Built Hubs & Bearings wheel bearing engineered for rear inner placement on the Suzuki SX4. The steel construction supports bearing service in a demanding rotating assembly, while the greaseable design allows lubrication maintenance where the application calls for it. This part cross-references an OE-style application number, 09267-35003, for the same vehicle fitment. Use WH511034 when replacing a worn rear inner wheel bearing on 2007, 2008, and 2009 Suzuki SX4 models.

Common Problems This Part Addresses

Wheel bearing noise from the rear inner position
Excessive play or looseness in the hub assembly
Rough rotation caused by bearing wear
Grease loss or lubrication-related bearing deterioration
Service replacement for a damaged rear inner bearing on Suzuki SX4 models

Installation Notes and Tips

Fits 2007-2009 Suzuki SX4, rear inner. Confirm the hub pilot diameter and bearing dimensions before installation. Clean the mating surfaces thoroughly, inspect the axle and hub components for wear, and follow the specified axle nut torque spec of 127 ft-lbs / 175 Nm during reassembly. Because a gasket or seal is not included, verify whether the application requires separate sealing components.

Quality Assurance

MPA Electrical supplies this bearing as a new replacement component under its Quality-Built Hubs & Bearings line. Part number WH511034 is built for direct-fit service on the listed Suzuki SX4 applications and is specified for rear inner use.

This part fits 3 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Drive Type	Liters	Cylinders	Position	Notes
2009	Suzuki	SX4	AWD	2.0L	L4	Rear Inner	Wheel Bearing; Axle Nut Torque Spec: 127 ft-lbs / 175Nm
2008	Suzuki	SX4	AWD	2.0L	L4	Rear Inner	Wheel Bearing; Axle Nut Torque Spec: 127 ft-lbs / 175Nm
2007	Suzuki	SX4	AWD	2.0L	L4	Rear Inner	Wheel Bearing; Axle Nut Torque Spec: 127 ft-lbs / 175Nm
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

09267-35003
