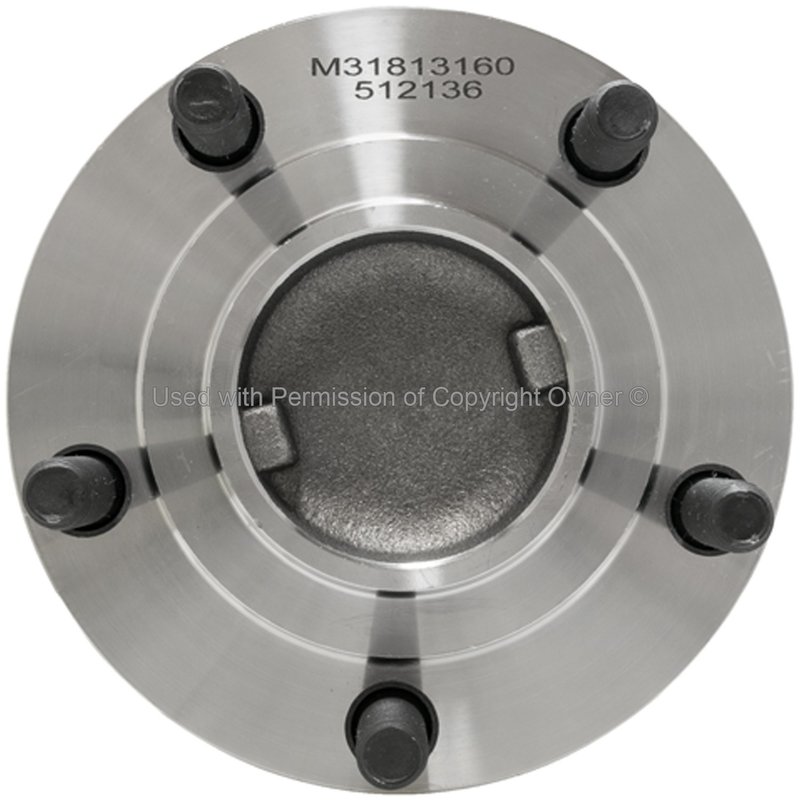

MPA Electrical WH512136 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Chrysler, Dodge, and Mitsubishi

The MPA Electrical WH512136 wheel bearing and hub assembly is designed to provide dependable driveline performance for select Chrysler, Dodge, and Mitsubishi vehicles. Engineered with a steel construction and a modified rectangle flange, this assembly ensures a precise fit and long-lasting durability.

• Includes flange with 4 bolt holes and a 5.43-inch diameter
• Features a tone ring for Anti Lock Braking System (ABS) compatibility
• Equipped with 5 wheel studs sized M12 x 1.5
• Comes with a gasket or seal included for proper sealing
• Flange offset measures 2.32 inches for accurate alignment
• Hub pilot diameter of 2.6 inches for secure mounting
• New steel construction for strength and corrosion resistance

Product Details and Specifications

The WH512136 wheel bearing and hub assembly from MPA Electrical is crafted from durable steel to withstand the rigors of daily driving. Its flange features a modified rectangle shape with four bolt holes, providing a secure connection to the vehicle’s driveline. The flange diameter of 5.43 inches and offset of 2.32 inches are designed to match factory specifications for a precise fit. This assembly includes a tone ring to support the vehicle’s ABS system, although it does not come with an ABS sensor or wiring harness. The unit is not greaseable, relying on sealed bearings for maintenance-free operation. The included gasket or seal helps prevent contamination and ensures proper sealing during installation.

Compatible Vehicles and Applications

• Chrysler Sebring and Stratus models requiring a wheel bearing and hub assembly
• Dodge Avenger models compatible with part number WH512136
• Mitsubishi Eclipse and Galant vehicles matching this hub assembly specification

Common Issues Addressed by This Hub Assembly

• Eliminates wheel bearing noise and vibration caused by wear
• Restores proper wheel alignment and rotation
• Resolves ABS tone ring signal issues related to damaged hubs
• Prevents grease leakage and contamination with included seal
• Improves overall driveline stability and safety

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the mounting surface thoroughly to remove any debris or corrosion. Verify the flange bolt hole pattern and stud size (M12 x 1.5) match the vehicle specifications. Use the included gasket or seal to maintain proper sealing and prevent contamination. Since this assembly is not greaseable, avoid disassembling the sealed bearing unit. Torque all fasteners to manufacturer specifications for safe and reliable operation.

Quality Assurance and Warranty

MPA Electrical manufactures the WH512136 wheel bearing and hub assembly to meet or exceed OEM standards. The new steel construction and precise engineering contribute to consistent performance and durability. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
