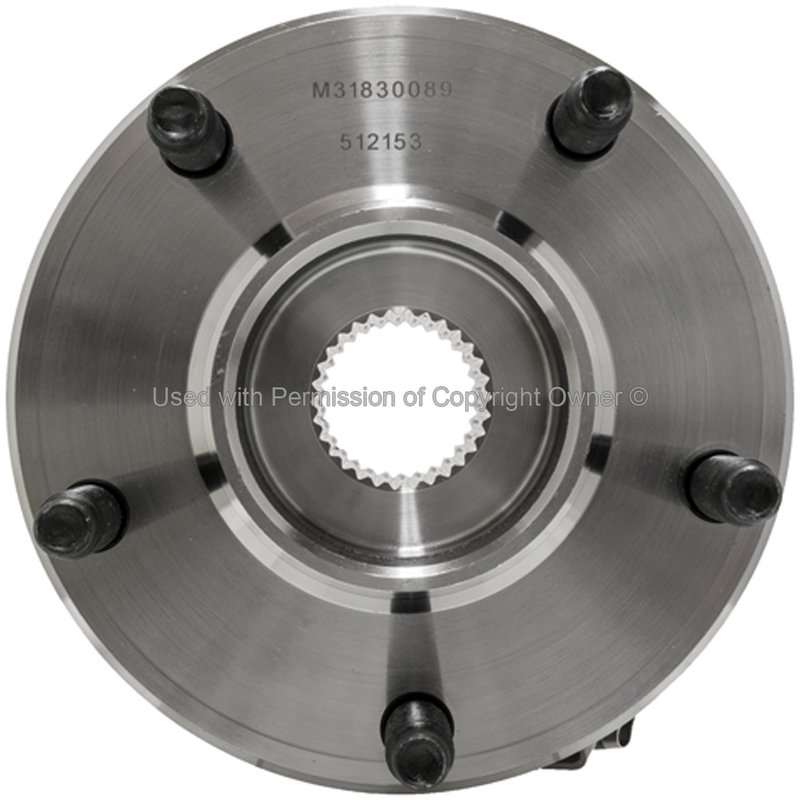

MPA Electrical WH512153 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Cadillac and Chevrolet

The MPA Electrical WH512153 wheel bearing and hub assembly is engineered to meet the specific needs of Cadillac Corvette and Chevrolet XLR models. Designed with precision, this new steel assembly includes an integrated ABS sensor to maintain optimal braking performance.

• 30 spline quantity for precise fitment
• Includes flange with a modified triangle shape and 3 bolt holes
• Flange diameter of 5.733 inches and offset of 1.652 inches
• Equipped with an anti-lock braking system (ABS) sensor
• Includes gasket or seal for secure installation
• 5 wheel studs sized M12 x 1.5
• Hub pilot diameter of 3.57 inches
• Constructed from durable steel material

Detailed Product Description

The MPA Electrical WH512153 wheel bearing and hub assembly is a new, high-quality replacement part designed specifically for Cadillac Corvette and Chevrolet XLR vehicles. This assembly features a 30-spline design that ensures a secure and accurate connection to the driveline. The included flange has a modified triangle shape with three bolt holes, each measuring 4.563 inches in diameter, providing a stable mounting surface. The flange diameter measures 5.733 inches with an offset of 1.652 inches, matching OEM specifications for proper alignment.

Equipped with an integrated ABS sensor, this assembly supports the vehicle's anti-lock braking system, enhancing safety and braking responsiveness. The product also includes a gasket or seal to prevent contamination and maintain bearing integrity. The hub pilot diameter of 3.57 inches and five M12 x 1.5 wheel studs ensure compatibility with the specified vehicle models. Made from steel, this assembly offers durability and long service life under normal operating conditions.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Cadillac Corvette and Chevrolet XLR
• Restores proper ABS sensor function to prevent braking system errors
• Eliminates wheel noise or vibration caused by faulty bearings
• Corrects wheel alignment issues related to hub flange wear
• Prevents grease leakage and contamination with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match the vehicle specifications. Handle the ABS sensor wiring carefully to avoid damage during installation. Clean the mounting surface thoroughly and replace the gasket or seal to maintain a proper seal. Torque all bolts to manufacturer specifications to ensure safe and reliable operation.

Quality Assurance and Warranty

The MPA Electrical WH512153 wheel bearing and hub assembly is manufactured to meet or exceed OEM standards for fit, form, and function. This new steel assembly undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship.
