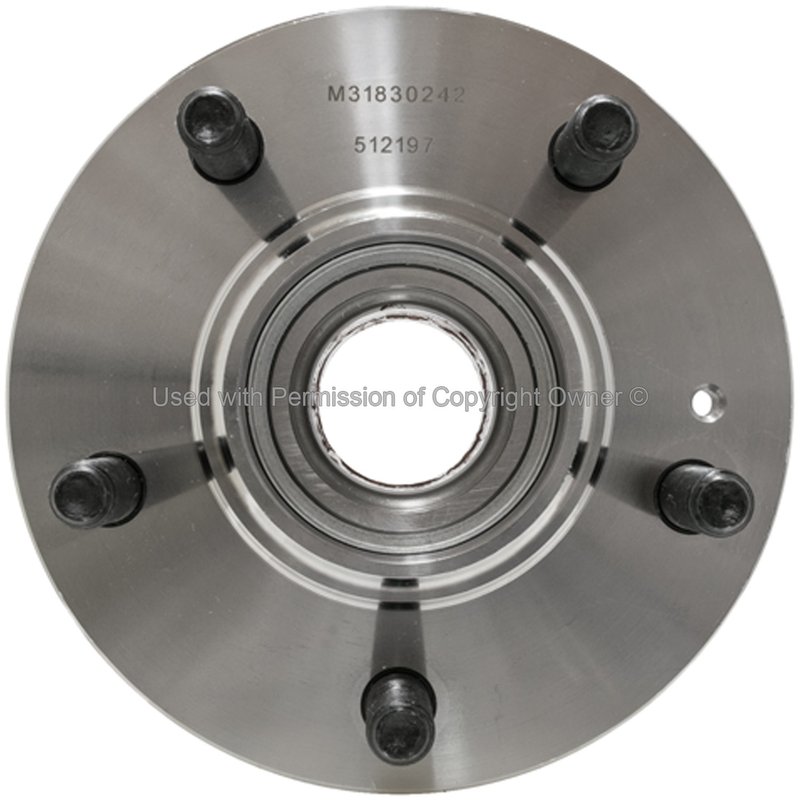

MPA Electrical WH512197 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Hyundai Santa Fe

MPA Electrical WH512197 is a new rear wheel bearing and hub assembly built for 2001-2006 Hyundai Santa Fe applications. It is a steel hub assembly with a 5-stud pattern and an included gasket or seal for service replacement work.

Use WH512197 when replacing a worn rear hub on a Hyundai Santa Fe and you need a direct-fit assembly for the rear position. This part cross-references 52710-3A000 and 52710-3A001 for the same application.

Key Features

• Brand: MPA Electrical
• Part number: WH512197
• Part type: Wheel Bearing and Hub Assembly
• Rear position application
• Steel construction
• 5 wheel studs
• Wheel stud size: M12 x 1.5
• Hub pilot diameter: 3.07 in
• Flange diameter: 5.83 in
• Flange offset: 2.22 in
• Gasket or seal included
• New condition

Detailed Description

WH512197 is a quality-built hub and bearing assembly for the rear of the Hyundai Santa Fe. It is engineered as a complete wheel hub assembly with steel construction, a 5-stud mounting pattern, and a gasket or seal included for the repair. The assembly does not include a flange, ABS sensor, grease fitting, or wiring harness.

For buyers searching rear wheel hub assembly for 2001-2006 Hyundai Santa Fe, Hyundai Santa Fe rear hub bearing replacement, or MPA Electrical WH512197 hub assembly, this part provides the core dimensions and mounting details needed for a proper service match. The rear hub design supports vehicles using M12 x 1.5 wheel studs and a 3.07-inch hub pilot diameter.

What It Helps Fix

• Rear wheel bearing noise or growling
• Excessive wheel play at the hub
• Rough or loose rear wheel rotation
• Hub wear from mileage and road exposure
• Service replacement for a damaged rear hub assembly

Installation Notes and Tips

Fits 2001-2006 Hyundai Santa Fe, rear. Confirm hub dimensions, stud count, and mounting details before installation. The notes for this application list axle nut torque spec as N/R. Because the ABS sensor is not included, reuse or service the vehicle’s existing sensor setup as required by the application.

Quality Assurance

MPA Electrical supplies this part as a new, quality-built hub and bearing assembly for rear-wheel service on the Hyundai Santa Fe. Verify interchange and fitment against the vehicle before installation to ensure the correct application.
