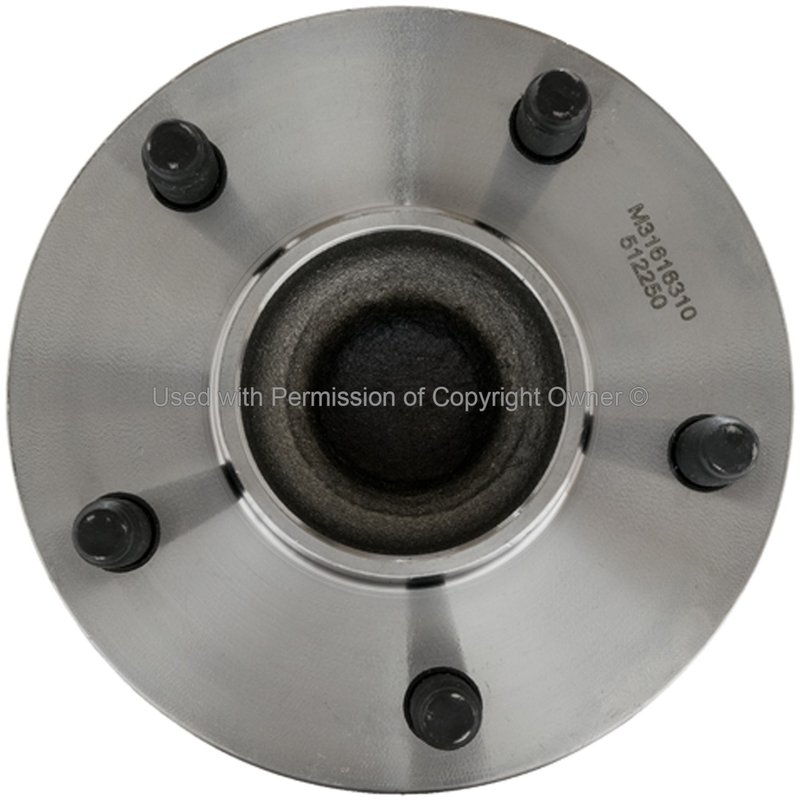

MPA Electrical WH512250 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Chevrolet, Pontiac, and Saturn

The MPA Electrical WH512250 wheel bearing and hub assembly is designed to provide dependable performance for select Chevrolet, Pontiac, and Saturn models. Engineered with precision, this new steel assembly includes an integrated flange and ABS sensor to maintain vehicle safety and handling.

Key Features of MPA Electrical WH512250

• Includes a trapezoid-shaped flange with 4 bolt holes for secure mounting
• Flange diameter measures 5.5 inches with a 3.089-inch flange offset
• Equipped with a sensor-type Anti Lock Braking System (ABS) and includes the ABS sensor
• Steel construction ensures durability and long service life
• Comes with a gasket or seal to maintain proper sealing
• Features 5 wheel studs sized M12 x 1.5 for compatibility with specified vehicles
• Hub pilot diameter is 2.363 inches for precise fitment

Detailed Product Description

The WH512250 wheel bearing and hub assembly by MPA Electrical is a new, high-quality replacement part designed specifically for Chevrolet Cobalt, Pontiac G5, Saturn Ion, Saturn Pursuit, and Chevrolet HHR models. Its steel construction offers strength and resistance to wear, while the trapezoid flange shape with four bolt holes ensures a secure and stable connection to the vehicle’s driveline. The included ABS sensor supports the vehicle’s anti-lock braking system, helping maintain safe braking performance. Additionally, the assembly comes with a gasket or seal to prevent contaminants from entering the hub area, preserving bearing integrity. This assembly is not greaseable, which is typical for sealed hub units, reducing maintenance requirements.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Cobalt and Pontiac G5
• Restores proper ABS sensor function in Saturn Ion and Saturn Pursuit models
• Eliminates wheel noise or vibration caused by faulty bearings
• Addresses wheel hub looseness or play affecting vehicle handling
• Prevents water and debris intrusion with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the flange bolt hole pattern and stud size (M12 x 1.5) match the vehicle specifications. Since the assembly includes the ABS sensor, carefully connect the sensor wiring without damage. Do not attempt to grease the bearing as it is a sealed unit. Proper torque specifications should be followed for flange bolts and wheel studs to ensure safe operation.

Quality Assurance and Warranty

MPA Electrical manufactures the WH512250 wheel bearing and hub assembly to meet or exceed OEM standards for fit and function. This new product is backed by the manufacturer’s quality control processes to ensure reliability. Please consult the manufacturer or distributor for specific warranty details related to this part number.
