Home› Driveline and Axles > Hubs and Related Components› MPA Electrical WH512253 Wheel Bearing and Hub Assembly - Rear
MPA Electrical WH512253 Wheel Bearing and Hub Assembly - RearOE Quality 60-Day Returns
Part #: WH512253

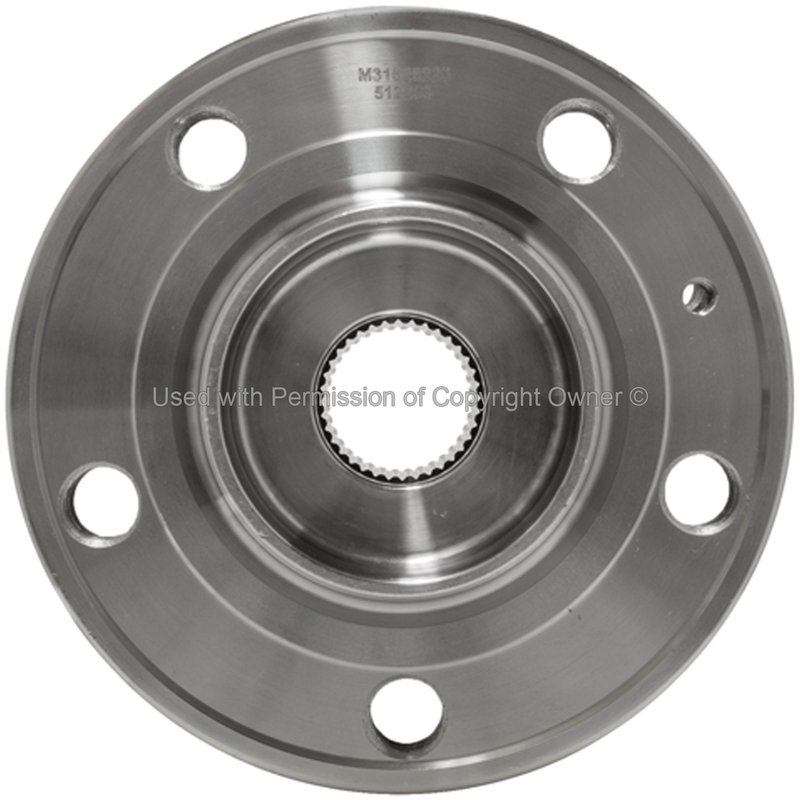

MPA Electrical WH512253 Wheel Bearing and Hub Assembly - Rear

Rear
23 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$151.36Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Volvo, S60, S80, V70, and XC70
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Wheel Bearing and Hub Assembly options
MPA Electrical WH512253 Wheel Bearing and Hub Assembly - Rear
BrandMPA Electrical
Part NumberWH512253
Spline Quantity36
Flange IncludedYes
Flange Bolt Hole Quantity4
Flange ShapeTrapezoid
Anti Lock Braking System TypeEncoder
Anti Lock Brake Sensor IncludedNo
Flange Offset2.325
Flange Diameter5.346
Flange Diameter Inch5.346
Gasket or Seal IncludedYes
GreaseableNo
Hub Pilot Diameter Inch3.443
MaterialSteel
Product ConditionNew
Spline Quantity36
Stud Quantity5
Wheel Stud Size MMM14 x 1.5
Wiring Harness IncludedNo

This part fits 23 vehicles. Search below:

YearMakeModelDrive TypeLitersCylindersPositionNotes
2009VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2008VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2007VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2007VolvoV70AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2007VolvoXC702.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2006VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2006VolvoS80AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2006VolvoV70AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2006VolvoXC702.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2005VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2005VolvoS80AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2005VolvoV70AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2005VolvoXC702.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2004VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2004VolvoS80AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2004VolvoV70AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2004VolvoXC702.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2003VolvoS60AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2003VolvoV70AWD2.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2003VolvoXC702.5LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2002VolvoS60AWD2.4LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2002VolvoV70AWD2.4LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm
2001VolvoV70AWD2.4LL5RearWheel Hub Assembly; Axle Nut Torque Spec: 37 ft-lbs / 50Nm

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

192850212HR1225331201010-0

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
