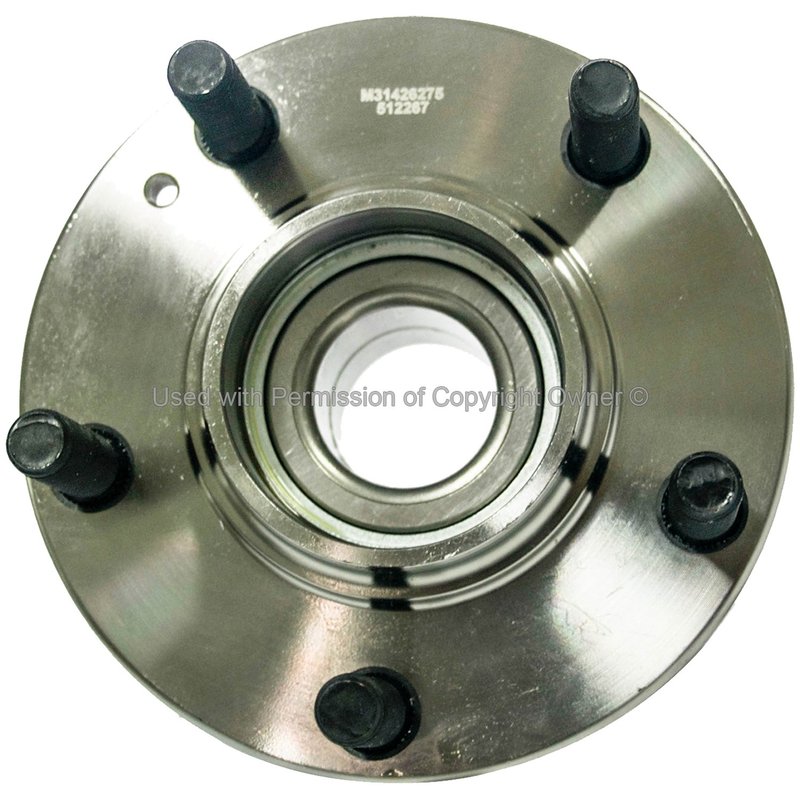

MPA Electrical WH512267 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Kia and Hyundai

MPA Electrical WH512267 is a new rear wheel bearing and hub assembly built for select Kia Sportage and Hyundai Tucson applications. It combines a steel hub with a tone ring ABS setup and an included gasket or seal for a direct-fit replacement focused on rear driveline service.

Key Features

• Part number WH512267
• Rear wheel bearing and hub assembly
• Steel construction
• ABS tone ring type
• Gasket or seal included
• 5-stud hub with M12 x 1.5 wheel studs
• Hub pilot diameter: 3.011 in.
• Flange diameter: 5.472 in.
• Flange offset: 2.29 in.
• New condition

Detailed Description

WH512267 is a Quality-Built Hubs & Bearings replacement for rear wheel service on 2005-2010 Kia Sportage and 2005-2009 Hyundai Tucson models. This rear hub assembly uses a tone ring for ABS-equipped applications and is supplied without an ABS sensor or wiring harness. The steel hub design, 5-stud pattern, and M12 x 1.5 wheel stud size support a precise OE-style replacement for worn or noisy rear hub units. This part cross-references 2HR12267 for the same application.

What This Part Helps Address

• Rear wheel bearing noise or growling
• Excessive wheel play at the hub
• ABS tone ring-related wheel speed signal issues
• Hub wear from mileage or corrosion
• Rear end vibration traced to hub assembly wear

Installation Notes and Tips

Confirm rear fitment by year, make, and model before installation. Inspect the axle nut, mounting surface, and surrounding brake components for wear or corrosion during service. Because the ABS sensor is not included, reuse or replace the sensor as needed based on the vehicle condition. Follow the vehicle service manual for torque specifications and installation procedures.

Quality Assurance

MPA Electrical supplies this hub assembly as a new replacement part under its Quality-Built Hubs & Bearings line, with specifications matched to the listed rear Kia Sportage and Hyundai Tucson applications.
