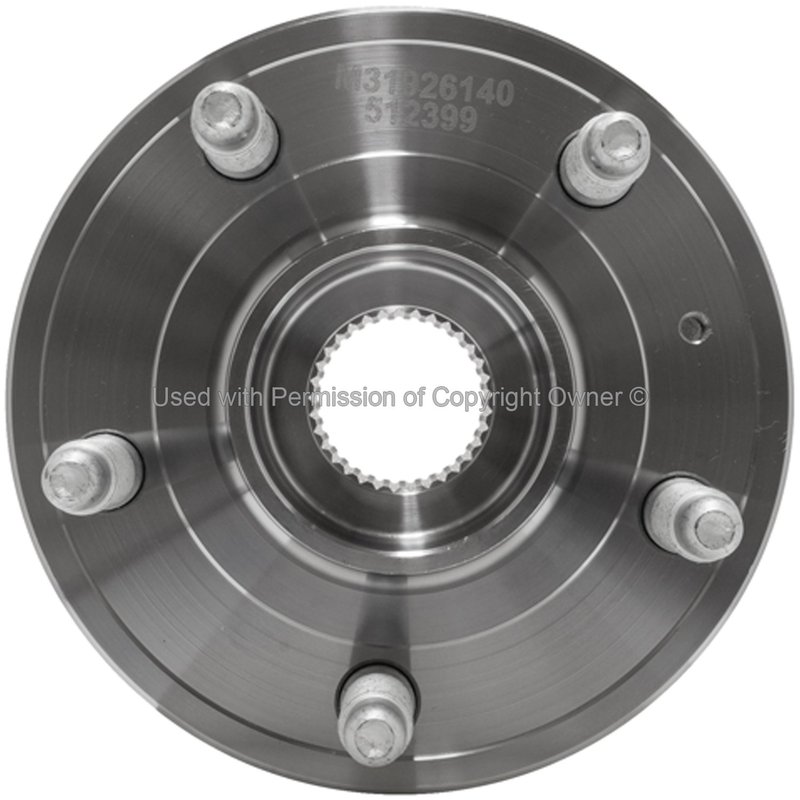

MPA Electrical WH512399 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Chevrolet Camaro

The MPA Electrical WH512399 wheel bearing and hub assembly is engineered to meet the specific driveline needs of Chevrolet Camaro models. Designed with precision, this new steel hub assembly ensures proper fitment and reliable performance for your vehicle's front or rear axle.

• 33 spline quantity for accurate drivetrain engagement
• Includes a triangle-shaped flange with 3 bolt holes
• Flange bolt hole diameter of 4.565 inches and flange diameter of 6.172 inches
• Equipped with an encoder-type Anti Lock Braking System (ABS) for enhanced braking control
• Includes gasket or seal for secure installation
• 5 wheel studs sized M14 x 1.5 for secure wheel mounting
• Hub pilot diameter of 3.57 inches for precise alignment
• Constructed from durable steel material

Detailed Product Description

The MPA Electrical WH512399 wheel bearing and hub assembly is a new, high-quality replacement part designed specifically for Chevrolet Camaro vehicles. This assembly features a 33-spline shaft interface, ensuring compatibility with the Camaro's driveline components. The included flange has a triangular shape with three bolt holes, each measuring 4.565 inches in diameter, and an overall flange diameter of 6.172 inches, providing a secure and stable connection to the axle. The flange offset is 1.658 inches, which maintains proper wheel positioning and alignment.

Equipped with an encoder-type Anti Lock Braking System (ABS), this hub assembly supports the vehicle's ABS functionality, although it does not include the ABS sensor itself. The assembly comes with a gasket or seal to prevent contamination and maintain bearing integrity. The hub pilot diameter of 3.57 inches ensures precise centering of the wheel hub on the axle, while the five M14 x 1.5 wheel studs provide a secure mounting point for the wheels. Constructed from steel, this assembly offers durability and resistance to wear under normal driving conditions.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Camaro
• Resolves wheel vibration or noise caused by bearing wear
• Addresses ABS warning lights related to encoder-type ABS hub issues
• Fixes wheel alignment problems due to flange or hub damage
• Eliminates grease leakage or seal failure in the hub area

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the axle shaft and flange mounting surfaces thoroughly to remove debris and corrosion. Verify the spline count and flange bolt pattern match the vehicle specifications. Use proper torque specifications for flange bolts and wheel studs to avoid damage. Since this assembly is not greaseable, avoid introducing contaminants during installation. Confirm ABS system functionality after installation, as the sensor is not included with this part.

Quality Assurance and Warranty

The MPA Electrical WH512399 wheel bearing and hub assembly is manufactured to meet OEM standards for fit and function. This new steel assembly is designed for durability and reliable performance in Chevrolet Camaro driveline applications. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
