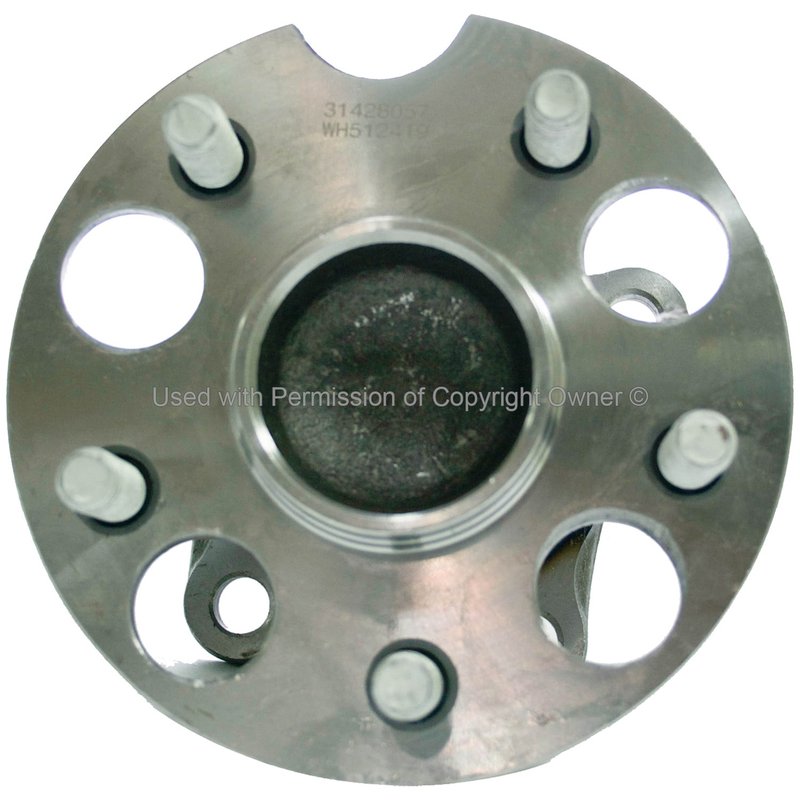

MPA Electrical WH512419 Wheel Bearing and Hub Assembly - Rear Left

Wheel Bearing and Hub Assembly for Toyota Highlander

This MPA Electrical wheel bearing and hub assembly is built for direct replacement service on select Toyota Highlander rear left applications. Part number WH512419 is a new steel hub assembly with an integrated flange, ABS sensor, and gasket or seal for a complete service-focused design.

Key Features

• New steel wheel bearing and hub assembly
• Integrated flange with 5.98-inch diameter and trapezoid shape
• ABS sensor included for sensor-type anti-lock brake systems
• Five wheel studs with M12 x 1.5 thread size
• Gasket or seal included for added service completeness

Detailed Description

WH512419 is a rear left wheel bearing and hub assembly for 2008-2013 Toyota Highlander models. It is built with a steel hub body, five studs, and an integrated flange to match the service requirements of the original assembly. The included ABS sensor supports sensor-type anti-lock brake systems, and the hub is supplied new rather than remanufactured. This part cross-references Toyota 42460-0E030 for the same application.

What It Helps Address

• Wheel-end noise from a worn hub or bearing
• ABS warning light concerns related to hub sensor failure
• Loose or uneven wheel mounting caused by hub wear
• Seal-related contamination at the wheel-end assembly

Installation Notes and Tips

Fits 2008-2011 Toyota Highlander, rear left. Fits 2012-2013 Toyota Highlander, rear left. Confirm axle nut torque using the OE service manual, since the fitment notes specify OE reference values. Verify flange and stud specifications before installation, and inspect the mating surfaces for wear or corrosion.

Quality Assurance

MPA Electrical markets this as a Quality-Built hub and bearing assembly. Part number WH512419 is supplied new and built for service replacement use.
