MPA Electrical WH512420 Wheel Bearing and Hub Assembly - Rear Right
OE Quality 60-Day Returns
MPA Electrical

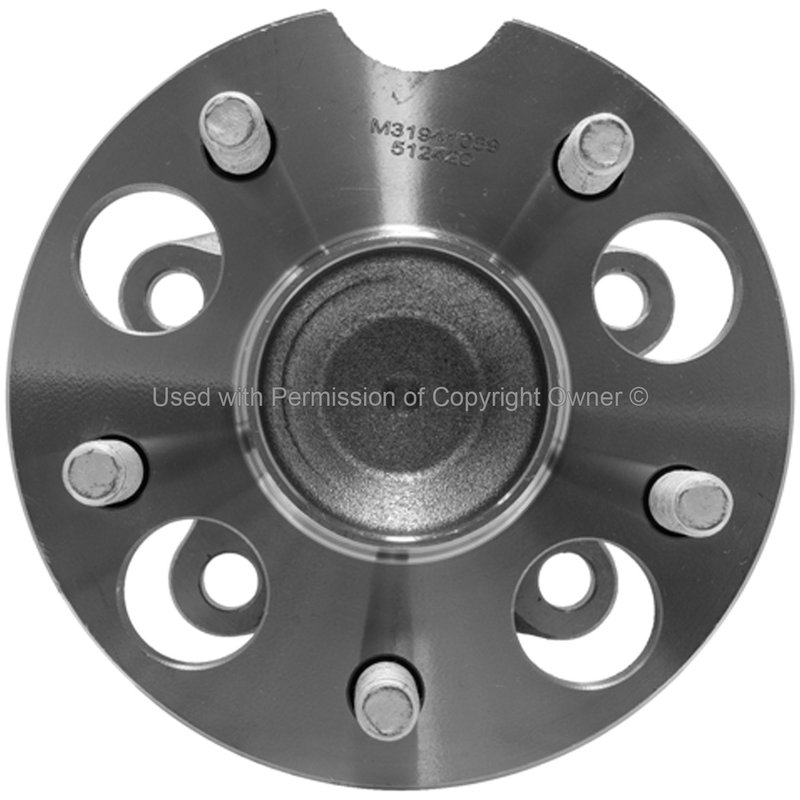

MPA Electrical WH512420 Wheel Bearing and Hub Assembly - Rear Right

Brand MPA Electrical WH512420
Position Rear Right
Flange Included Yes
Flange Bolt Hole Quantity 4
Flange Shape Trapezoid
Anti Lock Braking System Type Sensor
Anti Lock Brake Sensor Included Yes
Flange Offset 2.836
Flange Diameter 5.981
Flange Diameter Inch 5.981
Gasket or Seal Included Yes
Greaseable No
Hub Pilot Diameter Inch 3.3
Material Steel
Product Condition New
Stud Quantity 5
Wheel Stud Size MM M12 x 1.5
Wiring Harness Included No
Fits Toyota · 11 vehicles

OE-style replacement. New wheel bearing and hub assembly for direct service replacement.

ABS sensor included. Built for sensor-type anti-lock brake system applications.

Steel hub construction. Includes flange and seal for a complete hub service.

Cross-references 42450-0E040 for the same application. See all 1.

$125.90Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $125.90
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options

Wheel Bearing and Hub Assembly Overview

This MPA Electrical wheel bearing and hub assembly is a new, OE-style replacement for rear right applications on the Toyota Highlander. It is built with an integrated flange, ABS sensor, and seal to support a complete hub service on the specified fitment.

Key Features

  • Steel construction for a durable hub assembly design.
  • Integrated flange with a trapezoid shape and 4-bolt mounting pattern.
  • ABS sensor included for sensor-type anti-lock brake systems.
  • 5 wheel studs with M12 x 1.5 thread size.
  • Gasket or seal included for a more complete service replacement.
  • New condition part from MPA Electrical, part number WH512420.

Detailed Description

WH512420 is a wheel bearing and hub assembly engineered for rear right fitment on 2008-2013 Toyota Highlander models. The assembly includes the flange, ABS sensor, seal, and steel hub construction, making it a practical replacement when servicing a worn or noisy rear hub on the Toyota Highlander. The hub pilot diameter, flange dimensions, and stud configuration are specified for the listed application, and the sensor-equipped ABS design supports vehicles that use a sensor-style wheel speed input. This part cross-references 42450-0E040 for the same application.

Common Reasons for Replacement

  • Wheel bearing noise from the rear hub area.
  • ABS warning light caused by a failed hub sensor.
  • Excessive wheel play or looseness at the hub.
  • Damaged flange, studs, or mounting surface.
  • Seal wear that allows contamination into the hub assembly.

Installation Notes

Fits 2008-2011 Toyota Highlander, rear right. Fits 2012-2013 Toyota Highlander, rear right. Verify axle nut torque against the OE service manual for the exact model year before installation. Confirm ABS sensor connection and hub orientation match the original part before final assembly.

Quality Assurance

MPA Electrical supplies quality-built hubs and bearings for replacement service, and WH512420 is offered as a new component for the listed application.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2013ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2013ToyotaHighlanderFWD2.7LL4Rear RightWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2012ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2012ToyotaHighlanderFWD2.7LL4Rear RightWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2011ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2011ToyotaHighlanderFWD2.7LL4Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2010ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2010ToyotaHighlanderFWD2.7LL4Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2009ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2009ToyotaHighlanderFWD2.7LL4Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
2008ToyotaHighlanderFWD3.5LV6Rear RightWheel Hub Assembly; Axle Nut Torque Spec: N/R
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
42450-0E040
