OE Quality
60-Day Returns

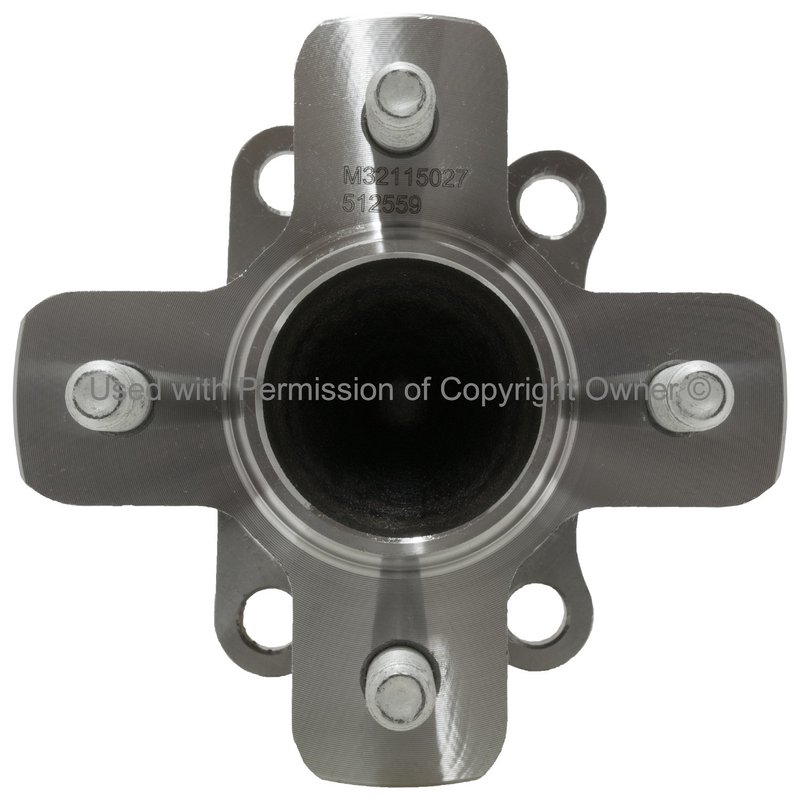

MPA Electrical WH512559 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Hub Assembly for Honda Fit
MPA Electrical WH512559 is a new rear wheel bearing and hub assembly for select 2015-2020 Honda Fit models. Built with a steel flange and integrated gasket or seal, it is specified for rear service on the Honda Fit and cross-references OE part number 42200-T5B-951 for the same application.
Key Features
- Rear wheel bearing and hub assembly for 2015-2020 Honda Fit
- Steel construction with flange included
- Flange bolt hole quantity: 4
- Wheel stud size: M12 x 1.5 with 4 studs
- Hub pilot diameter: 2.873 in. and flange diameter: 5.462 in.
- Flange offset: 2.315 in. with rectangle flange shape
- Gasket or seal included
- ABS sensor not included
- Greaseable: No
Detailed Description
This MPA Electrical wheel bearing and hub assembly is built for rear installation on the Honda Fit, covering model years 2015 through 2020. The assembly uses a steel flange design with a 2.873-inch hub pilot diameter, 5.462-inch flange diameter, and M12 x 1.5 wheel studs. It is a direct-fit rear wheel hub assembly for Honda Fit owners replacing worn hub and bearing components, and it references OE number 42200-T5B-951.
What It Helps Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive wheel play or looseness at the rear hub
- Vibration or rough rotation from hub wear
- Seal-related contamination at the hub area
- Service replacement for a damaged rear wheel hub on a Honda Fit
Installation Notes and Tips
Fits 2015-2020 Honda Fit, rear. Confirm the rear hub mounting pattern, flange dimensions, and stud specification before installation. The ABS sensor is not included, so reuse or source the vehicle’s sensor as needed. Follow the vehicle service procedure and torque specifications for the rear hub fasteners during installation.
Quality Assurance
MPA Electrical markets this part under its Quality-Built Hubs & Bearings line, with a focus on replacement hub assemblies built to match the application requirements of the Honda Fit.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH512559 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Hub Pilot Diameter | 2.87 |
| Flange Shape | Rectangle |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 2.315 |
| Flange Diameter | 5.462 |
| Flange Diameter Inch | 5.462 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.873 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 4 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Honda | Fit | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R | |
| 2019 | Honda | Fit | LX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2019 | Honda | Fit | EX-L | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2019 | Honda | Fit | EX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2018 | Honda | Fit | LX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2018 | Honda | Fit | EX-L | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2018 | Honda | Fit | EX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2017 | Honda | Fit | LX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2017 | Honda | Fit | EX-L | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2017 | Honda | Fit | EX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2016 | Honda | Fit | LX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2016 | Honda | Fit | EX-L | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2016 | Honda | Fit | EX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | Honda | Fit | LX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | Honda | Fit | EX-L | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | Honda | Fit | EX | 1.5L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
