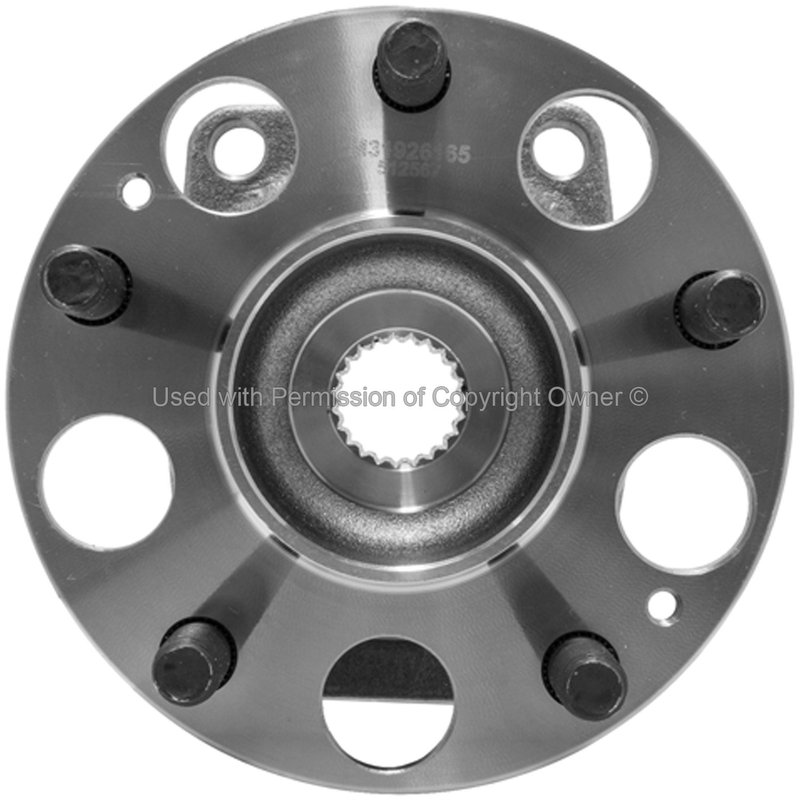

MPA Electrical WH512567 Wheel Bearing and Hub Assembly - Rear

Overview of MPA Electrical Wheel Bearing and Hub Assembly WH512567

The MPA Electrical WH512567 wheel bearing and hub assembly is designed specifically for Honda HR-V models, providing reliable driveline performance. This new steel assembly features a trapezoid flange with a 23-spline count, engineered to meet precise fitment requirements.

• Compatible with Honda HR-V vehicles
• Steel construction for durability
• 23 spline quantity for secure fitment
• Includes trapezoid-shaped flange with 4 bolt holes
• Flange diameter of 5.484 inches and offset of 2.76 inches
• Equipped with an anti-lock braking system encoder
• Includes gasket or seal for proper installation
• Five M12 x 1.5 wheel studs included

Detailed Product Features and Specifications

The WH512567 wheel bearing and hub assembly from MPA Electrical is crafted from steel to ensure strength and longevity under typical driving conditions. It features a 23-spline design that aligns precisely with the Honda HR-V’s driveline components. The trapezoid flange shape includes four bolt holes and a flange diameter of 5.484 inches, with a flange offset of 2.76 inches to maintain proper wheel alignment and balance. This assembly is designed with an anti-lock braking system (ABS) encoder type, although it does not include the ABS sensor or wiring harness. The hub pilot diameter measures 2.99 inches, and the assembly comes with five M12 x 1.5 wheel studs to secure the wheel properly. Additionally, a gasket or seal is included to help prevent contamination and maintain bearing integrity. This part is not greaseable, which is typical for sealed hub assemblies.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings on Honda HR-V
• Fixes wheel hub noise such as grinding or humming
• Addresses wheel play or looseness affecting vehicle stability
• Restores proper ABS encoder function for accurate braking
• Prevents water and debris ingress with included gasket or seal

Installation Notes and Tips

When installing the MPA Electrical WH512567 wheel bearing and hub assembly, ensure the vehicle is securely lifted and the wheel is removed. Clean the mounting surface thoroughly before installation to ensure proper seating of the flange and gasket. Torque the flange bolts to manufacturer specifications to avoid premature wear. Since this assembly is not greaseable, avoid disassembling the sealed bearing unit. Verify ABS encoder alignment and sensor connections if applicable, although the sensor and wiring harness are not included with this part.

Quality Assurance and Warranty Information

This wheel bearing and hub assembly is supplied new by MPA Electrical, manufactured to meet OEM standards for fit and function on Honda HR-V models. The steel construction and sealed design contribute to long service life under normal operating conditions. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship. For specific warranty terms, refer to MPA Electrical documentation or contact the supplier.
