MPA ElectricalPart #: WH513137HD

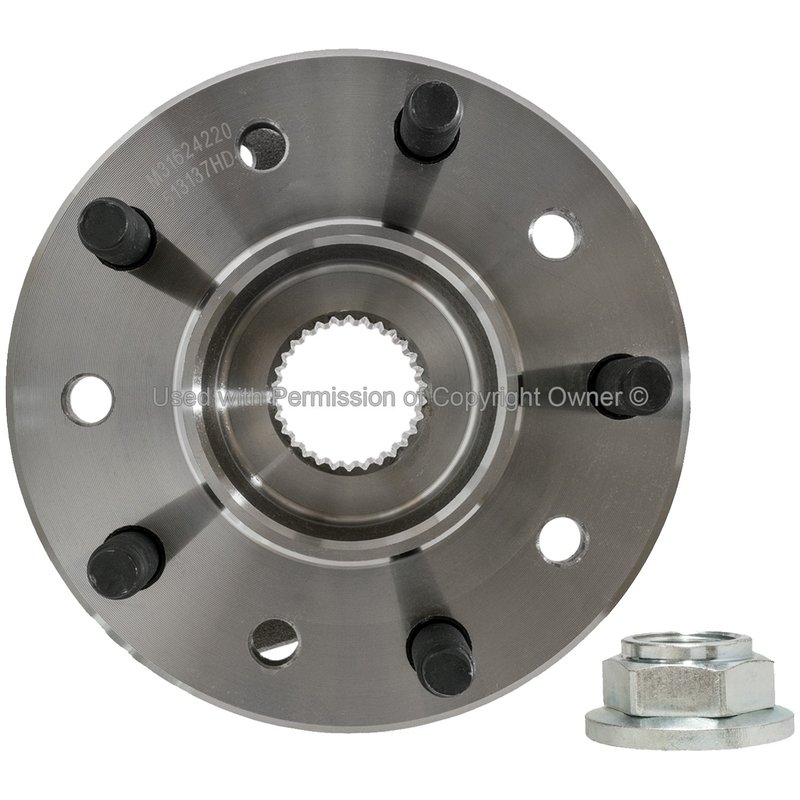

MPA Electrical WH513137HD Wheel Bearing and Hub Assembly - Front
⚙️ 82 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$73.67Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet, Oldsmobile, and Pontiac, Alero, Classic, Cutlass, Grand Am, and Malibu
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
Reliable Wheel Bearing and Hub Assembly for Chevrolet, Oldsmobile, and Pontiac
The MPA Electrical WH513137HD wheel bearing and hub assembly is engineered to meet the specific needs of Chevrolet Alero, Oldsmobile Cutlass Classic, Pontiac Grand Am, and Chevrolet Malibu models. Designed with precision, this new steel assembly includes an integrated ABS sensor to maintain your vehicle's braking performance.
- 30 spline quantity for secure axle engagement
- Includes a triangle-shaped flange with 3 bolt holes
- Flange diameter of 5.705 inches and offset of 1.46 inches
- Equipped with an anti-lock braking system (ABS) sensor
- Includes gasket or seal for proper fitment
- 5 wheel studs sized M12 x 1.5 for reliable wheel mounting
- Hub pilot diameter of 3.57 inches for precise alignment
- Constructed from durable steel material
Detailed Product Description
The WH513137HD wheel bearing and hub assembly from MPA Electrical is a direct replacement part designed for select Chevrolet, Oldsmobile, and Pontiac vehicles. Its 30-spline design ensures a secure connection to the axle shaft, while the included ABS sensor supports your vehicle’s anti-lock braking system for enhanced safety. The flange features a triangular shape with three bolt holes, each measuring 4.565 mm in diameter, providing a stable mounting surface. The flange diameter of 5.705 inches and offset of 1.46 inches are engineered to match factory specifications, ensuring proper fit and function. This assembly also includes a gasket or seal to prevent contaminants from entering the hub area. The steel construction offers strength and durability for long-lasting performance. This part is not greaseable and does not include a wiring harness.
Common Applications and Issues Addressed
- Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Alero, Oldsmobile Cutlass Classic, Pontiac Grand Am, and Chevrolet Malibu
- Restores proper ABS sensor function to maintain anti-lock braking system performance
- Eliminates wheel noise or vibration caused by faulty bearings
- Corrects wheel hub misalignment and improves wheel mounting stability
- Prevents grease leakage and contamination with included gasket or seal
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match your vehicle’s specifications. The included gasket or seal should be properly seated to prevent contamination. Since this assembly is not greaseable, no additional lubrication is required during installation. Confirm ABS sensor wiring compatibility, as the wiring harness is not included with this part.
Quality Assurance and Warranty
MPA Electrical manufactures the WH513137HD wheel bearing and hub assembly to meet OEM standards for fit, form, and function. This new steel assembly is designed for durability and reliable performance. Please refer to MPA Electrical’s warranty policy for specific coverage details.
| Brand | MPA Electrical |
| Part Number | WH513137HD |
| Spline Quantity | 30 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Flange Shape | Triangle |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Bolt Hole Diameter | 4.565 |
| Flange Offset | 1.46 |
| Flange Diameter | 5.705 |
| Flange Diameter Inch | 5.705 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.57 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 30 |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 82 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Classic | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2005 | Chevrolet | Classic | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2005 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2005 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2005 | Pontiac | Grand Am | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2005 | Pontiac | Grand Am | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Chevrolet | Classic | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Chevrolet | Classic | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Oldsmobile | Alero | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Oldsmobile | Alero | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Pontiac | Grand Am | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2004 | Pontiac | Grand Am | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Oldsmobile | Alero | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Oldsmobile | Alero | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Pontiac | Grand Am | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2003 | Pontiac | Grand Am | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Oldsmobile | Alero | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Oldsmobile | Alero | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Pontiac | Grand Am | 2.2L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2002 | Pontiac | Grand Am | 2.2L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Oldsmobile | Alero | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Oldsmobile | Alero | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Pontiac | Grand Am | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2001 | Pontiac | Grand Am | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Oldsmobile | Alero | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Oldsmobile | Alero | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Pontiac | Grand Am | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 2000 | Pontiac | Grand Am | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Chevrolet | Malibu | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Chevrolet | Malibu | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Alero | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Alero | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Alero | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Alero | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Pontiac | Grand Am | 3.4L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Pontiac | Grand Am | 3.4L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Pontiac | Grand Am | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1999 | Pontiac | Grand Am | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Chevrolet | Malibu | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Chevrolet | Malibu | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1998 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Chevrolet | Malibu | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Chevrolet | Malibu | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Chevrolet | Malibu | 2.4L | L4 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Chevrolet | Malibu | 2.4L | L4 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Optional Heavy-Duty Upgrade Design; Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
| 1997 | Oldsmobile | Cutlass | 3.1L | V6 | Front | Wheel Hub Assembly; Axle Nut Torque Spec: Black painted nut (1st design): 284 ft-lbs / 385Nm. Solid grey nut (2nd design): 173 ft-lbs / 235Nm. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
