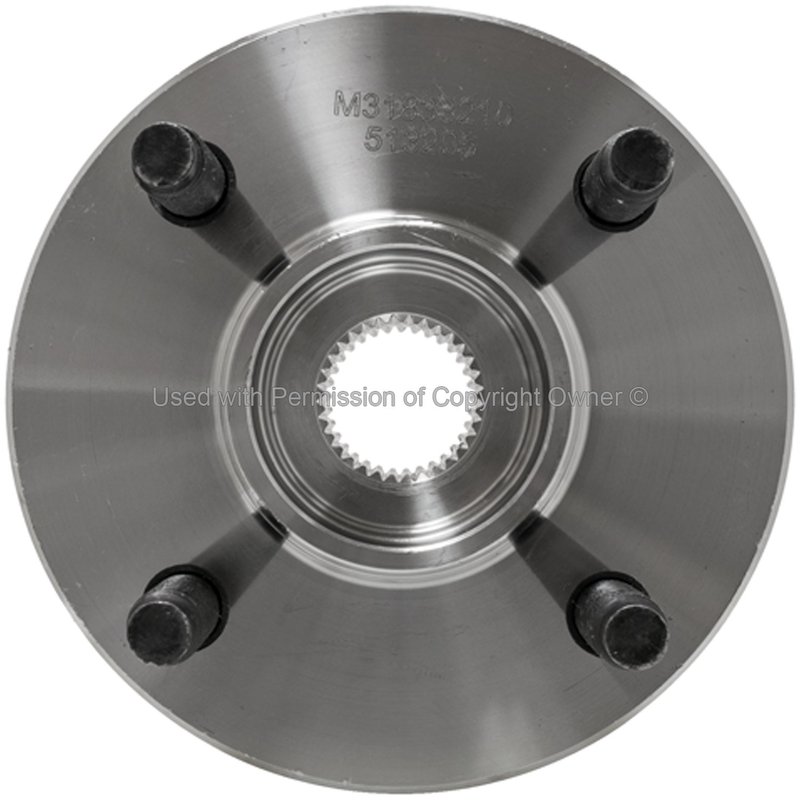

MPA Electrical WH513205 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Chevrolet, Pontiac, and Saturn

The MPA Electrical WH513205 wheel bearing and hub assembly is designed to provide dependable driveline performance for select Chevrolet, Pontiac, and Saturn models. Engineered with precision, this new steel hub assembly ensures proper fitment and durability for vehicles like the Chevrolet Cobalt, Pontiac G5, and Saturn Ion.

• 33 spline quantity for accurate drivetrain engagement
• Includes a triangle-shaped flange with 3 bolt holes
• Flange diameter of 5.187 inches and offset of 1.535 inches
• Equipped with 4 M12 x 1.5 wheel studs for secure wheel mounting
• Includes gasket or seal for enhanced protection against contaminants
• Constructed from durable steel material for long-lasting use
• New product condition ensuring reliable performance

Detailed Product Description

The MPA Electrical WH513205 wheel bearing and hub assembly is crafted from high-quality steel to withstand the rigors of daily driving and maintain vehicle stability. Featuring a 33 spline count, this assembly ensures precise drivetrain connection and smooth rotation. The included flange has a triangular shape with three bolt holes, each measuring 4.33 mm in diameter, and a flange diameter of 5.187 inches, providing a secure and exact fit. The flange offset of 1.535 inches is designed to match factory specifications for proper alignment. This assembly comes with four M12 x 1.5 wheel studs, allowing for secure wheel attachment. Additionally, the included gasket or seal helps protect internal components from dirt and moisture, extending the life of the hub assembly. This part does not include an anti-lock brake sensor or wiring harness and is not greaseable, matching original equipment design.

Compatible Vehicles and Common Applications

• Chevrolet Cobalt wheel bearing and hub replacement
• Pontiac G5 driveline hub assembly upgrade
• Saturn Ion front hub and bearing repair
• Chevrolet Pursuit wheel hub maintenance
• Pontiac G4 axle hub component replacement

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old hub assembly carefully, noting the orientation of the flange and wheel studs. Clean the mounting surface thoroughly to prevent misalignment. Verify the spline count and flange dimensions match the original part. Since this assembly is not greaseable, avoid applying additional grease unless specified by the vehicle manufacturer. Torque all bolts to factory specifications to ensure proper fit and function.

Quality Assurance and Warranty

MPA Electrical manufactures the WH513205 wheel bearing and hub assembly to meet or exceed OEM standards. Each unit is inspected for material integrity and dimensional accuracy. This new steel assembly is backed by MPA Electrical's quality control processes to ensure consistent performance. Warranty details should be confirmed with the product documentation or supplier.
