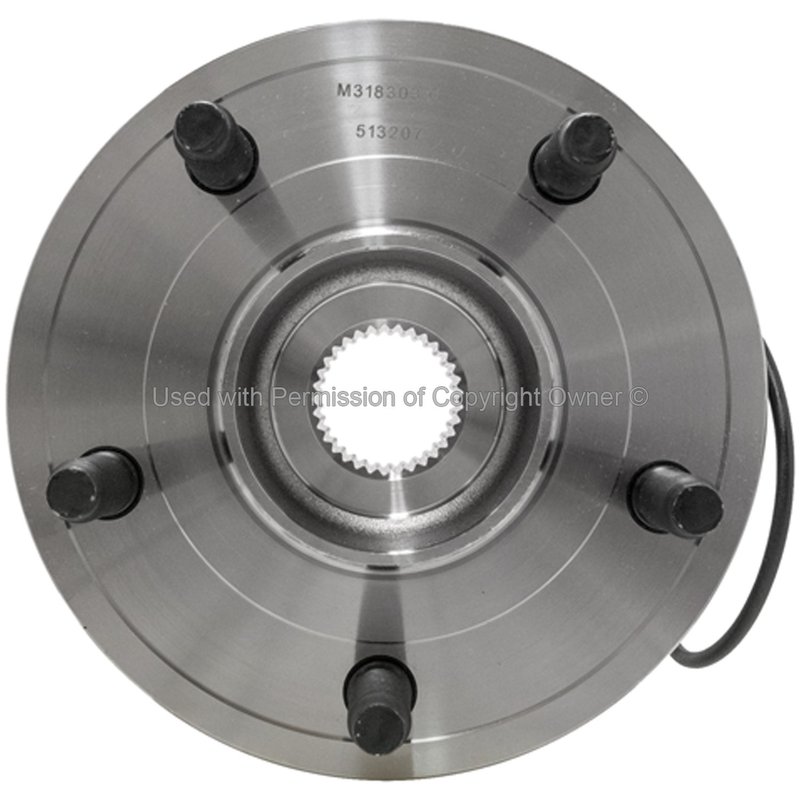

MPA Electrical WH513207 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Dodge Durango

The MPA Electrical WH513207 wheel bearing and hub assembly is designed specifically for Dodge Durango models, providing a precise fit and dependable performance. Engineered with a steel construction and integrated ABS sensor, this assembly ensures smooth wheel rotation and accurate braking system feedback.

• 33 spline quantity for secure drivetrain connection
• Includes flange with a triangular shape and 3 bolt holes
• Flange diameter of 7.208 inches and bolt hole diameter of 5.25 mm
• Equipped with an anti-lock braking system (ABS) sensor
• Includes gasket or seal for proper sealing
• 5 stud quantity for reliable wheel mounting
• Hub pilot diameter of 4.133 inches for precise alignment
• Flange offset of 1.92 inches to maintain correct wheel positioning
• New condition, non-greaseable steel construction

Detailed Product Description

The MPA Electrical WH513207 wheel bearing and hub assembly is crafted from durable steel to withstand the rigors of daily driving and off-road conditions. Its 33 spline count ensures a strong connection to the drivetrain, while the included flange with a triangular shape and three bolt holes provides secure mounting. The flange diameter measures 7.208 inches, with bolt holes sized at 5.25 mm, matching factory specifications for Dodge Durango vehicles.

This assembly features an integrated anti-lock braking system (ABS) sensor, which is included to maintain proper wheel speed monitoring and enhance vehicle safety. The product also comes with a gasket or seal to prevent contaminants from entering the bearing area, extending the life of the component. With five studs for wheel attachment and a hub pilot diameter of 4.133 inches, this assembly ensures precise wheel alignment and stability.

Compatible Applications and Common Issues Addressed

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Durango
• Resolves wheel noise or vibration caused by bearing wear
• Restores proper ABS sensor function to prevent braking system errors
• Fixes wheel play or looseness due to hub assembly failure
• Eliminates grease leakage and contamination with included gasket

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing wheel bearing and hub assembly carefully to avoid damage to surrounding components. Verify that the flange bolt holes and stud count match the replacement part. Since this assembly is non-greaseable, no additional lubrication is required during installation. Confirm ABS sensor wiring connections are intact and properly seated to maintain system functionality.

Quality Assurance and Warranty

The MPA Electrical WH513207 wheel bearing and hub assembly is supplied new and manufactured to meet OEM standards for fit and function. Constructed from high-quality steel, it offers durability and reliable performance for Dodge Durango vehicles. Warranty details are provided by the manufacturer and should be reviewed prior to installation to ensure coverage.
