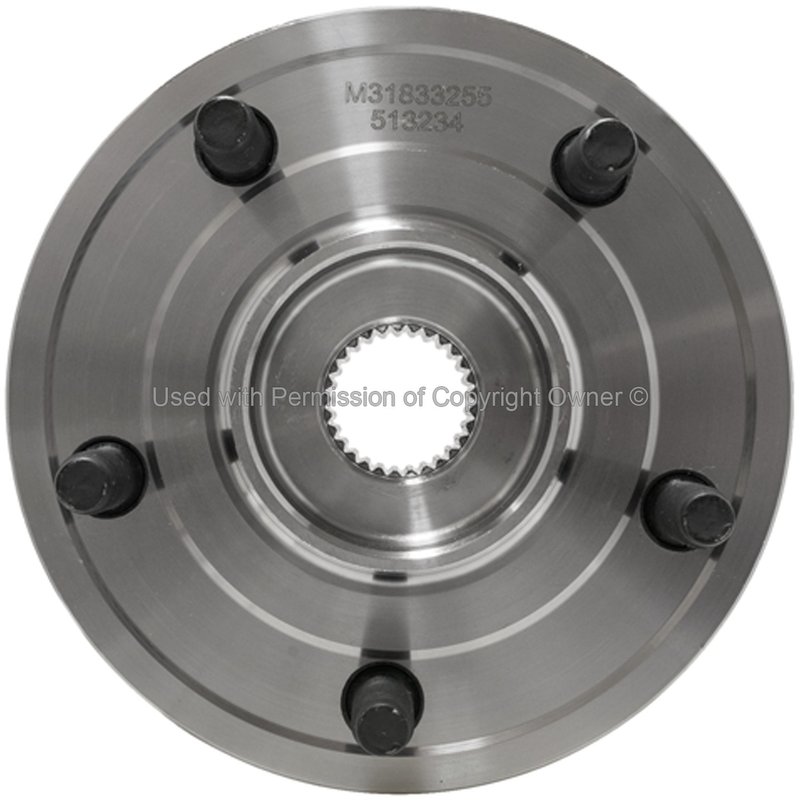

MPA Electrical WH513234 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Jeep Commander and Grand Cherokee

The MPA Electrical WH513234 wheel bearing and hub assembly is designed specifically for Jeep Commander and Grand Cherokee models. Engineered with precision, this new steel hub assembly includes an integrated ABS sensor and flange for seamless driveline performance.

Key Features of MPA Electrical WH513234 Wheel Hub Assembly

• 29 spline quantity for secure axle engagement
• Includes flange with a triangular shape and 3 bolt holes
• Flange bolt hole diameter of 4.74 mm and flange diameter of 6.49 inches
• Equipped with an anti-lock braking system (ABS) sensor for enhanced safety
• Gasket or seal included to ensure proper sealing and prevent contamination
• 5 stud quantity for reliable wheel mounting
• Hub pilot diameter of 3.939 inches for precise fitment
• Constructed from durable steel material
• Product condition: New, ready for installation

Detailed Description of the WH513234 Wheel Bearing and Hub Assembly

This MPA Electrical wheel bearing and hub assembly (part number WH513234) is engineered to meet the specific requirements of Jeep Commander and Grand Cherokee vehicles. The assembly features a 29-spline design that ensures a secure connection to the axle shaft, while the included flange with a triangular shape and three bolt holes provides a stable mounting surface. The flange offset of 2.048 inches and flange diameter of 6.49 inches are designed to match factory specifications for proper alignment and fit.

Equipped with an integrated ABS sensor, this hub assembly supports the vehicle’s anti-lock braking system, contributing to safer braking performance. The included gasket or seal helps maintain the integrity of the assembly by preventing dirt and moisture intrusion. Although this assembly is not greaseable, it is pre-lubricated and sealed for long-lasting operation. The steel construction offers strength and durability under demanding driving conditions.

Common Applications and Issues Addressed

• Replacement for worn or damaged wheel bearing and hub assemblies on Jeep Commander and Grand Cherokee
• Resolves wheel noise or vibration caused by bearing wear
• Restores proper ABS sensor function to maintain braking system performance
• Fixes wheel play or looseness due to hub assembly failure
• Prevents contamination and premature bearing failure with included gasket/seal

Installation Notes and Tips

Ensure compatibility by verifying the part number WH513234 with your Jeep Commander or Grand Cherokee model year and specifications. The assembly includes the flange and ABS sensor but does not come with a wiring harness. Proper torque specifications should be followed for the 3 flange bolt holes and 5 wheel studs during installation. Since the unit is not greaseable, avoid disassembling the sealed bearing to maintain warranty and performance.

Quality Assurance and Warranty Information

MPA Electrical provides this wheel bearing and hub assembly in new condition, manufactured to meet OEM standards for fit and function. The steel construction and integrated ABS sensor are tested to ensure durability and reliable operation. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
