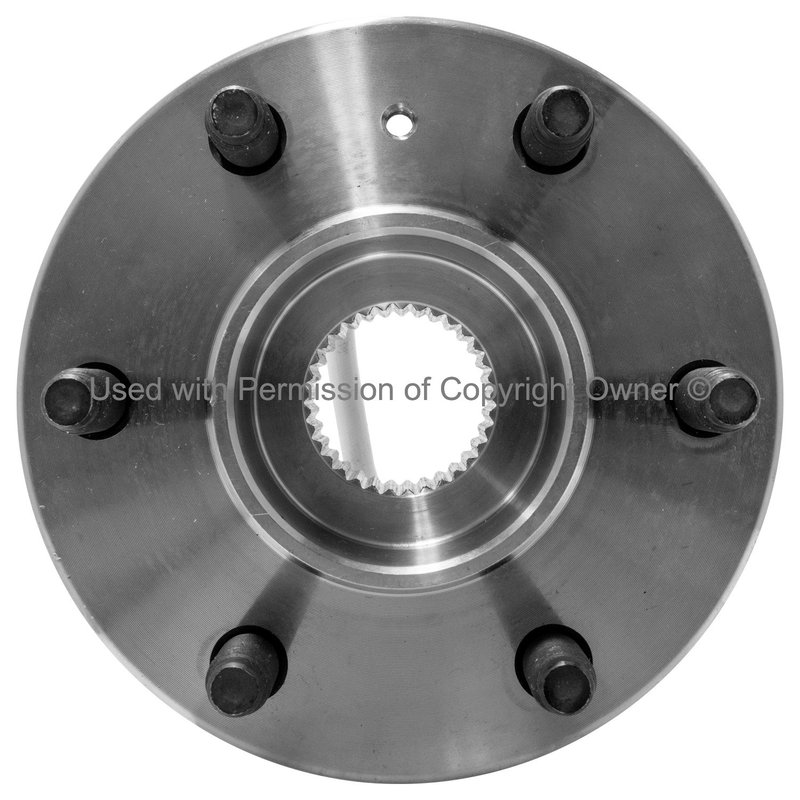

MPA Electrical WH513236 Wheel Bearing and Hub Assembly - Front or Rear

Reliable Wheel Bearing and Hub Assembly for GM Minivans

The MPA Electrical WH513236 wheel bearing and hub assembly is designed to provide precise fitment and dependable performance for select Buick, Chevrolet, Pontiac, and Saturn minivan models. Engineered with a steel construction and integrated ABS sensor, this assembly ensures smooth wheel rotation and accurate anti-lock braking system operation.

• Compatible with Buick Terraza, Chevrolet Montana, Relay, and Uplander models
• 33 spline count for secure axle engagement
• Includes flange with 3 bolt holes arranged in a triangle pattern
• Flange diameter of 5.738 inches and offset of 1.664 inches
• Equipped with an anti-lock brake sensor for ABS functionality
• Includes gasket or seal for proper sealing
• 6 wheel studs sized M12 x 1.5 for wheel mounting
• Hub pilot diameter of 3.57 inches for accurate hub centering

Product Details and Specifications

This new MPA Electrical wheel bearing and hub assembly (part number WH513236) is constructed from durable steel to withstand the rigors of daily driving. The flange is designed with a triangular bolt hole pattern featuring three holes, each with a diameter of 4.565 mm, ensuring a secure and stable connection to the vehicle’s knuckle. The assembly is not greaseable, which means it comes pre-lubricated and sealed for maintenance-free operation. The integrated ABS sensor supports the vehicle’s anti-lock braking system, providing reliable wheel speed data to enhance braking performance and safety.

Compatible Vehicles and Applications

• Buick Terraza wheel bearing and hub replacement
• Chevrolet Montana driveline hub assembly upgrade
• Pontiac Relay front or rear hub bearing installation
• Saturn Uplander wheel hub with ABS sensor included

Installation Notes and Tips

When installing the WH513236 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s knuckle. The included gasket or seal must be properly seated to prevent contamination and maintain bearing integrity. Since this assembly is not greaseable, avoid disassembling the unit to preserve the factory lubrication. Verify the ABS sensor connection and wiring harness compatibility, as this assembly does not include a wiring harness.

Quality Assurance and Warranty

MPA Electrical manufactures this wheel bearing and hub assembly to meet or exceed OEM specifications for fit, form, and function. The product is new and constructed from high-quality steel for durability. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Always consult the manufacturer or authorized distributor for warranty terms.
