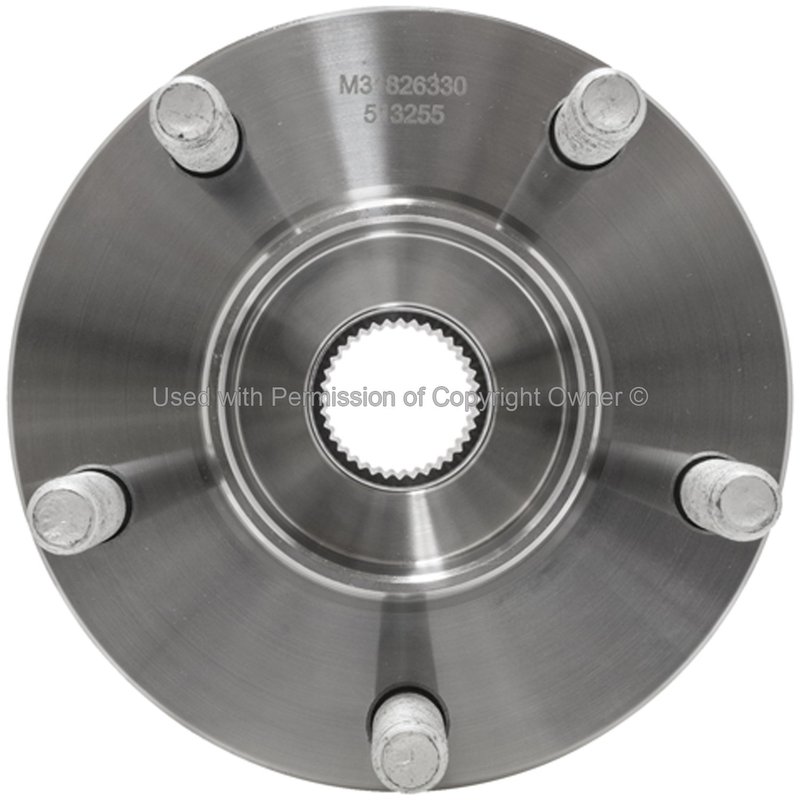

MPA Electrical WH513255 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Volvo Vehicles

The MPA Electrical WH513255 wheel bearing and hub assembly is designed specifically for Volvo models including the C30, C70, S40, and V50. Engineered with precision, this new steel assembly ensures proper fitment and performance for your driveline system.

• 36 spline quantity for secure drivetrain connection
• Includes flange with a 5.17-inch diameter and 2.82-inch flange offset
• Equipped with an encoder-type Anti Lock Braking System (ABS) for accurate wheel speed monitoring
• Comes with a gasket or seal to maintain system integrity
• Features 5 wheel studs sized M12 x 1.5 for reliable wheel mounting
• Hub pilot diameter measures 2.32 inches for precise alignment
• Constructed from durable steel material for long-lasting use

Detailed Product Description

The MPA Electrical WH513255 wheel bearing and hub assembly is a new, high-quality component designed to replace worn or damaged hubs on select Volvo vehicles. Its 36-spline design ensures a secure connection to the axle shaft, while the included flange with a 5.17-inch diameter and 2.82-inch offset provides proper wheel positioning. The assembly features an encoder-type ABS sensor interface, supporting your vehicle's anti-lock braking system without including the sensor itself. A gasket or seal is included to prevent contamination and maintain bearing lubrication. This assembly is not greaseable, relying on sealed bearings for maintenance-free operation. The 5 M12 x 1.5 wheel studs provide a secure mounting point for wheels, and the steel construction offers strength and durability under normal driving conditions.

Common Applications and Problem Resolution

• Replacement for worn or noisy wheel bearings on Volvo C30, C70, S40, and V50 models
• Fixes wheel hub play or looseness affecting vehicle stability
• Restores proper ABS functionality by ensuring correct encoder flange operation
• Addresses wheel vibration or uneven tire wear caused by hub assembly issues
• Prevents water and debris ingress with included gasket or seal

Installation Notes and Tips

Ensure compatibility with your Volvo C30, C70, S40, or V50 before installation. The assembly does not include an ABS sensor or wiring harness, so retain your existing components if applicable. Proper torque specifications for the M12 x 1.5 wheel studs should be followed to avoid damage. Since the hub is not greaseable, avoid disassembling the sealed bearing unit. Use appropriate tools to align the 2.32-inch hub pilot diameter for accurate fitment.

Quality Assurance and Warranty

This MPA Electrical WH513255 wheel bearing and hub assembly is supplied new and manufactured from steel to meet OEM standards. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality controls to ensure reliable performance and durability in Volvo driveline applications.
