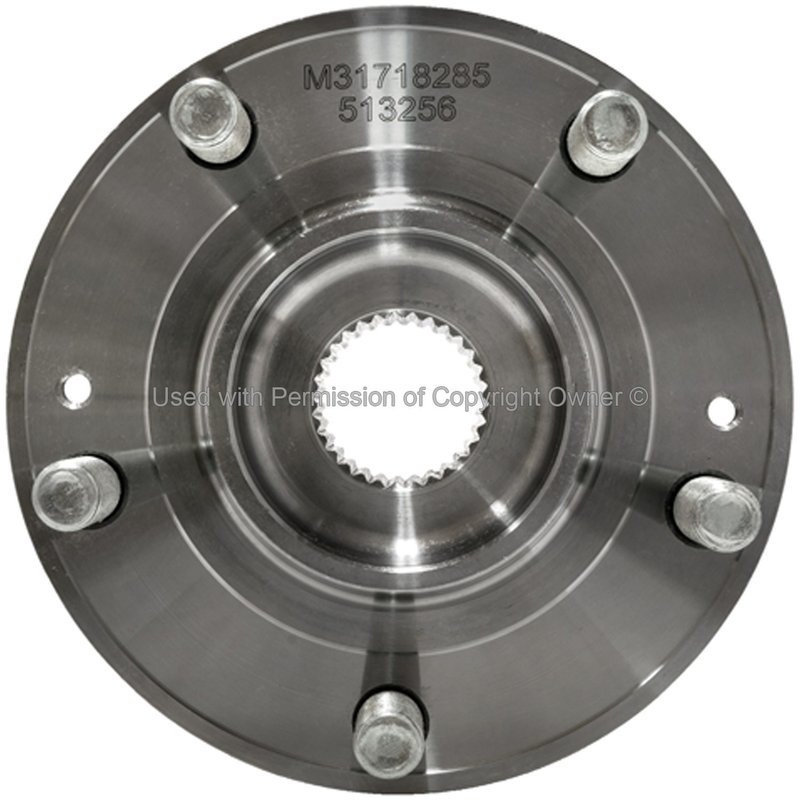

MPA Electrical WH513256 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Hyundai and Kia

MPA Electrical WH513256 is a new rear wheel bearing and hub assembly for select Hyundai and Kia applications. It is built with a steel hub, 30 splines, a 5-bolt flange, and a 5-stud wheel mounting pattern for direct replacement service on the rear axle.

Key Features

• Rear wheel bearing and hub assembly for select Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, Sorento, and Veracruz applications
• Steel construction with flange included
• 30 spline count and 5-stud wheel mounting pattern
• Rectangle flange shape with 4 flange bolt holes
• Gasket or seal included
• Hub pilot diameter: 3.62 in.
• Flange diameter: 5.48 in.
• Wheel stud size: M12 x 1.5
• Anti-lock brake sensor not included
• Wiring harness not included

Detailed Description

WH513256 is a Quality-Built hub and bearing assembly from MPA Electrical for rear-wheel service on 2007-2019 Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, Veracruz, and 2011-2015 Kia Sorento models. The assembly uses a steel hub design with an integrated flange, gasket or seal, and the specified 30-spline configuration for the listed rear applications. This part cross-references Hyundai/Kia OE numbers 51750-2B000 and 51750-2B010 for the same application.

For buyers searching for a rear wheel hub assembly for Hyundai Santa Fe or Kia Sorento, WH513256 provides the listed mounting dimensions and wheel stud specification needed for service replacement. The part number WH513256 is also a useful reference when matching the correct rear hub assembly by vehicle and axle configuration.

Common Repair Uses

• Rear wheel bearing noise or rough rotation
• Wheel play from a worn hub assembly
• Damaged wheel studs or hub flange mounting surfaces
• Service replacement after bearing wear on Hyundai Santa Fe and Kia Sorento rear axles
• Replacement of a rear hub assembly with the correct spline and flange dimensions

Installation Notes and Tips

Confirm rear fitment by year, model, and axle specification before installation. Follow the listed axle nut torque specification for the exact vehicle application: 170 ft-lbs / 230Nm for 2007 Hyundai Santa Fe, 188 ft-lbs / 255Nm for 2008-2010 Hyundai Santa Fe and 2011-2018 Hyundai Santa Fe, and 200 ft-lbs / 274Nm for 2007-2012 Hyundai Veracruz, 2011-2015 Kia Sorento, 2013-2018 Hyundai Santa Fe Sport, and 2019 Hyundai Santa Fe XL. WH513256 does not include an ABS sensor or wiring harness, so reuse or source those components as required by the vehicle.

Quality Assurance

MPA Electrical markets this part as a Quality-Built hub and bearing assembly, with new-condition construction and OE-style fitment details for the listed Hyundai and Kia rear applications. Verify the part number WH513256 against the vehicle before installation.
