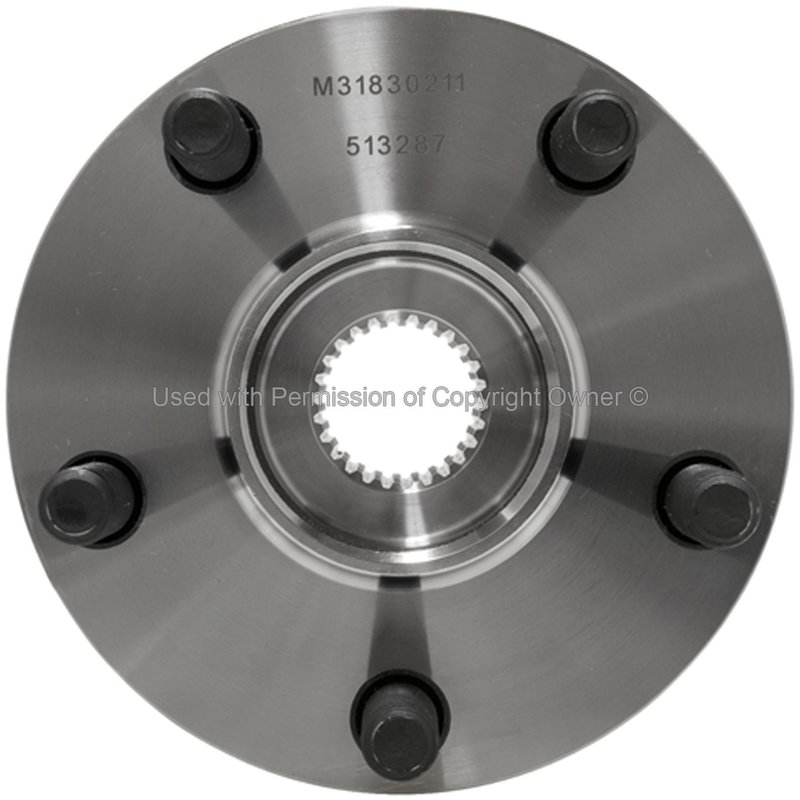

MPA Electrical WH513287 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Lexus and Toyota

The MPA Electrical WH513287 wheel bearing and hub assembly is designed specifically for Lexus CT200h and Toyota Prius models, including the Prius Plug-In. Engineered to meet OEM specifications, this new steel assembly ensures precise fitment and dependable performance for your vehicle's driveline system.

Key Features of MPA Electrical WH513287

• Compatible with Lexus CT200h, Toyota Prius, and Prius Plug-In models
• Steel construction for durability and strength
• 26 spline quantity for secure axle engagement
• Includes trapezoid-shaped flange with 4 bolt holes
• Flange diameter of 4.916 inches and offset of 1.852 inches
• Equipped with an anti-lock braking system (ABS) encoder type
• Includes gasket or seal for proper sealing
• 5 wheel studs sized M12 x 1.5 for reliable wheel attachment
• Hub pilot diameter of 3.305 inches for accurate alignment

Detailed Product Description

The MPA Electrical WH513287 wheel bearing and hub assembly is a precision-engineered component designed to replace worn or damaged hubs on select Lexus and Toyota vehicles. Constructed from high-quality steel, this assembly provides the necessary strength to withstand daily driving stresses. The trapezoid flange shape with four bolt holes ensures a secure connection to the vehicle’s suspension system. With a flange diameter of 4.916 inches and an offset of 1.852 inches, this hub assembly maintains proper wheel positioning and alignment.

Featuring a 26-spline axle interface, the assembly guarantees a tight fit with the axle shaft, reducing the risk of slippage or premature wear. The included gasket or seal helps prevent contamination and maintains lubrication within the bearing. This assembly is designed with an ABS encoder type sensor interface, although the ABS sensor itself is not included. The five M12 x 1.5 wheel studs provide a standard fit for wheel mounting, while the 3.305-inch hub pilot diameter ensures precise centering of the wheel.

Common Applications and Problem Resolution

• Replacement for worn or noisy wheel bearings on Lexus CT200h and Toyota Prius models
• Fixes wheel hub vibration or wobble issues
• Resolves ABS sensor encoder signal problems related to hub assembly
• Addresses wheel stud damage or corrosion
• Corrects improper wheel alignment caused by damaged hub flange

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old wheel bearing and hub assembly carefully to avoid damage to surrounding components. Clean the mounting surface thoroughly before installing the new MPA Electrical WH513287 assembly. Torque all flange bolts and wheel studs to manufacturer specifications. Note that this assembly is not greaseable and does not include a wiring harness or ABS sensor, so verify compatibility with your vehicle’s existing components.

Quality Assurance and Warranty

This MPA Electrical wheel bearing and hub assembly is supplied new and manufactured to meet or exceed OEM standards. The steel construction and precise engineering contribute to long service life and reliable operation. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Consult your supplier or vehicle service manual for additional warranty information.
