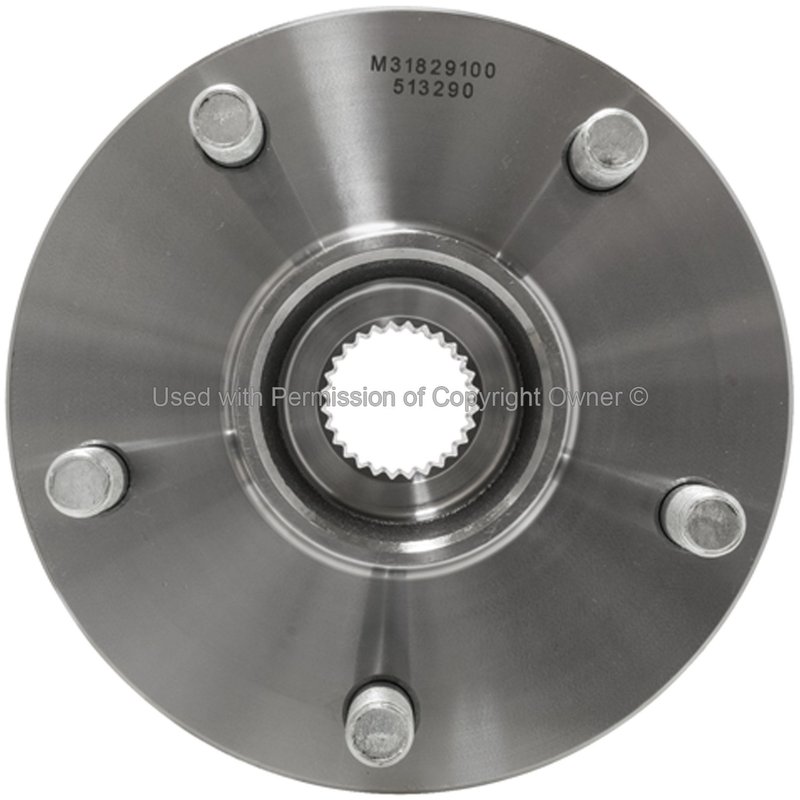

MPA Electrical WH513290 Wheel Bearing and Hub Assembly - Front or Rear

Reliable Wheel Bearing and Hub Assembly for Suzuki Grand Vitara

The MPA Electrical WH513290 wheel bearing and hub assembly is designed specifically for Suzuki Grand Vitara models. Engineered with precision, this new steel hub assembly ensures proper fitment and reliable driveline performance.

• Compatible with Suzuki Grand Vitara vehicles
• 28 spline quantity for secure axle engagement
• Includes a rectangular flange with 4 bolt holes
• Flange diameter of 5.45 inches and offset of 2.106 inches
• Equipped with an ABS encoder type for anti-lock braking systems
• Includes gasket or seal for proper sealing
• 5 wheel studs sized M12 x 1.25 for secure wheel mounting
• New steel construction for durability and strength

Product Details and Specifications

The MPA Electrical WH513290 wheel bearing and hub assembly features a 28-spline design that ensures a precise fit with the axle shaft of Suzuki Grand Vitara models. The flange is rectangular with four bolt holes, measuring 5.45 inches in diameter and offset by 2.106 inches, providing proper alignment and mounting surface for the wheel. This assembly includes a gasket or seal to maintain protection against contaminants and moisture. The hub pilot diameter measures 3.303 inches, ensuring accurate centering on the vehicle hub. The assembly is constructed from steel, offering strength and resistance to wear. It is designed with an ABS encoder type to interface with the vehicle’s anti-lock braking system, although it does not include the ABS sensor itself or a wiring harness. The assembly is not greaseable, which is typical for sealed hub units.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Suzuki Grand Vitara
• Resolves wheel noise or roughness caused by bearing wear
• Addresses ABS warning lights related to encoder issues
• Fixes wheel play or looseness due to hub failure
• Prevents water or dirt ingress with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing hub assembly carefully, noting the flange bolt pattern and stud size (M12 x 1.25). Clean the mounting surface thoroughly to ensure proper sealing with the included gasket. Since this assembly is not greaseable, no additional lubrication is required. Verify ABS encoder compatibility and sensor connections during reassembly. Torque all flange bolts to manufacturer specifications to maintain safety and performance.

Quality Assurance and Warranty

MPA Electrical provides this WH513290 wheel bearing and hub assembly in new condition, manufactured from durable steel to meet OEM standards. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality controls to ensure reliable performance and fitment for Suzuki Grand Vitara vehicles.
