MPA Electrical WH513297 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Nissan Sentra

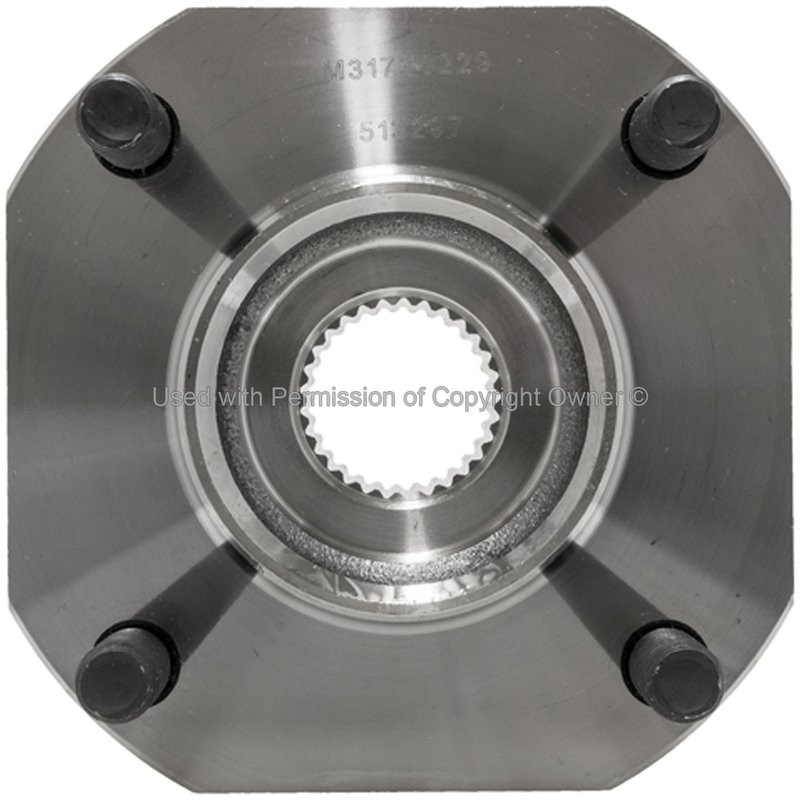

The MPA Electrical WH513297 wheel bearing and hub assembly is designed specifically for Nissan Sentra models, providing a precise fit and dependable performance. Engineered with a steel construction and integrated flange, this assembly supports smooth wheel rotation and vehicle stability.

• Compatible with Nissan Sentra vehicles
• 29 spline quantity for secure drivetrain connection
• Includes a modified rectangle flange with 4 bolt holes
• Flange diameter of 5.358 inches and offset of 1.605 inches
• Equipped with an encoder-type Anti Lock Braking System (ABS) sensor interface (sensor not included)
• Includes gasket or seal for proper sealing
• Steel material ensures durability and strength
• Wheel stud size M12 x 1.25 with 4 studs
• Hub pilot diameter of 3.147 inches for accurate alignment

Detailed Product Description

The MPA Electrical WH513297 wheel bearing and hub assembly is a new, high-quality replacement part designed to meet the specifications of Nissan Sentra vehicles. Its steel construction offers robust durability, while the 29-spline design ensures a secure connection to the drivetrain. The assembly features a modified rectangle flange shape with four bolt holes, providing a stable mounting surface. The flange diameter measures 5.358 inches with an offset of 1.605 inches, matching OEM dimensions for proper fitment. This assembly supports an encoder-type ABS system, allowing integration with the vehicle's anti-lock braking without including the sensor itself. Additionally, the included gasket or seal helps maintain a tight, leak-free installation. The wheel stud size is M12 x 1.25, with four studs to accommodate the wheel securely. The hub pilot diameter of 3.147 inches ensures precise centering of the wheel hub.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Nissan Sentra
• Addresses wheel noise or roughness caused by bearing wear
• Resolves ABS warning light issues related to hub encoder compatibility
• Fixes wheel vibration or looseness due to hub or flange damage
• Prevents grease leakage and contamination with included gasket/seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the mounting surface thoroughly to remove debris and old sealant. Verify the flange bolt hole alignment and torque bolts to manufacturer specifications. Since this assembly is not greaseable, avoid introducing contaminants during installation. Confirm ABS encoder compatibility and sensor condition before reassembly. Use proper tools to avoid damage to the splines and studs during installation.

Quality Assurance and Warranty

The MPA Electrical WH513297 wheel bearing and hub assembly is manufactured to meet OEM standards for fit, form, and function. It is supplied new and constructed from durable steel materials to ensure long service life. This product includes a gasket or seal to maintain proper sealing and prevent contamination. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
