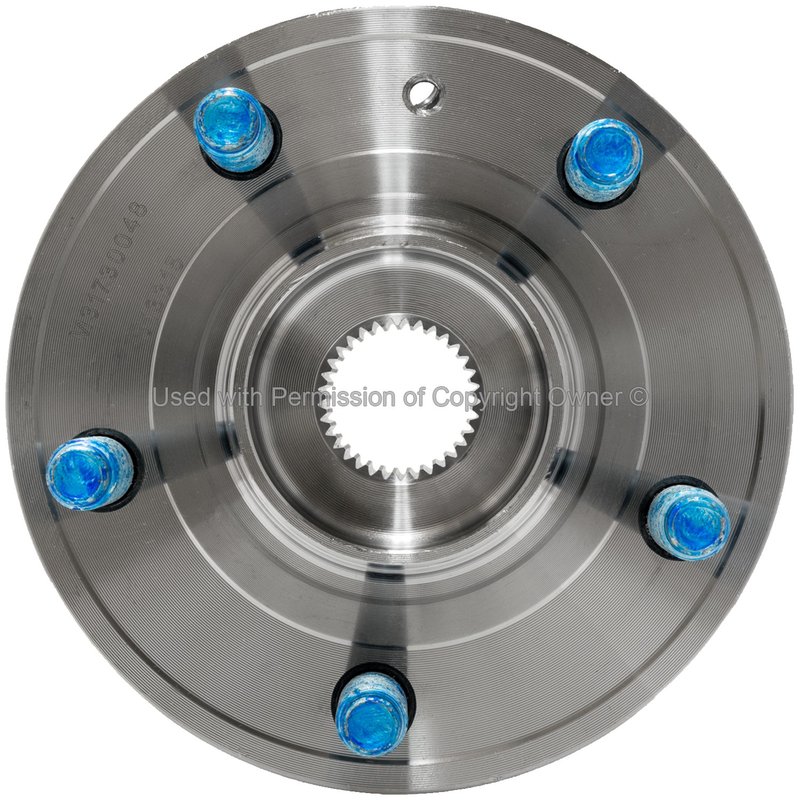

MPA Electrical WH513315 Wheel Bearing and Hub Assembly - Front
OE Quality 60-Day Returns
MPA Electrical

MPA Electrical WH513315 Wheel Bearing and Hub Assembly - Front

Brand MPA Electrical WH513315
Position Front
Spline Quantity 33
Flange Included Yes
Flange Bolt Hole Quantity 3
Flange Shape Triangle
Anti Lock Braking System Type Encoder
Anti Lock Brake Sensor Included No
Flange Bolt Hole Diameter 4.605
Flange Offset 1.663
Flange Diameter 5.359
Flange Diameter Inch 5.359
Gasket or Seal Included Yes
Greaseable No
Hub Pilot Diameter Inch 3.392
Material Steel
Product Condition New
Spline Quantity 33
Stud Quantity 5
Wheel Stud Size MM M12 x 1.5
Wiring Harness Included No
Fits Chevrolet · 15 vehicles

OE-style replacement. New wheel bearing and hub assembly for direct service replacement.

Encoder ABS design. Built with an integrated encoder interface and no sensor included.

Steel construction. Rigid hub body with flange and seal details for service use.

Cross-references 13500571 for the same application. See all 1.

$97.28Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $97.28
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options

Wheel Bearing Hub for Cruze Applications

This MPA Electrical wheel bearing and hub assembly, part number WH513315, is built for front-wheel service on select Chevrolet Cruze applications. It combines the hub, bearing, flange, and encoder-style ABS interface in a new steel assembly for direct replacement use.

Key Features

  • New steel wheel bearing and hub assembly for front service.
  • Encoder-style ABS design with no sensor included.
  • Integrated flange with 5 stud locations and M12 x 1.5 wheel studs.
  • Includes gasket or seal for the hub assembly.
  • 33-spline hub design for the specified applications.

Detailed Description

WH513315 is a wheel bearing and hub assembly engineered for Chevrolet Cruze and Chevrolet Cruze Limited front applications. It is listed for 2010-2016 Cruze and Cruze Limited models, including 2014-2016 Cruze Limited with 15-inch wheels and 2014-2015 Cruze with 15-inch wheels. The steel construction, triangle flange shape, and encoder ABS configuration make it a fitment-specific replacement for vehicles that use this hub design. This part cross-references 13500571 for the same application.

Common Issues This Part Can Address

  • Wheel bearing noise from a worn hub assembly.
  • ABS warning concerns related to the encoder hub design.
  • Excessive wheel play caused by hub wear.
  • Damaged or corroded flange mounting surfaces.
  • Improper wheel mounting from worn stud or hub interfaces.

Installation Notes and Tips

Confirm the vehicle’s wheel size and axle nut torque specification before installation. Some applications require the OE service manual procedure for final tightening. Verify spline count, flange dimensions, and ABS encoder style against the removed part before installation on Chevrolet Cruze and Cruze Limited models.

Quality Assurance

MPA Electrical identifies this as a Quality-Built hub and bearing assembly. Part number WH513315 is supplied as a new component for the listed fitments.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016ChevroletCruze Limited1.8LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2016ChevroletCruze Limited1.4LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015ChevroletCruze2.0LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015ChevroletCruze1.8LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015ChevroletCruze1.4LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014ChevroletCruze2.0LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014ChevroletCruze1.8LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014ChevroletCruze1.4LL4Frontw/ 15" Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2013ChevroletCruze1.8LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2013ChevroletCruze1.4LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2012ChevroletCruze1.8LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2012ChevroletCruze1.4LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2011ChevroletCruze1.8LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: First tighten to 111 ft-lbs / 150Nm, loosen 45 degrees and finally re-tighten to 185 ft-lbs / 250Nm
2011ChevroletCruze1.4LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: First tighten to 111 ft-lbs / 150Nm, loosen 45 degrees and finally re-tighten to 185 ft-lbs / 250Nm
2010ChevroletCruze1.8LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: First tighten to 111 ft-lbs / 150Nm, loosen 45 degrees and finally re-tighten to 185 ft-lbs / 250Nm
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
13500571
