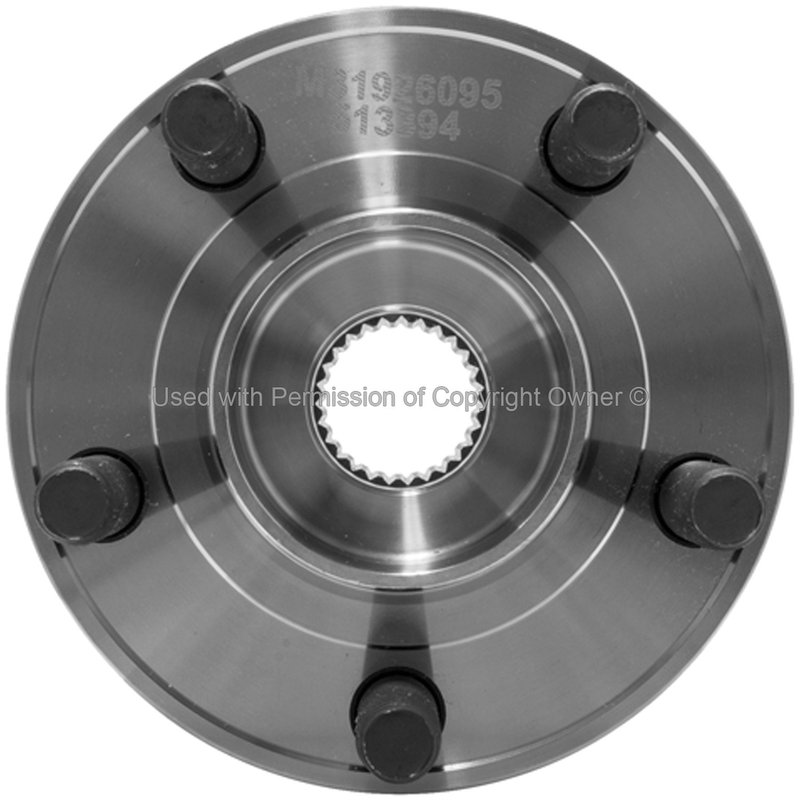

MPA Electrical WH513394 Wheel Bearing and Hub Assembly - Front or Rear

Reliable Wheel Bearing and Hub Assembly for Ford and Lincoln Vehicles

The MPA Electrical WH513394 wheel bearing and hub assembly is designed to provide precise fitment and dependable performance for select Ford and Lincoln models. Engineered with a steel construction and integrated flange, this assembly supports smooth wheel rotation and vehicle stability.

• Compatible with Ford Continental, Edge, Fusion and Lincoln MKX, MKZ, Nautilus
• 27 spline quantity for secure drivetrain connection
• Includes a rectangular flange with 4 bolt holes and 5 M14 x 1.5 wheel studs
• Flange diameter of 5.345 inches and flange offset of 1.894 inches
• Equipped with an anti-lock braking system (ABS) encoder type
• Includes gasket or seal for proper sealing
• New steel construction for durability and strength

Product Features and Specifications

This wheel bearing and hub assembly (part number WH513394) features a 27-spline design that ensures a secure fit with the vehicle’s driveline components. The flange is rectangular in shape, measuring 5.345 inches in diameter with a 1.894-inch offset, and includes 4 bolt holes for mounting. Five M14 x 1.5 wheel studs provide reliable wheel attachment. The assembly is designed with an ABS encoder type to interface with the vehicle’s anti-lock braking system, although it does not include the ABS sensor itself. A gasket or seal is included to maintain proper sealing and prevent contamination. The hub pilot diameter measures 3.426 inches, contributing to precise alignment during installation. This assembly is not greaseable and comes in a new condition, constructed from durable steel to withstand road conditions and vehicle demands.

Applications and Common Repair Uses

• Replacement of worn or damaged wheel bearing and hub assemblies on Ford Continental, Edge, Fusion and Lincoln MKX, MKZ, Nautilus models
• Resolving wheel noise or roughness caused by bearing wear
• Addressing ABS warning lights related to encoder issues (sensor not included)
• Fixing wheel play or looseness due to hub or bearing failure
• Restoring proper wheel alignment and rotation for improved vehicle handling

Installation Notes and Tips

Ensure compatibility with your specific Ford or Lincoln model before installation. The flange includes 4 bolt holes and 5 wheel studs sized M14 x 1.5, so verify torque specifications for your vehicle. The assembly is not greaseable, so no additional lubrication is required beyond factory specifications. Properly seat the gasket or seal to prevent contamination and maintain bearing integrity. Since the ABS sensor is not included, retain or replace the sensor separately if needed. Use appropriate tools to avoid damage to the flange or splines during installation.

Quality Assurance and Warranty Information

MPA Electrical wheel bearing and hub assemblies are manufactured to meet OEM standards for fit and function. This new steel assembly is built to provide reliable service life under normal operating conditions. While specific warranty details are not provided here, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
