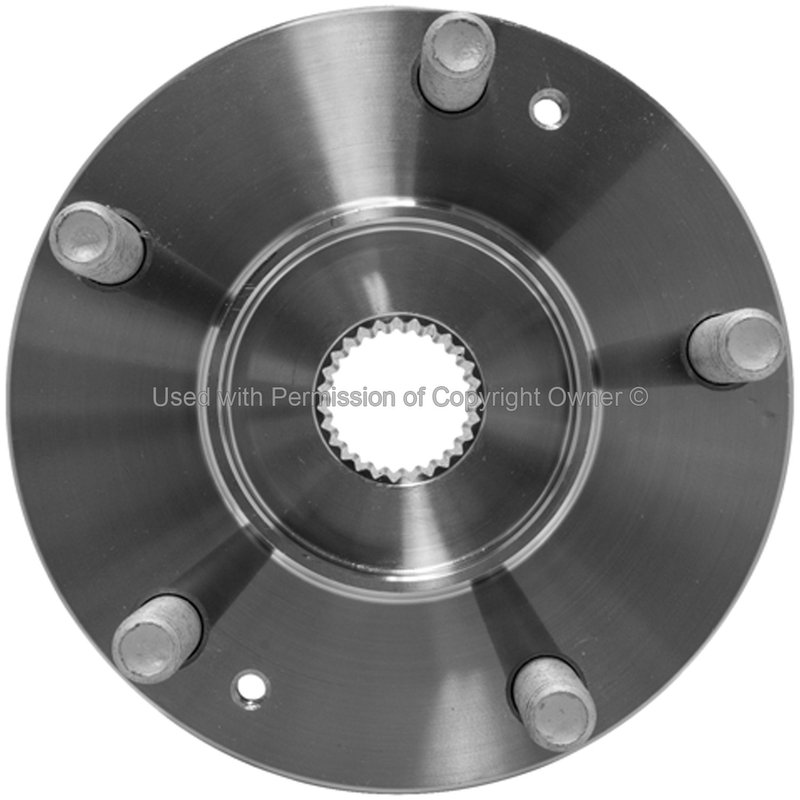

MPA Electrical WH513420 Wheel Bearing and Hub Assembly - Front or Rear

Reliable Wheel Bearing and Hub Assembly for Hyundai and Kia Vehicles

The MPA Electrical WH513420 wheel bearing and hub assembly is engineered to meet the specific needs of Hyundai and Kia models including the Elantra, Elantra GT, Forte, Ioniq, K4, Kona, Niro, Seltos, and Veloster. Designed with precision, this new steel assembly ensures proper fitment and performance for driveline and axle applications.

• 27 spline quantity for secure drivetrain connection
• Includes a triangle-shaped flange with 3 bolt holes
• Flange diameter of 5.46 inches and bolt hole diameter of 4.28 mm
• Equipped with an anti-lock braking system (ABS) encoder and sensor
• Includes gasket or seal for proper sealing
• 5 wheel studs sized M12 x 1.5 for reliable wheel mounting
• Hub pilot diameter of 3.22 inches for accurate alignment
• Flange offset of 1.51 inches to maintain correct positioning
• Constructed from durable steel material
• Product condition: New

Detailed Product Description

The MPA Electrical WH513420 wheel bearing and hub assembly is a direct replacement part designed for select Hyundai and Kia vehicles. Its 27-spline design ensures a secure connection to the axle shaft, while the included flange with a triangular shape and three bolt holes provides a stable mounting surface. The flange diameter measures 5.46 inches, with bolt holes sized at 4.28 mm, matching OEM specifications for proper fitment.

This assembly features an integrated anti-lock braking system (ABS) encoder and sensor, which are critical for maintaining vehicle stability and safety by providing accurate wheel speed data to the ABS control module. The included gasket or seal helps prevent contamination and maintains lubrication within the hub assembly. The 5 M12 x 1.5 wheel studs offer a secure attachment point for wheels, and the hub pilot diameter of 3.22 inches ensures precise alignment during installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Hyundai Elantra and Kia Forte models
• Restores proper ABS sensor function to prevent warning lights and braking issues
• Eliminates wheel noise or vibration caused by faulty bearings
• Corrects wheel alignment problems related to hub assembly wear
• Prevents grease leakage and contamination with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old hub assembly carefully, taking note of the ABS sensor wiring and connector. Clean the mounting surface thoroughly to ensure proper seating of the new flange and gasket. Torque all bolts and wheel studs to manufacturer specifications. Verify ABS sensor operation after installation to confirm proper functionality.

Quality Assurance and Warranty

The MPA Electrical WH513420 wheel bearing and hub assembly is manufactured from high-quality steel to meet OEM standards. This new part undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
