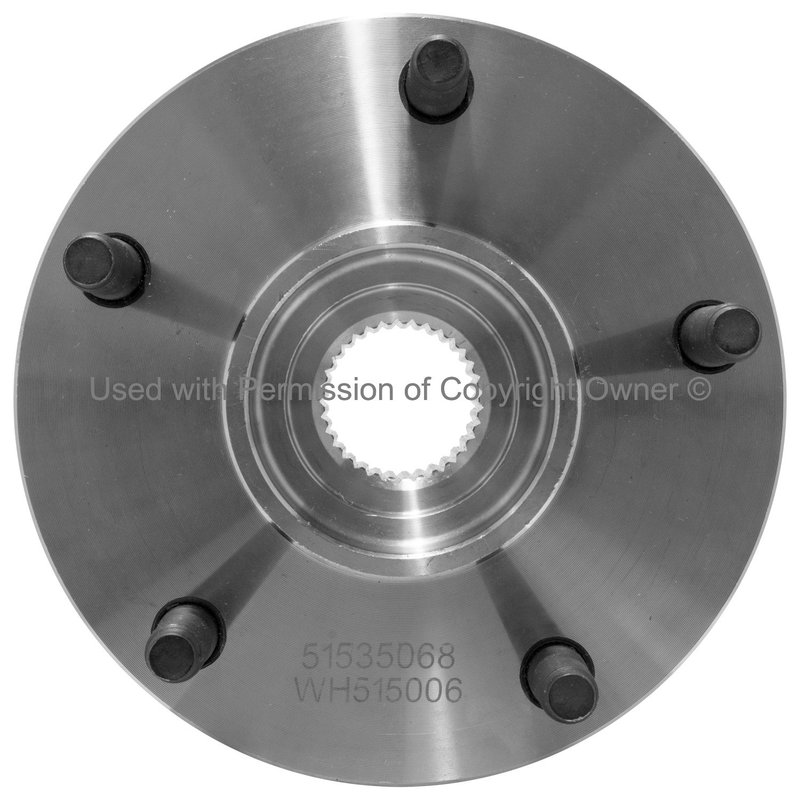

MPA Electrical WH515006 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Dodge Ram 1500

The MPA Electrical WH515006 wheel bearing and hub assembly is designed specifically for Dodge Ram 1500 models. Engineered with precision, this new steel hub assembly ensures proper fitment and reliable driveline performance.

• 33 spline quantity for accurate drivetrain engagement
• Includes a triangle-shaped flange with 3 bolt holes
• Flange diameter measures 6.783 inches with a 2.0-inch flange offset
• Equipped with a 5-stud configuration for secure wheel mounting
• Includes gasket or seal for enhanced protection against contaminants
• Hub pilot diameter of 3.91 inches for precise alignment
• Non-greaseable design for maintenance-free operation
• Does not include anti-lock brake sensor or wiring harness

Detailed Product Description

The MPA Electrical WH515006 wheel bearing and hub assembly is constructed from durable steel to withstand the demands of daily driving and heavy-duty use. Its 33 spline count ensures compatibility with the Dodge Ram 1500’s driveline components, providing smooth power transfer. The included flange features a triangle shape with three bolt holes, each measuring 4.96 mm in diameter, and a flange diameter of 6.783 inches, designed to match factory specifications. The 5-stud wheel mounting system offers secure attachment for wheels, while the included gasket or seal helps prevent dirt and moisture intrusion, extending the life of the assembly. This assembly is not greaseable and does not come with an anti-lock brake sensor or wiring harness, so it is intended for applications where these components are not required or are reused from the original setup.

Compatible Applications and Common Repairs

• Replacement of worn or damaged wheel bearing and hub assemblies on Dodge Ram 1500
• Eliminating wheel noise or vibration caused by bearing failure
• Addressing wheel hub looseness or play affecting vehicle handling
• Restoring proper wheel alignment and driveline engagement
• Repairing flange damage or corrosion impacting wheel mounting

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and stud count match the vehicle’s specifications. Clean the mounting surface thoroughly and inspect the axle splines for wear or damage. Since this assembly is non-greaseable, no additional lubrication is required during installation. Reuse the original anti-lock brake sensor and wiring harness if applicable, as these are not included with the WH515006 part.

Quality Assurance and Warranty

MPA Electrical manufactures the WH515006 wheel bearing and hub assembly to meet OEM standards for fit, form, and function. Each unit is new and constructed from high-quality steel to ensure durability and long service life. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
