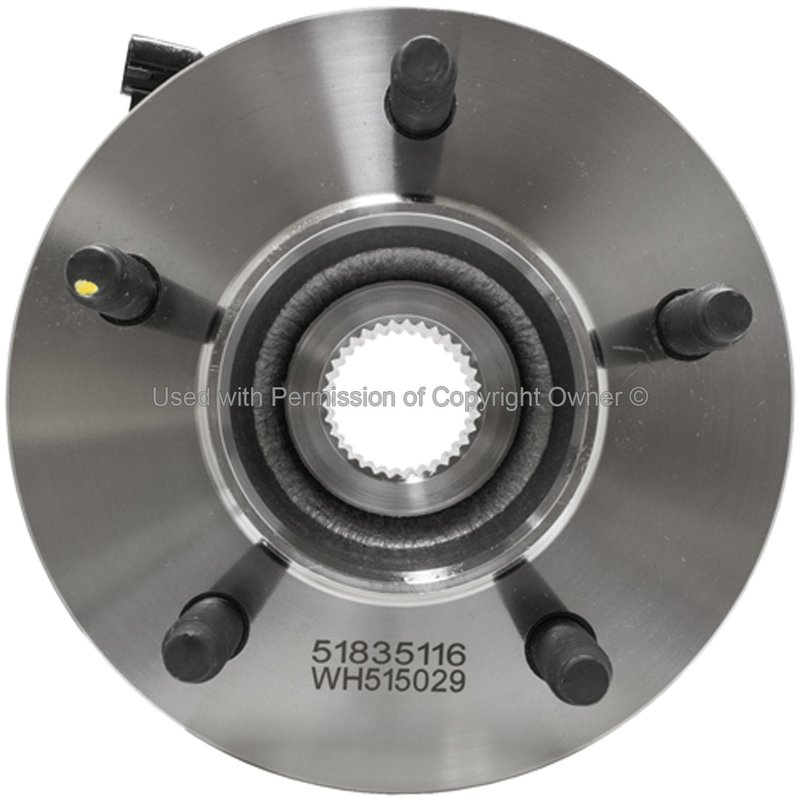

MPA Electrical WH515029 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Ford F-150

The MPA Electrical WH515029 wheel bearing and hub assembly is designed specifically for Ford F-150 and F-150 Heritage models. This new steel assembly includes a flange and an anti-lock braking system (ABS) sensor, ensuring compatibility with your vehicle's driveline and axle components.

• 33 spline quantity for precise fitment
• Includes flange with a triangular shape and 3 bolt holes
• Flange bolt hole diameter of 4.97 mm and flange diameter of 7.143 inches
• Equipped with an ABS sensor and sensor type for anti-lock braking system functionality
• Includes gasket or seal for proper installation
• 5 wheel studs sized M14 x 2.0 for secure wheel attachment
• Hub pilot diameter of 3.91 inches for accurate alignment
• Constructed from durable steel material
• Product condition: New

Detailed Product Description

The MPA Electrical WH515029 wheel bearing and hub assembly is engineered to meet the specific requirements of Ford F-150 and F-150 Heritage trucks. Featuring a 33-spline design, this assembly ensures a secure connection between the axle and wheel hub. The included flange has a triangular shape with three bolt holes, each measuring 4.97 mm in diameter, and a flange diameter of 7.143 inches, providing a precise fit for your vehicle's hub mounting surface.

This assembly also incorporates an anti-lock braking system (ABS) sensor, which is essential for maintaining proper ABS functionality and vehicle safety. The sensor is included and integrated into the hub assembly, eliminating the need for separate components. Additionally, the product comes with a gasket or seal to help prevent contaminants from entering the bearing area, contributing to longer service life.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford F-150 and F-150 Heritage
• Resolves wheel noise or vibration issues caused by bearing wear
• Restores proper ABS sensor function to maintain braking system performance
• Addresses wheel hub looseness or play affecting vehicle handling
• Prevents grease leakage and contamination with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing wheel bearing and hub assembly carefully to avoid damage to surrounding components. Verify that the flange bolt holes and stud sizes match the specifications of the MPA Electrical WH515029 assembly. Since this assembly is not greaseable, no additional lubrication is required beyond factory specifications. Confirm ABS sensor connections are properly seated and secured during installation.

Quality Assurance and Warranty

MPA Electrical provides this wheel bearing and hub assembly in new condition, manufactured from durable steel to meet OEM standards. The inclusion of the ABS sensor and gasket ensures compatibility and reliability for Ford F-150 and F-150 Heritage models. Please refer to MPA Electrical's warranty policy for coverage details on this part number WH515029.
