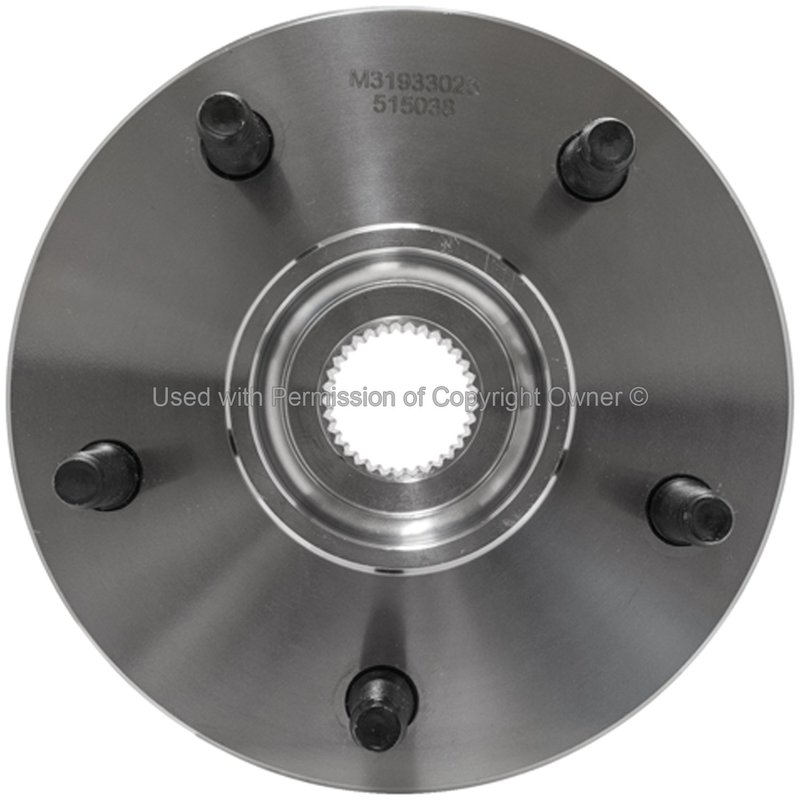

MPA Electrical WH515038 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Dodge Ram 1500

The MPA Electrical WH515038 wheel bearing and hub assembly is designed specifically for Dodge Ram 1500 models. Engineered with precision, this new steel hub assembly ensures proper fitment and reliable driveline performance.

• 33 spline quantity for secure axle engagement
• Includes a triangle-shaped flange with 3 bolt holes
• Flange diameter of 7.2 inches and bolt hole diameter of 4.96 mm
• Flange offset of 2.0 mm for accurate alignment
• Equipped with 5 studs for wheel mounting
• Includes gasket or seal for protection against contaminants
• Constructed from durable steel material
• Non-greaseable design for maintenance-free operation
• Does not include anti-lock brake sensor or wiring harness

Detailed Product Description

The MPA Electrical WH515038 wheel bearing and hub assembly is a direct replacement part designed to meet the specifications of the Dodge Ram 1500. Featuring a 33 spline count, this assembly ensures a secure connection to the axle shaft. The included flange has a triangular shape with three bolt holes, each measuring 4.96 mm in diameter, and a flange diameter of 7.2 inches, providing a precise fit for the vehicle's hub mounting. The flange offset of 2.0 mm helps maintain proper wheel alignment and driveline geometry. Made from high-quality steel, this new hub assembly offers durability and resistance to wear. It comes with a gasket or seal to prevent dirt and moisture intrusion, although it is not greaseable and does not include an anti-lock brake sensor or wiring harness.

Compatible Applications and Common Issues Addressed

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 1500
• Resolves wheel vibration or noise caused by bearing wear
• Fixes wheel hub looseness or play affecting vehicle handling
• Addresses ABS sensor issues by replacing hub assemblies without integrated sensors
• Restores proper flange alignment and wheel mounting integrity

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing wheel bearing and hub assembly carefully to avoid damage to surrounding components. Verify the spline count and flange specifications match the replacement part WH515038. Use proper torque specifications for flange bolts and wheel studs to maintain safety and performance. Since this assembly is non-greaseable, no additional lubrication is required during installation.

Quality Assurance and Warranty

MPA Electrical manufactures the WH515038 wheel bearing and hub assembly to meet OEM standards for fit and function. This new steel assembly is supplied in new condition and includes a gasket or seal to ensure long-lasting performance. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality controls to support reliable operation on Dodge Ram 1500 vehicles.
