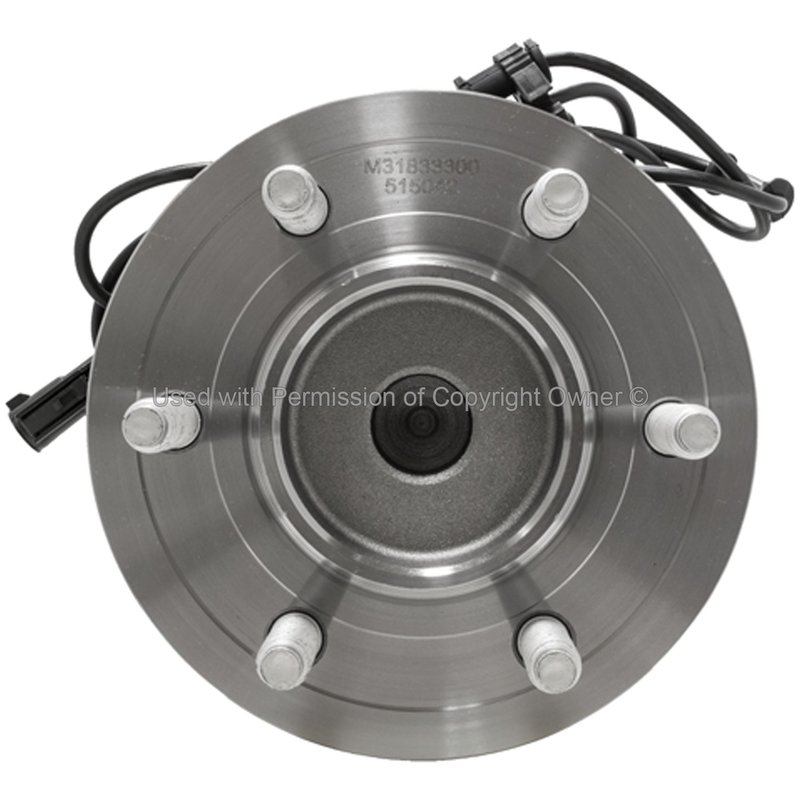

MPA Electrical WH515042 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Ford Expedition and Lincoln Navigator

The MPA Electrical WH515042 wheel bearing and hub assembly is designed to provide dependable performance for your Ford Expedition or Lincoln Navigator. Engineered with precision, this new steel hub assembly includes a flange and anti-lock brake sensor to ensure proper fit and function.

• Includes flange with modified square shape and 4 bolt holes
• Flange bolt hole diameter: 6.0 mm, flange diameter: 7.201 inches
• Equipped with anti-lock braking system (ABS) sensor included
• Steel construction for durability and strength
• 6 wheel studs sized M14 x 2.0 for secure wheel mounting
• Gasket or seal included for proper sealing
• Non-greaseable design for maintenance-free operation

Product Details and Specifications

The WH515042 wheel bearing and hub assembly from MPA Electrical is crafted from steel to withstand the rigors of daily driving and heavy loads. The flange features a modified square shape with four bolt holes, each 6.0 mm in diameter, and a flange diameter of 7.201 inches, ensuring a precise fit on compatible vehicles. This assembly includes an anti-lock brake sensor, which is essential for maintaining ABS functionality on Ford Expedition and Lincoln Navigator models. The hub pilot diameter measures 3.909 inches, and the flange offset is 1.8, designed to match factory specifications. The assembly comes with a gasket or seal to prevent contaminants from entering the bearing area. Note that this part is not greaseable, which aligns with many modern sealed hub designs.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Ford Expedition
• Lincoln Navigator

It is intended for use in driveline and axle systems, specifically replacing worn or damaged wheel bearing and hub assemblies. Common issues this part addresses include:

• Excessive wheel play or looseness
• Noise or grinding from the wheel area
• ABS warning light due to faulty sensor or hub
• Vibration or wobbling during driving
• Leaking seals causing contamination of the bearing

Installation Notes and Tips

When installing the MPA Electrical WH515042 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the old hub assembly carefully, taking note of the ABS sensor wiring and flange bolt pattern. This assembly includes the flange and gasket, but no wiring harness is included, so reuse the existing ABS sensor wiring. Torque all bolts to manufacturer specifications and verify ABS sensor functionality after installation.

Quality Assurance and Warranty

MPA Electrical provides this wheel bearing and hub assembly in new condition, manufactured to meet OEM standards. The steel construction and included ABS sensor ensure reliable operation. While specific warranty details are not provided, MPA Electrical parts typically come with a limited warranty against defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
