MPA Electrical WH515056 Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns
MPA Electrical WH515056 Wheel Bearing and Hub Assembly - Front - view 1
MPA Electrical WH515056 Wheel Bearing and Hub Assembly - Front - view 2
MPA Electrical WH515056 Wheel Bearing and Hub Assembly - Front - view 3
MPA Electrical WH515056 Wheel Bearing and Hub Assembly - Front - view 4
Part #: WH515056

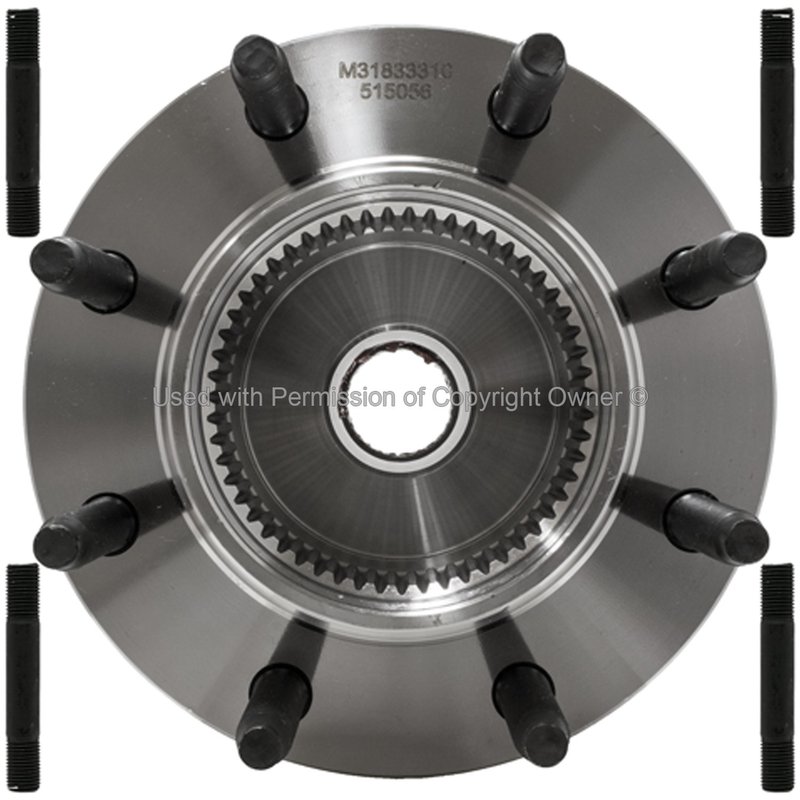

MPA Electrical WH515056 Wheel Bearing and Hub Assembly - Front

Front
⚙️ 53 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$167.84Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, Excursion, F-250 Super Duty, and F-350 Super Duty
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options

Reliable Wheel Bearing and Hub Assembly for Ford Trucks

The MPA Electrical WH515056 wheel bearing and hub assembly is engineered to meet the demands of heavy-duty Ford vehicles. Designed specifically for Ford Excursion, F-250 Super Duty, and F-350 Super Duty models, this new steel hub assembly ensures precise fitment and reliable performance.

  • Compatible with Ford Excursion, F-250 Super Duty, and F-350 Super Duty
  • 55 spline count for secure axle engagement
  • Includes a modified square flange with 4 bolt holes
  • Equipped with an anti-lock braking system (ABS) sensor
  • Flange diameter of 8.0 inches and flange offset of 2.15 inches
  • Includes gasket/seal for proper sealing
  • 8 wheel studs sized M14 x 1.5 for secure wheel mounting
  • Constructed from durable steel material

Detailed Product Features and Specifications

The WH515056 wheel bearing and hub assembly from MPA Electrical is built with a 55 spline axle interface, ensuring a tight and reliable connection to the drivetrain. The assembly features a modified square flange design with four 5.5 mm diameter bolt holes, providing a stable mounting surface. The flange diameter measures 8.0 inches with a 2.15-inch offset, designed to match the original equipment specifications for Ford heavy-duty trucks.

This hub assembly includes an integrated anti-lock braking system (ABS) sensor, which is essential for maintaining proper ABS function and vehicle safety. The ABS sensor is pre-installed, eliminating the need for separate sensor purchases. Additionally, the assembly comes with a gasket or seal to prevent contamination and maintain bearing integrity. The hub pilot diameter is 4.48 inches, ensuring proper alignment during installation.

Applications and Common Repair Solutions

  • Replacement for worn or damaged wheel bearing and hub assemblies on Ford Excursion, F-250 Super Duty, and F-350 Super Duty
  • Resolves wheel vibration or noise caused by bearing wear
  • Restores proper ABS sensor function to maintain braking safety
  • Fixes wheel hub looseness or play affecting vehicle handling
  • Addresses seal failure to prevent grease leakage and contamination

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel studs align correctly with the vehicle hub. Since this assembly is not greaseable, avoid introducing contaminants during installation. Check the ABS sensor wiring and connectors for proper connection after installation. Use a torque wrench to tighten flange bolts and wheel studs to manufacturer specifications to ensure safe operation.

Quality Assurance and Warranty Information

MPA Electrical provides this wheel bearing and hub assembly in new condition, manufactured from high-quality steel to meet OEM standards. The inclusion of the ABS sensor and gasket ensures compatibility and durability. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality standards for driveline components.

BrandMPA Electrical
Part NumberWH515056
Spline Quantity55
Flange IncludedYes
Flange Bolt Hole Quantity4
Flange ShapeModified square
Anti Lock Braking System TypeSensor
Anti Lock Brake Sensor IncludedYes
Flange Bolt Hole Diameter5.5
Flange Offset2.15
Flange Diameter8.0
Flange Diameter Inch8.0
Gasket or Seal IncludedYes
GreaseableNo
Hub Pilot Diameter Inch4.48
MaterialSteel
Product ConditionNew
Spline Quantity55
Stud Quantity8
Wheel Stud Size MMM14 x 1.5
Wiring Harness IncludedNo

This part fits 53 vehicles. Search below:

YearMakeModelDrive TypeLitersCylindersPositionNotes
2005FordExcursion4WD6.8LV10Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2005FordExcursion4WD6.0LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2005FordExcursion4WD5.4LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordExcursion4WD6.8LV10Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordExcursion4WD6.0LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordExcursion4WD5.4LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-250 Super Duty4WD6.0LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-350 Super Duty4WD6.0LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2004FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordExcursion4WD7.3LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordExcursion4WD6.8LV10Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordExcursion4WDFrontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordExcursion4WD5.4LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-250 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-250 Super Duty4WDFrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-350 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-350 Super Duty4WDFrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2003FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordExcursion4WD7.3LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordExcursion4WD6.8LV10Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordExcursion4WD5.4LV8Frontw/ Fine Thread Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-250 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-350 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2002FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordExcursion4WD7.3LV8Front
2001FordF-250 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordF-350 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2001FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordExcursion4WD7.3LV8Front
2000FordF-250 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordF-350 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
2000FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs); Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-250 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-250 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-250 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-350 Super Duty4WD7.3LV8FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-350 Super Duty4WD6.8LV10FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.
1999FordF-350 Super Duty4WD5.4LV8FrontSingle Rear Wheels (Fine Thread Studs), From 3/22/99; Wheel Hub Assembly; Axle Nut Torque Spec: Tighten nut to 30 ft-lbs / 40Nm while turning wheel. Back off 2 turns. Tighten to 17-24 ft-lbs / 22-34Nm while rotating brake disc. Loosen nut 175 degrees. Then tighten nut to 17 in-lbs. / 2Nm.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

192412542HF150563C34-2B513BA3C34-2B513BB3C34-2B513BC3C3Z-1104BA3C3Z1104A

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
