MPA ElectricalPart #: WH515060

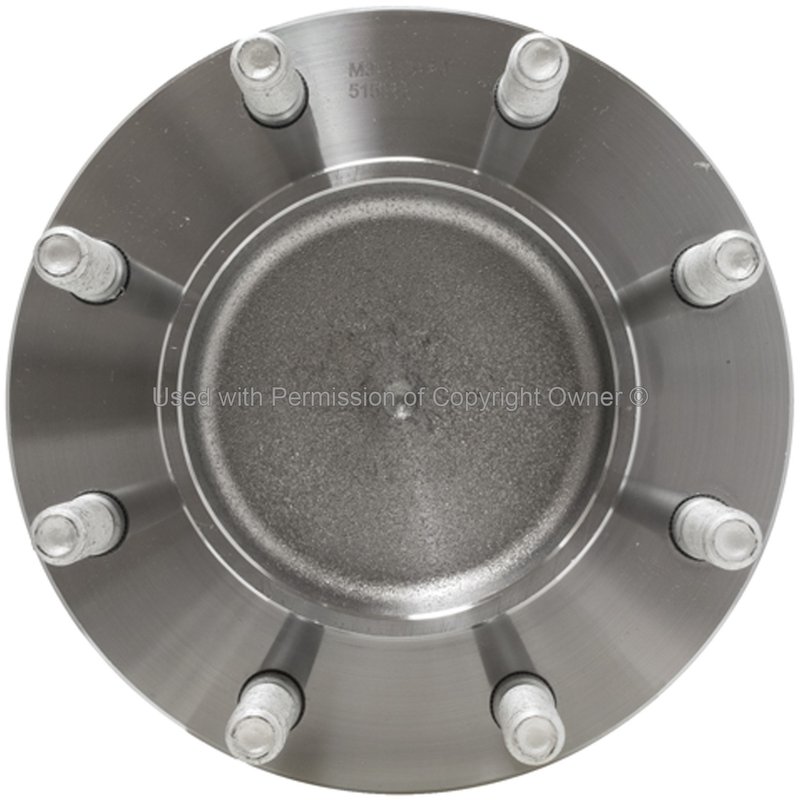

MPA Electrical WH515060 Wheel Bearing and Hub Assembly - Front
⚙️ 78 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$135.46Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Express 3500 and Savana 3500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
Reliable Wheel Bearing and Hub Assembly for Chevrolet and GMC Vans
The MPA Electrical WH515060 wheel bearing and hub assembly is designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. This new steel assembly includes a flange and an anti-lock brake sensor, ensuring compatibility with your vehicle's ABS system for accurate wheel speed monitoring.
- Includes flange with a square shape and 4 bolt holes
- Flange bolt hole diameter of 5.5 mm and flange diameter of 7.845 inches
- Equipped with an anti-lock brake sensor for ABS functionality
- Comes with a gasket or seal for proper installation
- Features 8 wheel studs sized M14 x 1.5
- Hub pilot diameter measures 4.16 inches
- Non-greaseable steel construction for durability
Detailed Product Description
The MPA Electrical WH515060 wheel bearing and hub assembly is engineered to meet the specific requirements of Chevrolet Express 3500 and GMC Savana 3500 vans. Constructed from durable steel, this assembly features a square flange with four bolt holes, each 5.5 mm in diameter, and a flange diameter of 7.845 inches. The flange offset is 2.565 inches, ensuring proper alignment and fitment. This assembly includes an integrated anti-lock brake sensor, which is essential for maintaining the functionality of your vehicle's ABS system. Additionally, the product comes with a gasket or seal to help prevent contaminants from entering the bearing area. The assembly is designed with eight M14 x 1.5 wheel studs, providing secure wheel attachment. Note that this part is not greaseable, which aligns with many OEM specifications for sealed hub assemblies.
Common Applications and Problem Resolution
- Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Express 3500 and GMC Savana 3500
- Restores proper ABS sensor function to prevent warning lights and braking issues
- Eliminates wheel noise or vibration caused by faulty bearings
- Addresses wheel hub looseness or play affecting vehicle stability
- Prevents grease leakage and contamination with included gasket or seal
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match your vehicle specifications. Since this assembly includes an ABS sensor, carefully connect the sensor wiring to avoid damage. Use the included gasket or seal to maintain proper sealing and prevent contamination. Follow torque specifications for flange bolts and wheel studs as outlined in the vehicle service manual.
Quality Assurance and Warranty
The MPA Electrical WH515060 wheel bearing and hub assembly is a new, high-quality replacement part manufactured from steel for durability and long service life. It is designed to meet or exceed OEM standards for fit and function on Chevrolet Express 3500 and GMC Savana 3500 models. While specific warranty details are not provided, MPA Electrical products typically come with manufacturer-backed quality assurance to support reliable performance.
| Brand | MPA Electrical |
| Part Number | WH515060 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Square |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Bolt Hole Diameter | 5.5 |
| Flange Offset | 2.565 |
| Flange Diameter | 7.845 |
| Flange Diameter Inch | 7.845 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 4.16 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 8 |
| Wheel Stud Size MM | M14 x 1.5 |
| Wiring Harness Included | No |
This part fits 78 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2015 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | Chevrolet | Express 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | GMC | Savana 3500 | RWD | 6.6L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2006 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2005 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2005 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2005 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2005 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2005 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2004 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2004 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2004 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2004 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2004 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2003 | Chevrolet | Express 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2003 | Chevrolet | Express 3500 | RWD | 5.3L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2003 | Chevrolet | Express 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2003 | GMC | Savana 3500 | RWD | 6.0L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2003 | GMC | Savana 3500 | RWD | 4.8L | V8 | Front | w/ 8 Wheel Studs, Over 9,600 GVWR; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
1806114819285110258538982HF1506084231008
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
