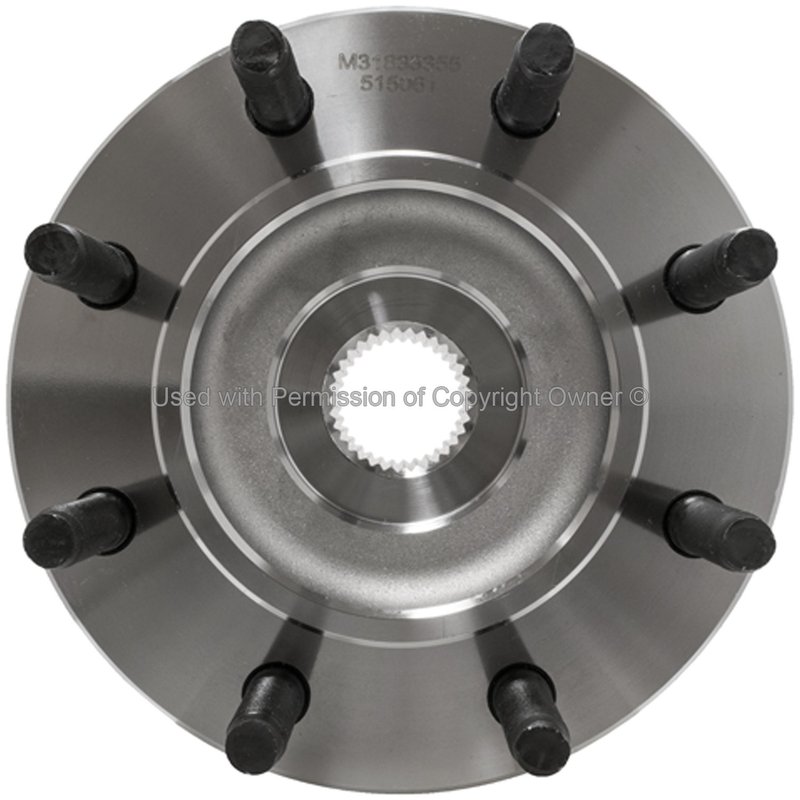

MPA Electrical WH515061 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Dodge Ram Trucks

The MPA Electrical WH515061 wheel bearing and hub assembly is designed specifically for Dodge Ram 2500 and Ram 3500 models. Engineered with precision, this new steel hub assembly ensures proper fitment and reliable performance for your heavy-duty truck's driveline system.

• 33 spline quantity for accurate drivetrain engagement
• Includes flange with 4 bolt holes and modified square shape
• Flange diameter of 8.075 inches and bolt hole diameter of 5.51 mm
• Equipped with an anti-lock braking system (ABS) sensor and included ABS sensor for enhanced safety
• Flange offset of 2.14 inches for proper alignment
• Includes gasket or seal to maintain system integrity
• Steel construction for durability and strength
• 8 stud quantity for secure wheel mounting

Detailed Product Description

The WH515061 wheel bearing and hub assembly from MPA Electrical is a direct replacement part designed to meet the specifications of Dodge Ram 2500 and Ram 3500 trucks. Constructed from steel, this assembly features a 33-spline interface that ensures precise connection with the drivetrain components. The flange is designed in a modified square shape with four bolt holes, each measuring 5.51 mm in diameter, and an overall flange diameter of 8.075 inches. This configuration supports proper wheel mounting and alignment.

Additionally, the assembly includes an anti-lock braking system (ABS) sensor, which is critical for maintaining vehicle stability and braking performance. The included gasket or seal helps prevent contamination and maintains the integrity of the hub assembly. With eight studs, this hub assembly provides a secure fit for your wheels, contributing to safe and reliable operation.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 2500 and Ram 3500
• Addresses issues related to wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function to maintain braking system performance
• Solves wheel alignment problems due to flange or hub damage
• Prevents grease or seal leakage with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and stud pattern match your specific Dodge Ram 2500 or Ram 3500 model. Clean the mounting surface thoroughly before installing the new hub assembly to ensure proper sealing. Since this assembly is not greaseable, avoid contamination during installation. Confirm ABS sensor connections are properly seated and functioning after installation.

Quality Assurance and Warranty

This MPA Electrical WH515061 wheel bearing and hub assembly is a new, high-quality replacement part manufactured to meet OEM standards. Constructed from durable steel, it is designed to provide reliable service life under normal operating conditions. Warranty information is provided by the manufacturer and should be verified at the time of purchase.
