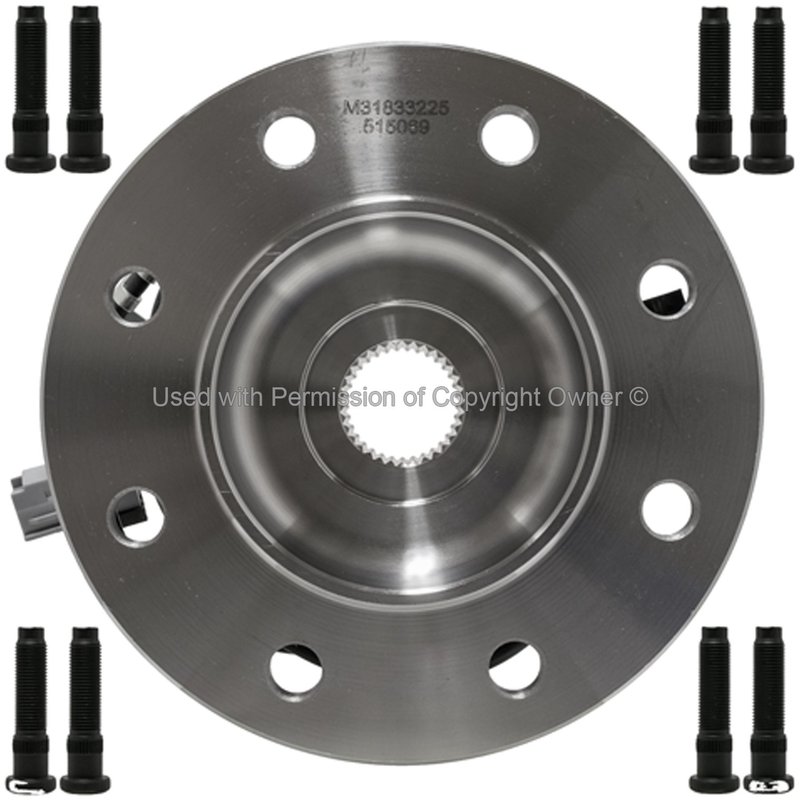

MPA Electrical WH515069 Wheel Bearing and Hub Assembly - Front Right

Reliable Wheel Bearing and Hub Assembly for Dodge Ram 3500

The MPA Electrical WH515069 wheel bearing and hub assembly is designed specifically for Dodge Ram 3500 models. This new steel assembly includes an integrated ABS sensor and flange, ensuring precise fitment and reliable performance for your vehicle's driveline system.

• 33 spline quantity for secure axle engagement
• Includes square flange with 4 bolt holes
• Flange bolt hole diameter: 5.23 mm
• Flange diameter: 8.19 inches with 2.69 inch offset
• Equipped with an anti-lock braking system (ABS) sensor
• ABS sensor included for accurate wheel speed monitoring
• Includes gasket or seal for proper sealing
• 8 stud quantity for mounting stability
• Hub pilot diameter of 4.47 inches
• Constructed from durable steel material
• Product condition: New

Detailed Product Description

The MPA Electrical WH515069 wheel bearing and hub assembly is engineered to meet the specific requirements of the Dodge Ram 3500. Featuring a 33 spline count, this assembly ensures a secure connection to the axle shaft. The included square flange with four bolt holes and an 8.19-inch diameter provides a stable mounting surface. The flange offset of 2.69 inches is designed to maintain proper alignment within the driveline system.

This assembly also integrates an anti-lock braking system (ABS) sensor, which is essential for modern vehicle safety and braking performance. The ABS sensor included with the hub assembly allows for accurate wheel speed detection, contributing to the proper function of the vehicle's ABS system. Additionally, the product comes with a gasket or seal to prevent contaminants from entering the bearing area, enhancing durability.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 3500
• Resolves issues related to wheel noise or rough rotation
• Addresses ABS warning light activation due to faulty sensor or hub
• Fixes wheel play or looseness caused by bearing wear
• Prevents water and debris ingress with included gasket or seal

Installation Notes and Tips

Ensure compatibility with your Dodge Ram 3500 before installation by verifying part number WH515069. The assembly is not greaseable, so no additional lubrication is required during installation. Proper torque specifications should be followed for the 8 mounting studs and 4 flange bolts to maintain secure fitment. Since the wiring harness is not included, reuse the existing ABS sensor wiring harness from the vehicle.

Quality Assurance and Warranty

This MPA Electrical wheel bearing and hub assembly is supplied new and constructed from high-quality steel for durability and long service life. It includes an ABS sensor and gasket to meet OEM standards. Warranty information is available from the manufacturer to cover defects in materials and workmanship.
