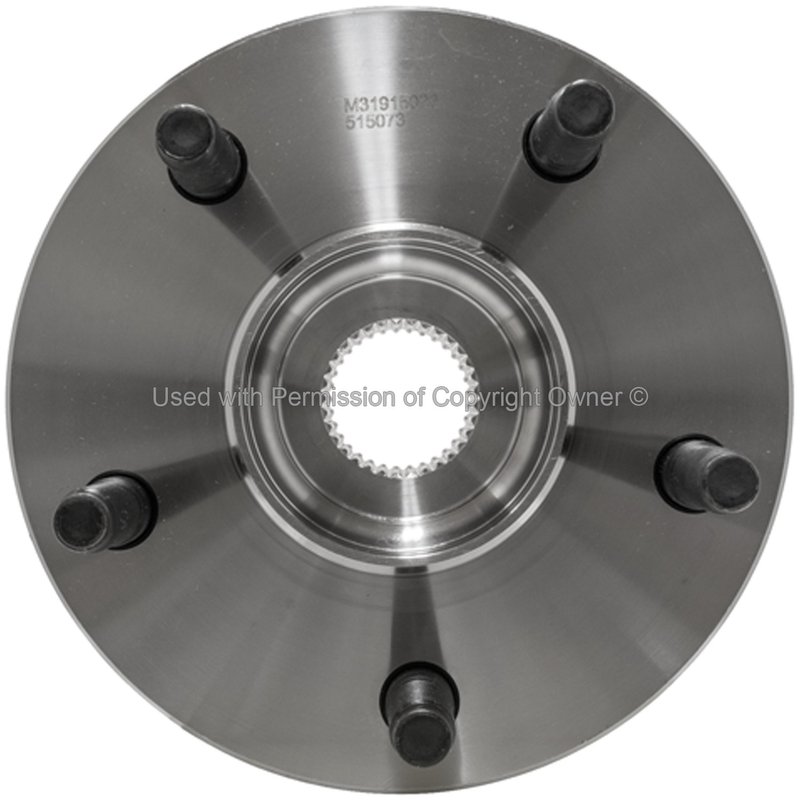

MPA Electrical WH515073 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Dodge Ram 1500

The MPA Electrical WH515073 wheel bearing and hub assembly is designed specifically for Dodge Ram 1500 models. This new steel assembly includes an integrated ABS sensor and flange, ensuring precise fitment and reliable performance for your vehicle's driveline system.

Key Features of MPA Electrical WH515073

• 33 spline quantity for secure axle engagement
• Includes a triangle-shaped flange with 3 bolt holes
• Flange bolt hole diameter measures 4.95 mm
• Flange diameter of 7.205 inches with a 1.84-inch flange offset
• Equipped with an anti-lock braking system (ABS) sensor
• ABS sensor included for accurate wheel speed monitoring
• Five stud quantity for wheel mounting
• Hub pilot diameter of 3.54 inches for precise alignment
• Steel construction for durability and strength
• Gasket or seal included to maintain proper sealing
• Non-greaseable design for maintenance-free operation

Detailed Product Description

The MPA Electrical WH515073 wheel bearing and hub assembly is engineered to meet the specific requirements of Dodge Ram 1500 trucks. Constructed from durable steel, this assembly features a 33-spline axle interface that ensures a secure connection to the drivetrain. The included triangle-shaped flange with three bolt holes and a flange diameter of 7.205 inches provides a stable mounting surface for the wheel. The flange offset of 1.84 inches is designed to maintain proper wheel positioning and alignment.

Equipped with an integrated ABS sensor, this hub assembly supports the vehicle's anti-lock braking system by providing accurate wheel speed data. The ABS sensor is included and ready for installation, eliminating the need for additional components. The assembly also comes with a gasket or seal to prevent contaminants from entering the bearing area, enhancing longevity and performance.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 1500
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function to prevent braking issues
• Fixes wheel alignment problems related to flange or hub damage
• Addresses grease leakage or seal failure in the hub area

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and stud quantity match the vehicle specifications. Since this assembly is non-greaseable, no additional lubrication is required during installation. Carefully connect the ABS sensor wiring to maintain proper system function. Use the included gasket or seal to prevent contamination and ensure a tight fit.

Quality Assurance and Warranty

This MPA Electrical WH515073 wheel bearing and hub assembly is a new, high-quality replacement part manufactured to meet OEM standards. Constructed from steel for durability, it is designed to provide reliable performance for Dodge Ram 1500 vehicles. Warranty information is available from the manufacturer to cover defects in materials and workmanship.
