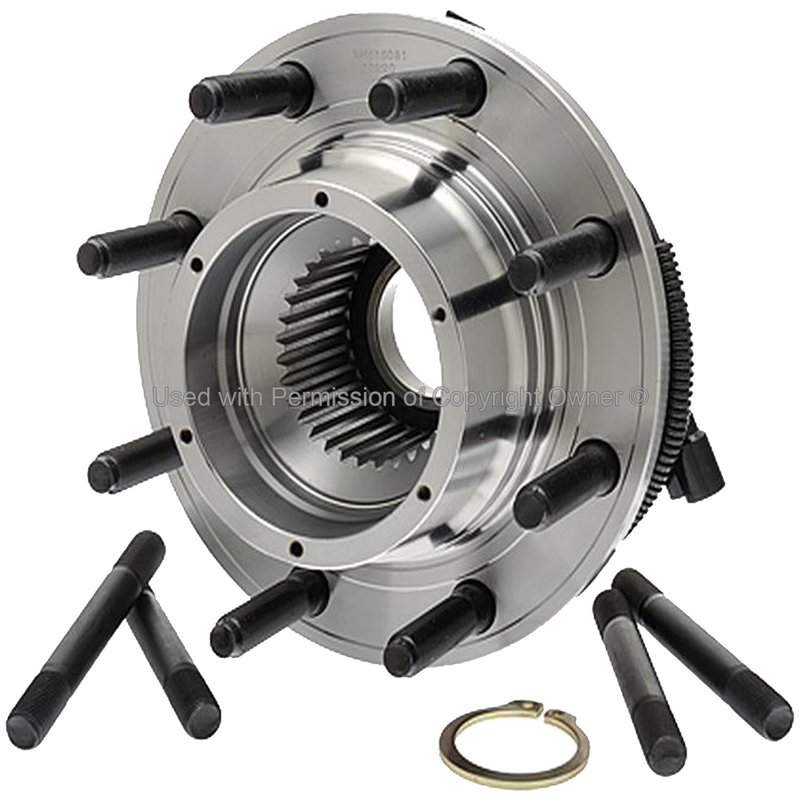

MPA Electrical WH515081 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Ford Super Duty Trucks

The MPA Electrical WH515081 wheel bearing and hub assembly is engineered for Ford F-250 Super Duty and F-350 Super Duty models. Designed to maintain optimal driveline performance, this new steel hub assembly includes an integrated ABS sensor to support your vehicle's anti-lock braking system.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• 32 spline count for precise fitment
• Includes square flange with 4 bolt holes (6.5 mm diameter)
• Equipped with ABS sensor and anti-lock braking system type sensor
• Flange diameter of 8.0 inches with 1.81 inch flange offset
• Includes gasket or seal for secure installation
• 8 wheel studs sized M14 x 1.5
• Constructed from durable steel material

Product Details and Specifications

The WH515081 wheel bearing and hub assembly from MPA Electrical is a new, steel-constructed component designed specifically for Ford Super Duty trucks. It features a 32-spline hub pilot diameter of 5.51 inches, ensuring a precise and secure fit. The square flange design includes four bolt holes with a diameter of 6.5 mm, supporting an 8.0-inch flange diameter and a flange offset of 1.81 inches. This assembly is equipped with an anti-lock braking system sensor, which is included to maintain proper ABS functionality. The product is not greaseable but comes with a gasket or seal to prevent contamination and ensure longevity. Eight M14 x 1.5 wheel studs provide secure wheel mounting.

Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford F-250 Super Duty and F-350 Super Duty trucks
• Restores proper ABS sensor function to maintain braking safety
• Eliminates wheel noise and vibration caused by faulty bearings
• Prevents wheel wobble and improves vehicle stability
• Addresses flange or stud damage affecting wheel mounting integrity

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number WH515081 matches your vehicle’s requirements. Clean the mounting surface thoroughly and inspect the axle shaft splines for wear. Use the included gasket or seal to prevent contamination. Torque flange bolts and wheel studs to manufacturer specifications. Since this assembly is not greaseable, avoid introducing grease during installation to maintain proper function.

Quality Assurance and Warranty

MPA Electrical manufactures the WH515081 wheel bearing and hub assembly to meet OEM standards for fit and function. This new steel assembly is designed for durability and reliable performance in demanding conditions. While specific warranty details are not provided, MPA Electrical products typically come with a limited warranty against defects in materials and workmanship. Consult your supplier for exact warranty terms.
