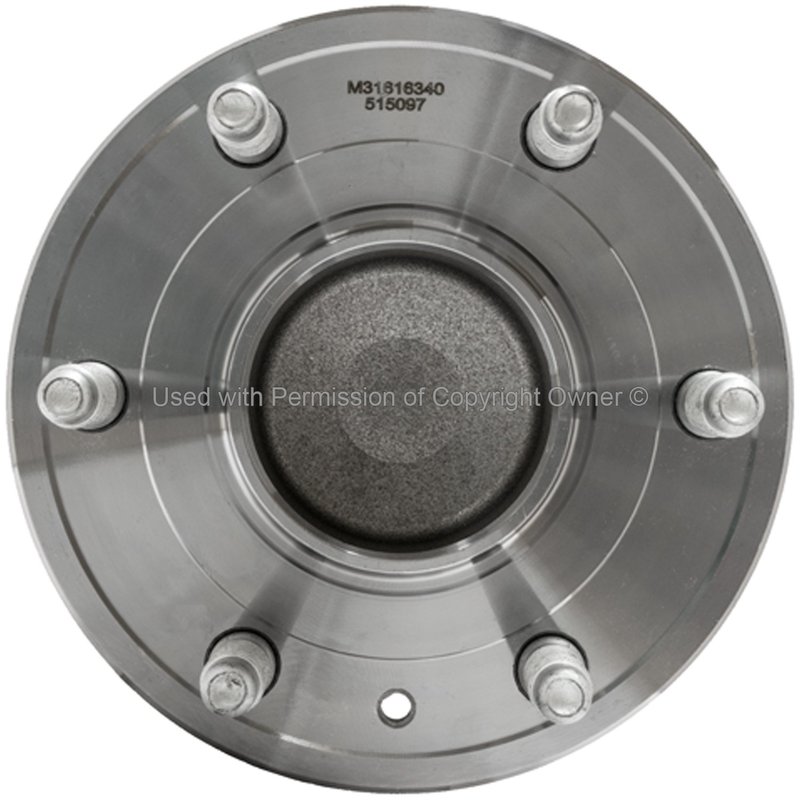

MPA Electrical WH515097 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for GM Trucks and SUVs

The MPA Electrical WH515097 wheel bearing and hub assembly is designed to provide dependable performance for select Cadillac, Chevrolet, and GMC vehicles. Engineered with a steel construction and integrated ABS sensor, this assembly ensures precise fitment and reliable operation for models like the Chevrolet Silverado 1500 and GMC Sierra 1500.

• Includes flange with a triangular shape and 3 bolt holes
• Flange diameter measures 7.049 inches with a 1.967-inch offset
• Equipped with an anti-lock braking system (ABS) sensor for enhanced safety
• Comes with gasket or seal included for proper sealing
• Features 6 wheel studs sized M14 x 1.5 for secure wheel attachment
• Hub pilot diameter of 3.91 inches ensures accurate alignment
• New steel construction designed for durability and strength

Product Details and Specifications

The WH515097 wheel bearing and hub assembly by MPA Electrical is crafted from steel to withstand the rigors of daily driving and heavy-duty use. Its flange includes three bolt holes arranged in a triangular pattern, with a precise bolt hole diameter of 4.963 mm. The flange diameter of 7.049 inches and offset of 1.967 inches are engineered to match factory specifications for a secure fit. This assembly is equipped with an integrated ABS sensor, which is included to maintain proper anti-lock braking system functionality on compatible vehicles. The product is not greaseable, but it comes with a gasket or seal to ensure proper protection against contaminants. Six M14 x 1.5 wheel studs provide a strong and reliable connection to the wheel hub.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with a range of GM trucks and SUVs, including:

• Cadillac Escalade and Escalade ESV
• Chevrolet Avalanche, Silverado 1500, Suburban 1500, and Tahoe
• GMC Sierra 1500, Cheyenne, Yukon, and Yukon XL 1500

It is designed to replace worn or damaged wheel bearing and hub assemblies on these models, restoring proper wheel alignment and ABS sensor functionality.

Common Issues Addressed by This Assembly

• Eliminates wheel bearing noise and roughness
• Restores proper ABS sensor operation to prevent warning lights
• Corrects wheel hub play and vibration issues
• Prevents premature tire wear caused by hub misalignment
• Ensures secure wheel mounting with factory-spec studs

Installation Notes and Tips

Installation of the MPA Electrical WH515097 wheel bearing and hub assembly requires proper tools and mechanical knowledge. Ensure the vehicle is safely lifted and supported before removal of the old assembly. Verify that the flange bolt holes and wheel studs align correctly with the vehicle hub. Since this assembly includes an ABS sensor, carefully connect the sensor wiring to maintain system functionality. The product does not include a wiring harness, so reuse the existing harness or source separately if needed. Use the included gasket or seal to prevent contamination and ensure a tight fit.

Quality Assurance and Warranty

MPA Electrical manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The product is new and constructed from durable steel materials to provide long-lasting service. While specific warranty details are not provided, MPA Electrical products typically come with manufacturer-backed quality assurance to support reliable operation in Cadillac, Chevrolet, and GMC vehicles.
