Home› Driveline and Axles > Hubs and Related Components› MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front
MPA Electrical WH515101 Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns

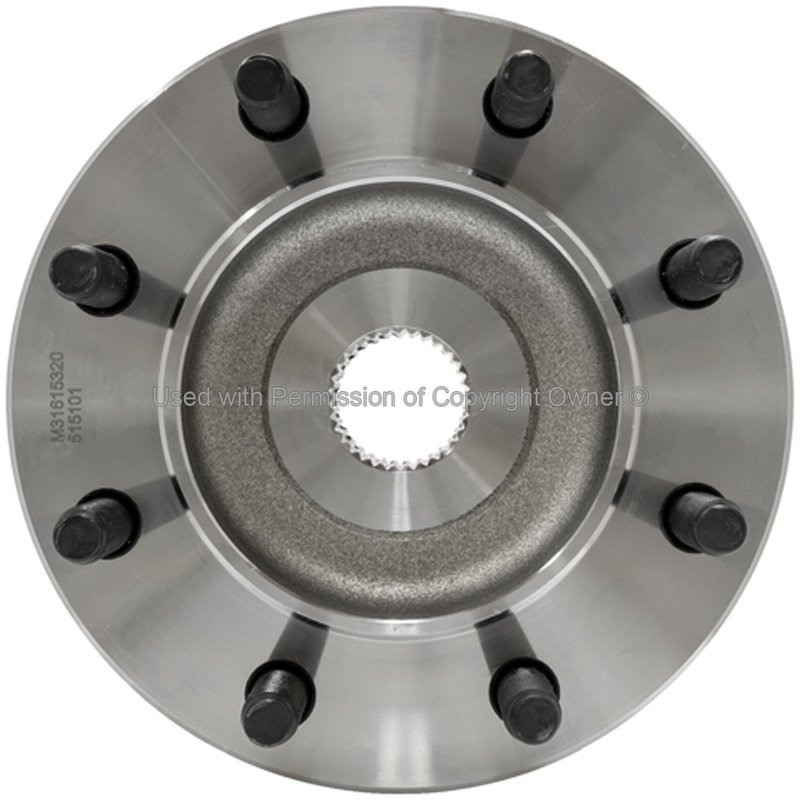

MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front - view 1
MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front - view 2
MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front - view 3
MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front - view 4
Part #: WH515101

MPA Electrical WH515101 Wheel Bearing and Hub Assembly - Front

Front
⚙️ 25 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$158.94Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Dodge, Ram 1500, Ram 2500, and Ram 3500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options

Reliable Wheel Bearing and Hub Assembly for Dodge Ram Trucks

The MPA Electrical WH515101 wheel bearing and hub assembly is engineered to meet the demands of Dodge Ram 1500, 2500, and 3500 models. Designed with precision, this new steel hub assembly includes an integrated anti-lock braking system (ABS) sensor to ensure optimal vehicle safety and performance.

  • Compatible with Dodge Ram 1500, 2500, and 3500
  • 33 spline quantity for secure fitment
  • Includes square flange with 4 bolt holes and 5.515-inch bolt hole diameter
  • Equipped with ABS sensor and anti-lock braking system type sensor included
  • Flange diameter of 8.067 inches and flange offset of 2.14 inches
  • Includes gasket or seal for proper installation
  • Constructed from durable steel material
  • 8 stud quantity for reliable wheel attachment
  • Non-greaseable design for maintenance-free operation
  • Hub pilot diameter of 4.48 inches for precise alignment

Detailed Product Description

The MPA Electrical WH515101 wheel bearing and hub assembly is a direct replacement part designed specifically for Dodge Ram 1500, 2500, and 3500 trucks. This assembly features a 33-spline design that ensures a secure connection to the axle shaft. The included square flange with four bolt holes and a 5.515-inch bolt hole diameter provides a stable mounting surface. The flange diameter measures 8.067 inches with a 2.14-inch offset, allowing for proper wheel positioning and alignment.

Equipped with an integrated anti-lock braking system sensor, this hub assembly supports the vehicle's ABS functionality, enhancing braking safety. The product also includes a gasket or seal to prevent contaminants from entering the bearing area, contributing to longer service life. Made from high-quality steel, the assembly offers durability and resistance to wear under demanding driving conditions. The 8-stud configuration ensures secure wheel attachment, while the non-greaseable design reduces maintenance requirements.

Common Applications and Problem Resolution

  • Replacement for worn or damaged wheel bearing and hub assemblies on Dodge Ram 1500, 2500, and 3500
  • Resolves wheel vibration or noise caused by bearing failure
  • Restores proper ABS sensor function to maintain braking system performance
  • Fixes wheel hub looseness or play affecting vehicle handling
  • Addresses seal leaks that allow dirt and moisture into the bearing area

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes align correctly with the vehicle hub mounting points. Handle the ABS sensor wiring carefully to avoid damage during installation. Since this assembly is non-greaseable, no additional lubrication is required. Always torque the flange bolts and wheel studs to manufacturer specifications for safe operation.

Quality Assurance and Warranty

The MPA Electrical WH515101 wheel bearing and hub assembly is manufactured to meet OEM standards for fit, form, and function. Each unit undergoes quality inspections to ensure reliability and durability. This product is sold new and backed by the manufacturer's warranty against defects in materials and workmanship, providing confidence in long-term performance.

BrandMPA Electrical
Part NumberWH515101
Spline Quantity33
Flange IncludedYes
Flange Bolt Hole Quantity4
Flange ShapeSquare
Anti Lock Braking System TypeSensor
Anti Lock Brake Sensor IncludedYes
Flange Bolt Hole Diameter5.515
Flange Offset2.14
Flange Diameter8.067
Flange Diameter Inch8.067
Gasket or Seal IncludedYes
GreaseableNo
Hub Pilot Diameter Inch4.48
MaterialSteel
Product ConditionNew
Spline Quantity33
Stud Quantity8
Wiring Harness IncludedNo

This part fits 25 vehicles. Search below:

YearMakeModelBody TypeDrive TypeLitersCylindersPositionNotes
2008DodgeRam 1500Extended Crew Cab Pickup4WD5.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 1500Extended Crew Cab Pickup4WD4.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 1500Extended Crew Cab Pickup4WD3.7LV6FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 25004WD6.7LL6FrontWheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 25004WD5.9LL6FrontWheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 25004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 25004WD4.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2008DodgeRam 35004WD6.7LL6FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2008DodgeRam 35004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 1500Extended Crew Cab Pickup4WD5.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 1500Extended Crew Cab Pickup4WD4.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 25004WD6.7LL6FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 25004WD5.9LL6FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 25004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 25004WD4.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 35004WD6.7LL6FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 35004WD5.9LL6FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2007DodgeRam 35004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2006DodgeRam 1500Extended Crew Cab Pickup4WD5.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2006DodgeRam 1500Extended Crew Cab Pickup4WD4.7LV8FrontMega Cab w/ 8 Wheel Studs; Wheel Hub Assembly; Axle Nut Torque Spec: Install the half shaft nut and tighten to 251 Nm (185 ft. lbs.)
2006DodgeRam 25004WD5.9LL6FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2006DodgeRam 25004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2006DodgeRam 25004WD4.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec:179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2006DodgeRam 35004WD5.9LL6FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)
2006DodgeRam 35004WD5.7LV8FrontWheel Hub Assembly; Axle Nut Torque Spec: 179 Nm (132 ft. lbs.) Beginning Torque, then Rotate 5 to 10 Times With a Final Torque of 356 Nm (263 ft. lbs.)

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

5179955AA

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
