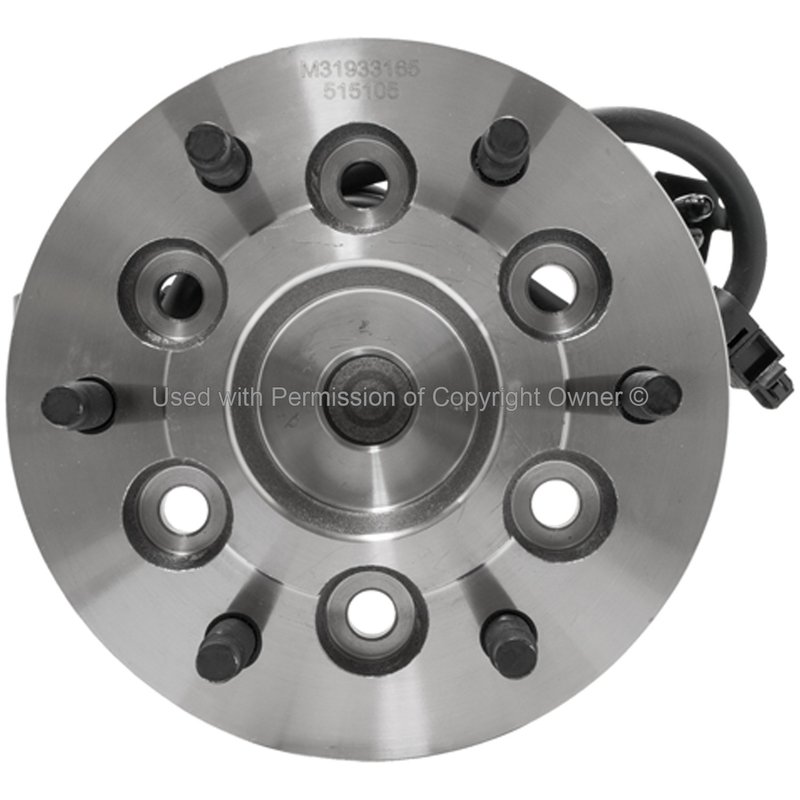

MPA Electrical WH515105 Wheel Bearing and Hub Assembly - Front Right

Reliable Wheel Bearing and Hub Assembly for Chevrolet, GMC, and Isuzu

The MPA Electrical WH515105 wheel bearing and hub assembly is designed to provide dependable performance for select Chevrolet, GMC, and Isuzu models. Engineered with precision, this new steel hub assembly includes an integrated ABS sensor and flange to ensure proper fit and function.

Key Features of MPA Electrical WH515105

• Includes flange with a rectangular shape and 4 bolt holes for secure mounting
• Equipped with an anti-lock braking system (ABS) sensor for enhanced safety
• Flange diameter measures 7.245 inches with a 2.645-inch flange offset
• Hub pilot diameter of 3.34 inches ensures accurate alignment
• Constructed from durable steel material for long-lasting use
• Features 6 wheel studs sized M12 x 1.5 for compatibility with OEM wheels
• Includes gasket or seal to maintain proper sealing and prevent contamination

Detailed Product Description

The MPA Electrical WH515105 wheel bearing and hub assembly is a direct replacement part designed specifically for Chevrolet Canyon, GMC Colorado, and Isuzu i-280, i-290, and i-370 models. This assembly comes with a flange included, featuring a rectangular shape and four bolt holes to match factory specifications. The integrated ABS sensor supports the vehicle’s anti-lock braking system, helping maintain wheel speed monitoring and braking performance. Made from high-quality steel, this hub assembly offers durability and resistance to wear. The flange diameter of 7.245 inches and offset of 2.645 inches ensure proper fitment, while the 6 M12 x 1.5 wheel studs provide secure wheel attachment. Additionally, the included gasket or seal helps protect the bearing from dirt and moisture, extending the service life of the component.

Common Applications and Issues Addressed

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Canyon and GMC Colorado
• Restores proper ABS sensor function to prevent warning lights and braking issues
• Eliminates wheel noise or vibration caused by faulty bearings
• Corrects wheel alignment problems related to hub flange wear or damage
• Prevents grease leakage and contamination with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud pattern match the vehicle specifications. Handle the ABS sensor wiring carefully to avoid damage during installation. Clean the mounting surface thoroughly before installing the new gasket or seal to ensure a proper seal. Torque all bolts and studs to manufacturer specifications to maintain safety and performance.

Quality Assurance and Warranty

The MPA Electrical WH515105 wheel bearing and hub assembly is supplied new and manufactured to meet OEM standards for fit and function. Constructed from steel and including an ABS sensor, flange, and seal, this assembly is built to provide reliable service. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality controls to ensure durability and performance.
